Realtek RTL9201R Firmware 1.32.7

Stasiz
Offline
Poster 2
Enregistré
Posts: 5
Thanks: 1

Re: Realtek RTL9201R Firmware 1.32.7

1 day 15 hours ago

#4557

@Shonk

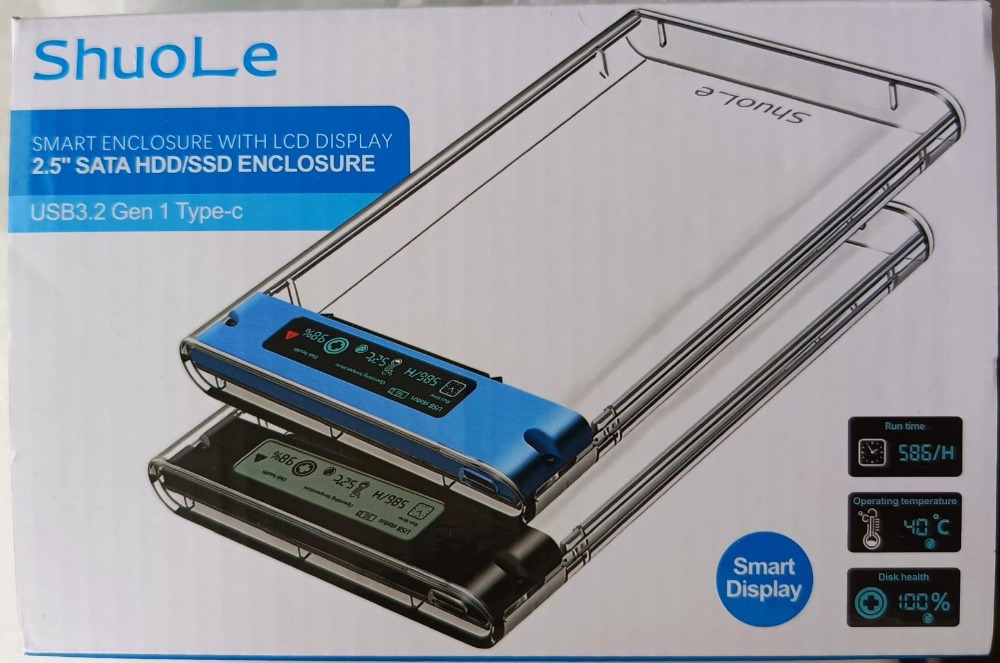

For collection. SPI dump 1.33.3 from ShuoLe enclosure.

Code:

**************************************************************
Device : [Port6] : ShuoLe Super SSD #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x0000
MANUFACTURE : "ShuoLe "
PRODUCT : "ShuoLe  Super SSD"
SERIAL : "012345678950"
SCSI_PRODUCT : "Super SSD       "
SCSI_VENDOR : "ShuoLe  "
USB_SELF_PWR : n/a
DISK_HOTPLUG : 0x03
LED : n/a
PINMUX1 : n/a
PINMUX2 : n/a
U2_MAXPWR : n/a
U3_MAXPWR : n/a
ASPMDIS : n/a
PCIE_REFCLK : n/a
DISK_IPS_THRES : n/a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x64
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : 0x0000e100
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : 0x01
RAID_CFG : n/a

Boot Mode : Flash
FW Ver : 1.33.3
FW Build Date : 2023.09.27
IC Pkg Type : SATA
UUID : n/a

Disconn_ForceUSB2 : false

mega.nz/file/JQhRRLxA#ZE0Qzr15gpMYP8Hv6W...U134Uyr9l408NnG0n4vQ

The following user(s) said Thank You: Shonk

Please Anmelden or Create an account to join the conversation.

Shonk
Topic Author
Away
The Best Poster
Enregistré
Posts: 183
Thanks: 74

Re: Realtek RTL9201R Firmware 1.32.7

1 day 13 hours ago

#4558

thanks

did you remove the chip to dump it and confirm the dump was good with multiple dumps?

I found dumping in situ resulted in random corruption every dump was slightly different
so had to remove the chip
