ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

  • admin
  • admin's Avatar Away Topic Author
  • Admin
  • Admin
    Administrateur
  • Posts: 660
  • Thanks: 346

Replied by admin on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 month 2 days ago #3281
Bonjour étrange qu’il soit si vieux le firmware sinon vous avez la possibilité de revenir à l’origine avec cette manipulation sinon. pour mettre à jour avec le fichier de configuration d’origine ou par défaut celui du paquet

Station-Drivers - Firmware recovery from USB 3.2/NVMe enclosures


Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Last Edit:1 month 2 days ago by admin
Last edit: 1 month 2 days ago by admin.

Please Anmelden or Create an account to join the conversation.

Replied by Calbrac on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 3 weeks 3 days ago #3341

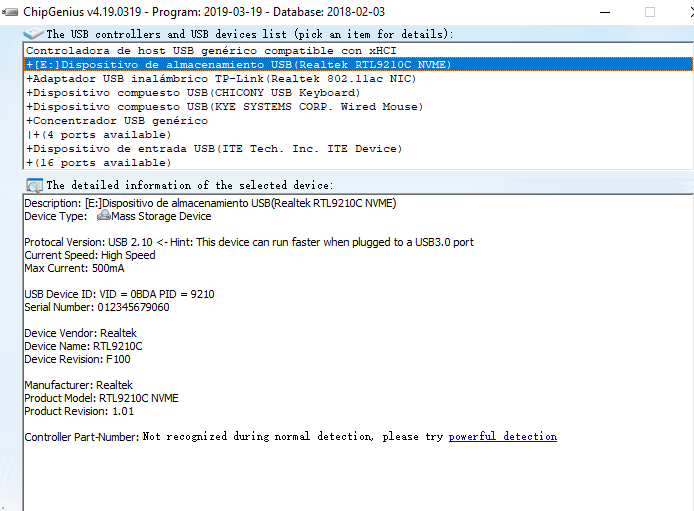

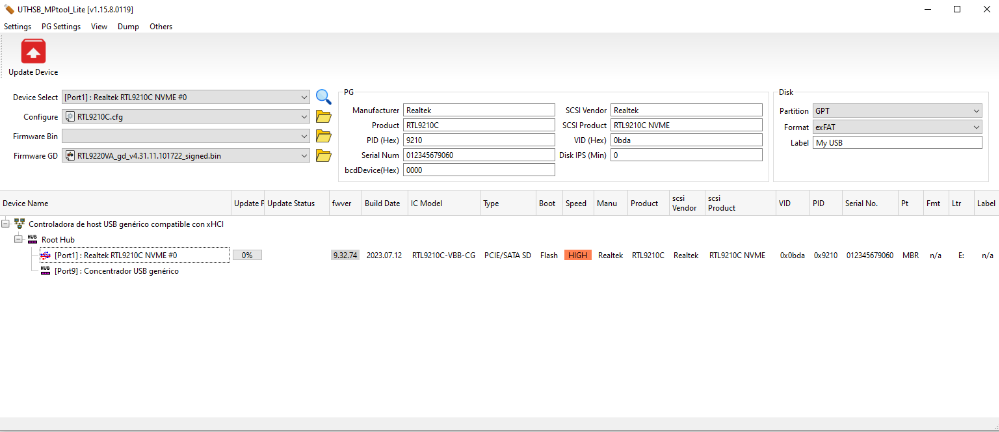

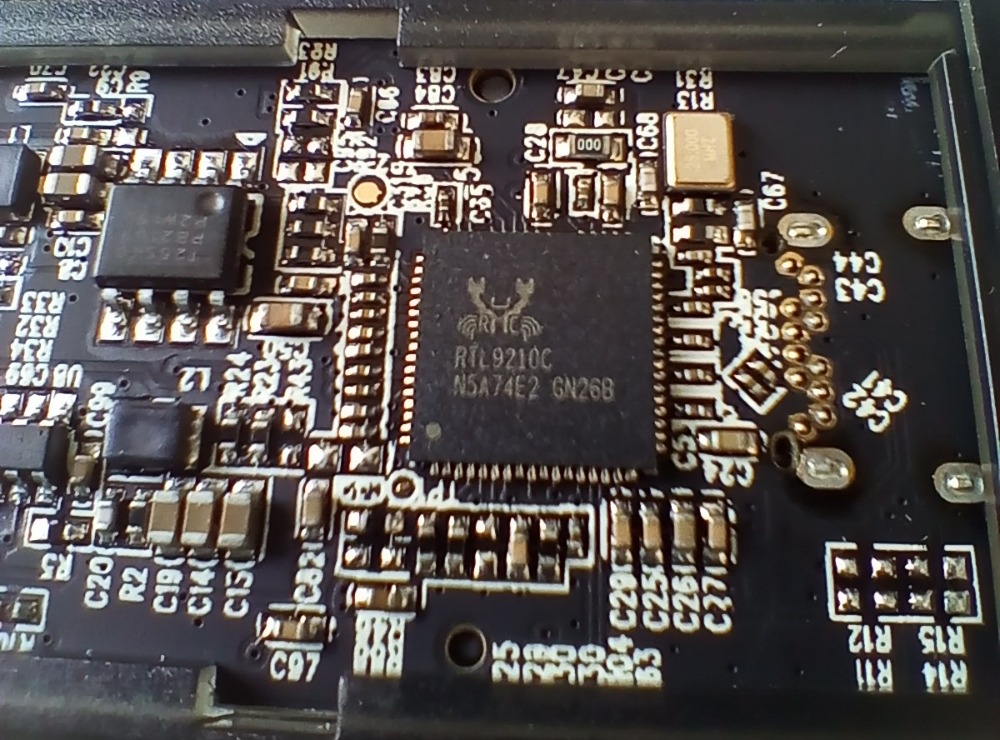

Hi everyone, I would like to know if anyone has had the experience or encountered the RTL9210C driver. I have read the entire post from top to bottom and I can't find any reference to it. I have also downloaded all the available firmwares without being able to find the missing .bin. I have also had no luck searching the web. Maybe it is a re-written or fake chip?

I have started this search because I can't get it to connect at a speed other than USB2.1. I have already changed all the cables (I even bought a Lenovo cable certified as 10mbps) and I have tried on several computers without success.

I would appreciate any information in advance. Thanks



by Calbrac
  • Please Anmelden or Create an account to join the conversation.

    • admin
    • admin's Avatar Away Topic Author
    • Admin
    • Admin
      Administrateur
    • Posts: 660
    • Thanks: 346

    Replied by admin on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

    Posted 3 weeks 3 days ago #3346
    Hi it is true the RTL9210C version is less frequent, the most frequent is the B version


    Configuration
    Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

    by admin

    Please Anmelden or Create an account to join the conversation.

    Replied by D-One on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

    Posted 2 weeks 1 day ago #3394
    To enable things from the firmware .cfg do we need to remove the semicolon? Is it the symbol for a code comment?

    For example to enable 10min idle do I have to remove the ";" from the 2nd line below?

    ;10 minutes of idle time will disable pcie power
    ;PCIE_PWRCUT_THRES = 0xa

    Cheers
    by D-One

    Please Anmelden or Create an account to join the conversation.

    Yes, you need to remove the semicolon
