NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
- Laroldski
- Offline
- Best Poster
-
Enregistré
- Posts: 54
- Thanks: 6
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
2 weeks 3 days ago - 2 weeks 3 days ago
Have you tried selecting the files with by clicking on the folders that are circled in red in the picture that you included.
I have had to try installing older firmware a few times with the RTL9210 controllers before,for whatever reason they can be a real pain when they want to be and then after installing an older firmware a lot of the time the firmware that wouldn't load the files or even let me select them now would after installing older firmware.
station-drivers.com/index.php/en/compone...1.120722/lang,en-gb/
station-drivers.com/index.php/en/compone...7.191023/lang,en-gb/
Also you can try contacting this seller on aliexpress they are the JEYI company and you can try asking them for the proper firmware for your device as well.
www.aliexpress.com/item/1005006754982743...n.123.7bb71802ePiA1V
I have had to try installing older firmware a few times with the RTL9210 controllers before,for whatever reason they can be a real pain when they want to be and then after installing an older firmware a lot of the time the firmware that wouldn't load the files or even let me select them now would after installing older firmware.
station-drivers.com/index.php/en/compone...1.120722/lang,en-gb/
station-drivers.com/index.php/en/compone...7.191023/lang,en-gb/
Also you can try contacting this seller on aliexpress they are the JEYI company and you can try asking them for the proper firmware for your device as well.
www.aliexpress.com/item/1005006754982743...n.123.7bb71802ePiA1V
Last edit: 2 weeks 3 days ago by Laroldski.
Please Anmelden or Create an account to join the conversation.
- sdefrwggerg
- Offline
- Best Poster
-
Enregistré
- Posts: 32
- Thanks: 21
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
2 weeks 1 day ago - 2 weeks 1 day ago
Last edit: 2 weeks 1 day ago by sdefrwggerg.
The following user(s) said Thank You: fhloston
Please Anmelden or Create an account to join the conversation.
- AOnurY
- Offline
- Poster
-
Enregistré
- Posts: 6
- Thanks: 3
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 week 2 days ago

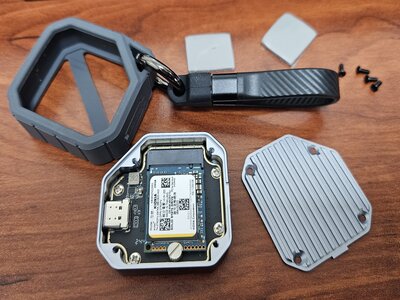

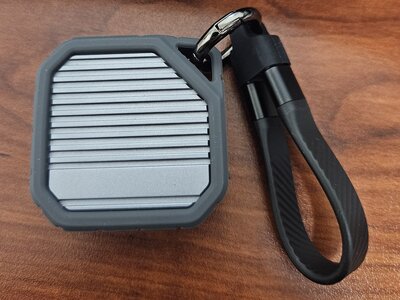

Hi guys, I just bought a new NVMe enclosure from Aliexpress. It's the tiny 2230 ones. The same box is sold under several different brand names. Mine is Colorii and I believe it's the original manufacturer. It has an RTL9210 controller. The firmware is extremely up to date, 1.33.98.
tr.aliexpress.com/item/1005006172693348....gatewayAdapt=glo2tur
**************************************************************
Device : [Port1] : Realtek RTL9210 NVME #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "Realtek"
PRODUCT : "RTL9210"
SERIAL : "012345679027"
SCSI_PRODUCT : "RTL9210 NVME "
SCSI_VENDOR : "n/a"
USB_SELF_PWR : n/a
DISK_HOTPLUG : 0x00
LED : 0x01
PINMUX1 : 0x00000000
PINMUX2 : 0x00000000
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x70
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x01
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 07 02 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : 0x03
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : 0x01
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : 0x01
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a
Boot Mode : Flash
FW Ver : 1.33.98
FW Build Date : 2024.09.03
IC Pkg Type : PCIE
UUID : n/a
Disconn_ForceUSB2 : false
tr.aliexpress.com/item/1005006172693348....gatewayAdapt=glo2tur
**************************************************************
Device : [Port1] : Realtek RTL9210 NVME #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "Realtek"
PRODUCT : "RTL9210"
SERIAL : "012345679027"
SCSI_PRODUCT : "RTL9210 NVME "
SCSI_VENDOR : "n/a"
USB_SELF_PWR : n/a
DISK_HOTPLUG : 0x00
LED : 0x01
PINMUX1 : 0x00000000
PINMUX2 : 0x00000000
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x70
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x01
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 07 02 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : 0x03
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : 0x01
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : 0x01
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a
Boot Mode : Flash
FW Ver : 1.33.98
FW Build Date : 2024.09.03
IC Pkg Type : PCIE
UUID : n/a
Disconn_ForceUSB2 : false
The following user(s) said Thank You: Stasiz
Please Anmelden or Create an account to join the conversation.
- admin
- Topic Author
- Offline
- Admin
-
Administrateur
- Posts: 762
- Thanks: 380
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 week 1 day ago
Hi can you make a backup of the firmware?
Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060, Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Please Anmelden or Create an account to join the conversation.
- AOnurY
- Offline
- Poster
-
Enregistré
- Posts: 6
- Thanks: 3
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 week 1 day ago
Of course, but I guess Mptool Lite can't do this job. I couldn't find the full version. If you help me, I can fix it. By the way, I have a question. The controller of this device is a simply 9210, can I use its firmware for 9210b-cg?
