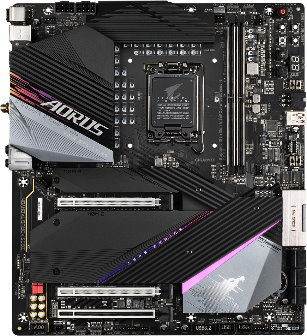

Information__________________
  • Format: ATX
  • Chipset: Intel Z690 12e génération
  • Code Name: Alder Lake
  • Socket: 1700
  • Cpus: Intel Core I3/5/7/9
  • Audio (1): Realtek HDA ALC1220+ESS ES9018
  • Sata (1): Intel Z690 Sata III
  • Graphique: Intel Xe UHD Graphics
  • USB 3.x (1): Intel Z690 USB 3.1
  • Reseau (1): Intel I225V (2.5Gb)
  • Wireless: Intel AX210 Wifi AX
  • Bluetooth: Intel AX210 Wifi AX
  • Thunderbolt: Intel
  • Lien Constructeur: https://www.gigabyte.com

















Bios___________________________________
Version Descriptif Date DL
F29f

Checksum : E0B8
Update microcode 0x129 to address sporadic Vcore elevation behavior announced by Intel
Introduce the "Intel Default Settings" and enabled as default, user needs to disable it first to use GIGABYTE PerfDrive profiles
Update microcode 0x125 to ensure eTVB operation normally

07/08/24
F29e

Checksum : 938B
Introduce the "Intel Default Settings" and enabled as default, user needs to disable it first to use GIGABYTE PerfDrive profiles.
Update microcode 0x125 to ensure eTVB operation normally.

17/07/24
F28

Checksum : 0DAA
Addresses potential UEFI vulnerabilities. (LogoFAIL)
Add "GNA (Gaussian & Neural Accelerator)" Option
Add "SPD Write Disable" Option

25/12/23
F27

Checksum : 3137
Follow Intel to upgrade Microcode CPUID ver. 0x11D
Introduction of new BIOS user interface for user-centered intuitive UX with quick access function
https://www.gigabyte.com/Press/News/2115

22/09/23
F26

Checksum : B020
Enable SPD write protect, help fixing DDR compatibility issue due to some module did not introduce JEDEC SPD write protection properly.

31/08/23

Drivers__________________________
CHIPSET Intel Chipset Device Software For Chipsets Series 600 (AlderLake)(?) 22/08/24
NC Version 10.1.19913.8607 Version 10.1.19913.8607 Version 10.1.19913.8607

CHIPSET Intel Dynamic Tuning Technology (DTT) for chipsets Series 600 (Alder Lake) 05/09/24
Download Download
NC NC Version 9.0.11703.48565 Version 9.0.11703.48565

CHIPSET Intel HID Event Filter for chipsets Series 600 (Alder Lake) 20/07/24
Download Download download
NC NC Version 2.2.2.10 Version 2.2.2.10

CHIPSET Intel Serial IO Drivers for chipsets Series 600 (Alder Lake) 12/13/14gen 26/07/24
Download Download Download
NC NC Version 30.100.2417.30 Version 30.100.2417.30

GPU Intel Xe UHD Graphics Drivers for chipsets Series 600 (Alder Lake) 27/09/24
download Download Download
NC NC Version 32.0.101.6078 WHQL Version 32.0.101.6078 WHQL
NC NC Version 32.0.101.6079 non WHQL Version 32.0.101.6079 non WHQL

CHIPSET Intel Management Engine Interface Drivers/Firmwares For Chipsets Series 600 (Alder Lake) 04/09/24
Download Download Download
Version 16.1.32.2418 Version 2432.6.33.0 Version 2432.6.33.0 Version 2432.6.33.0

CHIPSET Intel GNA Scoring Accelerator For Chipsets Series 600 (Alder Lake) 04/04/24
Download download Download
NA NA Version 3.05.00.1578 Version 3.05.00.1578

LAN Intel I225, I226-V, LM, Killer E3100, ... Gigabyte Ethernet (2.5Gbe) Controllers Drivers 24/08/24
Download Download Download
Miscellaneous Version 1.1.4.43 (29.3.1) Version 1.1.4.43 (29.3.1) Version 2.1.4.3 (29.3.1)

USB Intel Thunderbolt 4 Drivers For JHL8540 Controller 22/07/24
Download Download Download
NC NC Version 1.41.1420.0 Version 1.41.1420.0

AUDIO Realtek Generic Audio (HDA) or Manufacturer Audio (UAD) Drivers (For Gigabyte ALC-1200, ALC897, ... ) 10/07/24
Download download Download
NC NC Version 6.0.9689.1 (UAD) Version 6.0.9689.1 (UAD)
NC Version 6.0.9239.1 (HDA) Version 6.0.9239.1 (HDA) Version 6.0.9239.1 (HDA)

WLAN Intel Wireless & Bluetooth Drivers For AX210/AX211/AX1675/AX411/AX1690 01/10/24
Download Download Download
NC NC Version 23.80.1.3 Version 23.80.1.3
