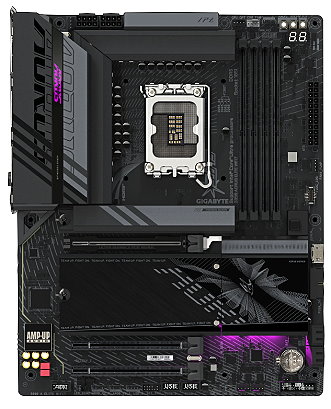

Station-Drivers - Gigabyte Z890 AORUS ELITE WIFI7

Details: Parent Category: Gigabyte; Category: Intel Z890 (Serie 800); Published: September 27, 2022; Last Updated: December 25, 2024

Information__________________

Format: ATX
Chipset: Intel Z890 15e génération
Nom de code: Arrow Lake
Socket: 1851
Memoires: DDR5
Cpus: Intel Core I3/5/7/9 (15e Gen)
Audio (1): Realtek HDA ALC1220
Sata (1): Intel Z890 Sata III
Graphique: Intel Xe UHD Graphics
USB 4.x (1): Intel Z890
Reseau (1): Realtek RTL8125BG (2.5Gb)
Reseau (2):
Thunderbolt: Intel Version 5
Wireless/Bluetooth: MediaTek Wi-Fi 7 MT7925
Lien officiel: https://www.gigabyte.com/

Bios___________________________________
Version	Descriptif	Date	DL
F10f	Checksum : 18E9 The BIOS contains massive code base update, please expect BIOS update time will be longer, do not interrupt BIOS update process Low Latency will be enabled automatically when XMP profile is applied Add 80 Port Display Mode option, now 80 port can display temp. info. in O.S. Incorporate Intel Planned Release 5 (PR5) ingredients Update processor microcode to c0662_00000114 Update RC code 0D.00.CC.50 Update Intel® HD Graphics GOP Version to 22.0.1057 Update Intel CSME version to 19.0.0.1854v2.2 Change Re-Size BAR Support & VT-d default values to "Enabled" Allow max voltage setting of CPU System Agent Voltage to be set to 1.35v Address potential OS hangup after first time driver installation (graphics related) Address DDR timing setting incorrectly displays as "0" when manually adjust value above 40	23/12/24
F10d	Checksum : 7EED Incorporate Intel Planned Release 4 (PR4) ingredients Update processor microcode to c0662_00000113 Update RC code 0D.00.C9.40 Update Intel® HD Graphics GOP Version to 22.0.1057 Update Intel CSME version to 19.0.0.1827 Change Re-Size BAR Support & VT-d default values to "Enabled" Allow max voltage setting of CPU System Agent Voltage to be set to 1.35v Address potential OS hangup after first time driver installation (graphics related) Address DDR timing setting incorrectly displays as "0" when manually adjust value above 40	30/10/24
F9	Checksum : DCEC Improve memory performance and compatibility Add GIGABYTE AI PerfDrive support	18/10/24

Drivers_________________________________
Information ! For optimal stability and performance under Windows, please regularly update your drivers below
CHIPSET	Intel Chipset Device Software For Chipsets Meteor Lake-S/Arrow Lake-S (Serie 800) (?)				21/12/24

NC		Version 10.1.20020.8623	Version 10.1.20020.8623	Version 10.1.20020.8623

CHIPSET	Intel Dynamic Tuning Technology (DTT) For Chipsets Meteor Lake-S/Arrow Lake-S (Serie 800)				28/11/24

NC		NC	Version 9.0.11903.52187	Version 9.0.11903.52187

GPU	Intel Xe UHD Graphics For Chipsets Meteor Lake-S/Arrow Lake-S (Serie 800)				14/12/24

NC		NC	Version 32.0.101.6325 WHQL	Version 32.0.101.6325 WHQL

CHIPSET	Intel GNA Scoring Accelerator For Chipsets Meteor Lake-S/Arrow Lake-S (Serie 800)				04/04/24

NA		NA	Version 3.05.00.1578	Version 3.05.00.1578

CHIPSET	Intel HID Event Filter For Chipsets Meteor Lake-S/Arrow Lake-S (Serie 800)				06/11/24

NC		NC	Version 2.2.2.11	Version 2.2.2.11

CHIPSET	Intel Management Engine Interface (MEI) For Chipsets Meteor Lake-S/Arrow Lake-S (Serie 800)				28/11/24

Version 19.0.0.1753		Version 2432.6.33.0	Version 2441.6.4.0	Version 2441.6.4.0

SATA/RAID	Intel Rapid Storage Technology (RST) For Chipsets Meteor Lake-S/Arrow Lake-S (Serie 800)				28/11/24

NC		Version 20.2.1.1016.3	Version 20.2.1.1016.3	Version 20.2.1.1016.3

CHIPSET	Intel Serial IO For Chipsets Meteor Lake-S/Arrow Lake-S (Serie 800)				17/07/24

NC		NC	Version 30.100.2419.23	Version 30.100.2419.23

AUDIO	Realtek Generic Audio (HDA) or Manufacturer Audio (UAD) (For Gigabyte)				23/10/24

NC		NC	Version 6.0.9733.1 (UAD)	Version 6.0.9733.1 (UAD)
NC		Version 6.0.9239.1 (HDA)	Version 6.0.9239.1 (HDA)	Version 6.0.9239.1 (HDA)

LAN	Realtek RTL8125BG, Intel Killer E3100G, ... Gigabit LAN (2.5Gbe)				24/12/24

NC		Version 8.088.1122.2021	Version 10.073.0813.2024	Version 11.21.09032024

WLAN	Mediatek MT7925/MT7927 Wireless Wi-Fi 7 & Bluetooth Drivers				24/12/24

NC		NC	Version 5.4.0.2974	Version 5.4.0.2974

Utilities__________________________
Software Information utility on your Cpus, Memories, SSD, Hard Disk, Network, Wireless, ...
7Zip (Freeware) Extract your ZIP, RAR, AR, ARJ, CAB, CHM, CPIO, CramFS, DMG, EXT, FAT, GPT, HFS, .... Cpu-Z (Freeware) everything you need to know about your CPU, memories, etc. AIDA64 (Trial) everything you need to know about your IT equipment HWInfo (Freeware) everything you need to know about your IT equipment CrystalDiskMark (Freeware) Test the performance of your drives Speedtest (Freeware) Test the performance of your internet connection Adwcleaner (Freeware) Anti malware, Spyware, Virus, ... MEAnalyzer (Freeware) Verifying Intel Management firmware HDCleaner (Freeware) Complete cleaning for your Windows PC

LAN	Realtek RTL8125BG, RTL8126, ... Gigabit LAN (10/100/1000/2.5/5Gbps) Dragon Software Utility				01/05/24

NC		NC	Version 6.10.3301.2	Version 6.10.3301.2

CPU	Intel PPM (Processor Power Management) for chipsets Series 800 (Arrow Lake)				10/11/24

NC		NC	NC	Version 1007

CPU	Intel Extreme Tuning Utility (Intel® XTU) (Freeeware)Tuning, information, optimization, …				08/12/24

NC		NC	Version 10.0.1.18	Version 10.0.1.18

CPU	Intel Converged Security and Management Engine detection of the security vulnerabilities				17/12/24

NC		Version 11.0.4.0	Version 11.0.4.0	Version 11.0.4.0
