NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
- admin
-
Auteur du sujet
- Absent
- Admin
-
Administrateur
- Messages : 755
- Thanks: 379
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
il y a 1 an 10 mois
Hi, No sorry
Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060, Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Connexion ou Créer un compte pour participer à la conversation.
- sdefrwggerg
-
- Hors Ligne
- Best Poster
-
Enregistré
- Messages : 31
- Thanks: 20
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
il y a 1 an 10 mois - il y a 1 an 10 mois
No Changelog but new Firmware is available v1.30.21.070622
New firmware for RTL9210B - v1.30.21.070622 / RTL9210 A 1.29.8 with Original Orico Config and many moore

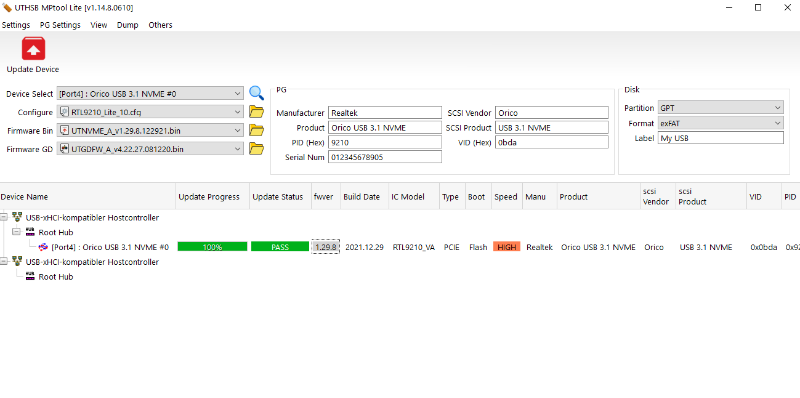

MPTOOL 1.14.8.0610 / MPTOOL Lite 1.15.0.0711
Download
New firmware for RTL9210B - v1.30.21.070622 / RTL9210 A 1.29.8 with Original Orico Config and many moore
MPTOOL 1.14.8.0610 / MPTOOL Lite 1.15.0.0711
Download
Attention : Spoiler !
Dernière édition: il y a 1 an 10 mois par sdefrwggerg.
Connexion ou Créer un compte pour participer à la conversation.
- sdefrwggerg
-
- Hors Ligne
- Best Poster
-
Enregistré
- Messages : 31
- Thanks: 20
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
il y a 1 an 10 mois - il y a 1 an 10 mois
If you brick RTL9210 Driver her is a method to unbrick Drive with Reset SERIAL FLASH MEMORY Chip with 8 Pin same Procedure for JMS583.
Find a Chip on the board that is small and has 2x3 mm aspect ratio and on the top is printed P25Q40SH or FM25Q04A or PUYA P25D40H. Search for the Datasheet of it look for CS# and VCC Pin or CS# and Hardware Reset Pin in Datasheet description of Pin Configurations. There is a Hard Reset Procedure on Rom in case of bricking your device. You need to short pins 1 & 8 with tweezers then connect to USB port for 10 seconds (until you hear a ding) and then remove the tweezers (unshort) while it still plugged in and flash a working Rom via USB from here. This will force RTL9210 to start with internal ROM, not with external f/w in SPI flash.
ibb.co/PQmpVnz
try to Upload my Image her but its still imposibel maybe Admin can do this?
You can download older Firmware from Orico search for M2 NVMe协议硬盘盒休眠修改 for download click on that 下载
Find a Chip on the board that is small and has 2x3 mm aspect ratio and on the top is printed P25Q40SH or FM25Q04A or PUYA P25D40H. Search for the Datasheet of it look for CS# and VCC Pin or CS# and Hardware Reset Pin in Datasheet description of Pin Configurations. There is a Hard Reset Procedure on Rom in case of bricking your device. You need to short pins 1 & 8 with tweezers then connect to USB port for 10 seconds (until you hear a ding) and then remove the tweezers (unshort) while it still plugged in and flash a working Rom via USB from here. This will force RTL9210 to start with internal ROM, not with external f/w in SPI flash.
ibb.co/PQmpVnz
try to Upload my Image her but its still imposibel maybe Admin can do this?
You can download older Firmware from Orico search for M2 NVMe协议硬盘盒休眠修改 for download click on that 下载
Dernière édition: il y a 1 an 10 mois par sdefrwggerg.
