NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

TiX
Hors Ligne
Poster
Enregistré
Messages : 5
Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

il y a 1 an 5 mois - il y a 1 an 5 mois

#1181

admin écrit:

" Using a MSI katana gf66 notebook the mainboard is "msi MS-1584" "

If your box is well connected in USB 3.2, try to see if your disk, what model is it?
Otherwise you can try to update but I don't know if that solves your problem, to see

Samsung mz-vl45120
I don't expect 5Gbs but at least 1Gbs

Dernière édition: il y a 1 an 5 mois par TiX.

Connexion ou Créer un compte pour participer à la conversation.

admin
Auteur du sujet
Hors Ligne
Admin
Administrateur
Messages : 755
Thanks: 379

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

il y a 1 an 5 mois - il y a 1 an 5 mois

#1182

No Alien Invader explains that to take advantage of the 1Gbps transfer rate for the SSD, you must connect the box to a 10Gbps port
Example of USB 3.2 port speed
USB 3.2 1x1 = 5Gbps = 500Mbps SSD transfer rate (Read/Write)
USB 3.2 2X1 =10Gbps = 1000Mbps SSD transfer rate( Read/Write)
USB 3.2 2x2 = 20Gbps = 2000Mbps = 2000Mbps SSD transfer rate (Read/Write)

Configuration

Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060, Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Dernière édition: il y a 1 an 5 mois par admin.

Les utilisateur(s) suivant ont remercié: Alien Invader

Connexion ou Créer un compte pour participer à la conversation.

Alien Invader
Hors Ligne
Poster
Enregistré
Messages : 7
Thanks: 3

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

il y a 1 an 5 mois

#1203

Anyone has a clue if the NVME-TO-USB adapters like the 9210B can initialize the Host Memory Buffer feature of the newer NVME SSD's ?

Connexion ou Créer un compte pour participer à la conversation.

blackbile
Hors Ligne
Poster
Enregistré
Messages : 6
Thanks: 1

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

il y a 1 an 5 mois

#1214

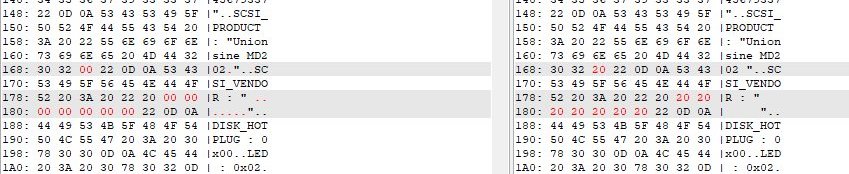

I have a Unionsine MD202, dumped the config, flashed the latest fw from this topic and it works, though it is strange that I could not write 00 - as there is 20 again dumping the flashed unit...
