ssd Question NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Réponse de anonHZQT sur le sujet NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted il y a 5 mois 4 semaines #2321
Thank you for reply,
but when I following this link  www.station-drivers.com/index.php/en/les...t-asus-tuf-gaming-a1 that you said
where do I get the configuration file need to update? I don't see any where I can click to download it on that page, and what the files name would look like?
sorry I'm very new to update firmware and this website.
par anonHZQT

Connexion ou Créer un compte pour participer à la conversation.

Réponse de TheGiolly sur le sujet NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted il y a 5 mois 4 semaines #2322
The dump you made IS the configuration.
Refer to my earlier reply on this post on how to use it.
par TheGiolly

Connexion ou Créer un compte pour participer à la conversation.

Réponse de anonHZQT sur le sujet NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted il y a 5 mois 4 semaines #2323
Thanks you as well,
So to clarify, I should edit my dump file as following:

[First line of the config are U2PHY]
U2PHY = n/a
U3PHY = n/a
VID = 0x0b05
PID = 0x1a8a
MANUFACTURE = "ASUSTek"
PRODUCT = "TUF Gaming A1"
SERIAL = "NBD0AP055936"
SCSI_PRODUCT = "ESD-T1A         "
SCSI_VENDOR = "TUF     "
USB_SELF_PWR = n/a
DISK_HOTPLUG = 0x00
LED = 0x01
PINMUX1 = 0x00000000
PINMUX2 = 0x00000000
U2_MAXPWR = 0xfa
U3_MAXPWR = 0x70
ASPMDIS = 0x00
PCIE_REFCLK = n/a
DISK_IPS_THRES = n/a
SWR_1_2V = n/a
EN_UPS = n/a
PD = n/a
CUSTOMIZED_LED = n/a
SUSPEND_LED_OFF = n/a
FORCE_USB_SPEED = n/a
FORCE_PCIE_SPEED = n/a
EN_U1U2 = n/a
FORCE_USB_QUIRK = n/a
FORCE_PCIE_QUIRK = n/a
FAN = n/a
DIS_SHOW_EMPTY_DISK = n/a
FORCE_SATA_NORMAL_DMA = n/a
UART_DBG_PIN = 0x05
FINGER_PRINT_EN = n/a
RM_INTERNAL_RD = n/a
HS_AUTO_SWITCH = n/a
UART_BAUD_RATE = n/a
CUSTOMIZED_DISK_IDENTIFY = n/a
HW_LED_CFG = 0x80000081
CDROM_CFG = n/a
SUPPORT_HID = n/a
LATE_INIT_DISK = n/a
SCSI_WP_PIN = n/a
SD_MMC_TYPE = n/a
FORCE_PORT_TYPE = n/a
BCDDEVICE = n/a
SUSPEND_DISK_OFF = n/a
SCSI_WB_PIN = n/a
CUSTOMIZED_FEATURE = n/a
PERIPH_API = n/a
RAID_CFG = n/a

Boot Mode = Flash
FW Ver = 1.29.391
FW Build Date = 2022.07.28
IC Pkg Type = PCIE/SATA
UUID = n/a

Disconn_ForceUSB2 = false
[End the file with Disconn line]

like this right? and save it like dump.cfg and select dump.cfg as a configure in mptool?
so if it like this, it's not gonna break my a1 during update right?
also if it does have problem how can I revert it back without using the pin 1 and 8 technique?
par anonHZQT

Connexion ou Créer un compte pour participer à la conversation.

  • admin
  • Portrait de admin Hors Ligne Auteur du sujet
  • Admin
  • Admin
    Administrateur
  • Messages : 575
  • Thanks: 267

Réponse de admin sur le sujet NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted il y a 5 mois 4 semaines #2324

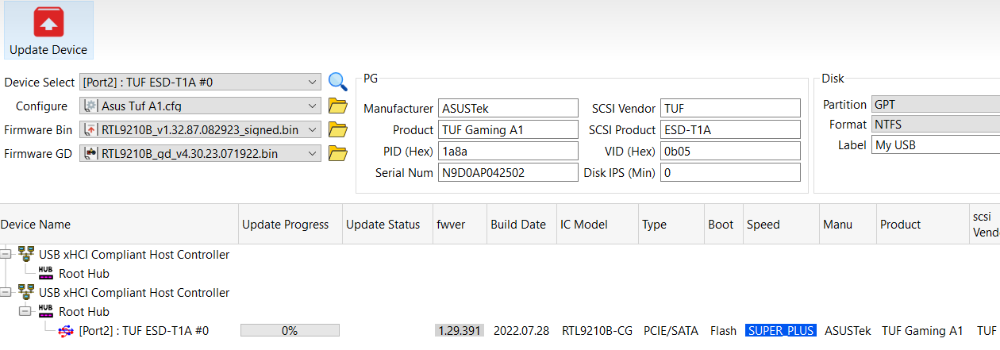

Ok take the firmware pack then the configuration file and select it in the update utility as below



Firmware Realtek RTL9210
www.station-drivers.com/index.php/en/com...7.082923/lang,en-gb/

Fils Config Asus A1

Ce fichier est masqué pour les invités.
Veuillez vous connecter ou vous enregistrer pour le consulter.


Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Last Edit:il y a 5 mois 4 semaines par admin
Dernière édition: il y a 5 mois 4 semaines par admin.

Connexion ou Créer un compte pour participer à la conversation.

Réponse de anonHZQT sur le sujet NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted il y a 5 mois 4 semaines #2325

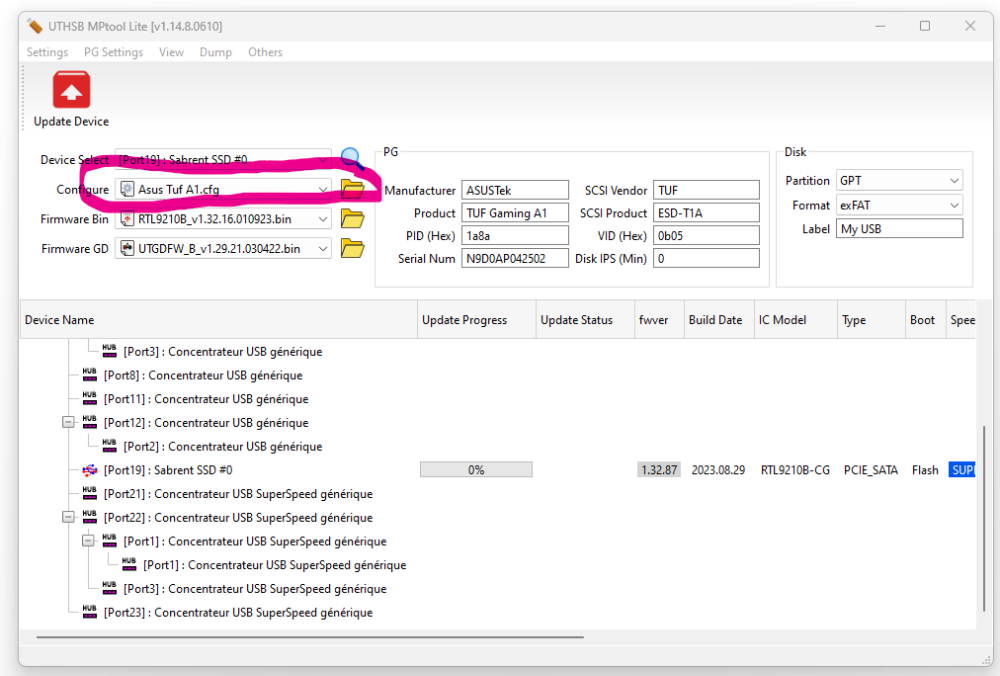

Like this right?
I'm very scared it gonna break so I have to make very sure everything is correct


Last Edit:il y a 5 mois 4 semaines par anonHZQT
Dernière édition: il y a 5 mois 4 semaines par anonHZQT. Raison: I forget to insert the picture I attached

Connexion ou Créer un compte pour participer à la conversation.
