NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
- Laroldski
- Hors Ligne
- Best Poster
-
Enregistré
- Messages : 47
- Thanks: 6
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
il y a 1 mois 6 jours
For anyone who wants to download and try the latest firmware v1.32.82 for the RTL9220 controller and wants to use it with the enclosure in the picture please keep in mind the are 2 different configure files,you need configure file RTL9220_ARGB.cfg
I got the firmware from the official JEYI store and uploaded it to admin and they told me they also changed the configure file for the enclosure as well and if you check your dump file it may look nothing like RTL9220_ARGB.cfg which is the one you are supposed to use.
I can confirm that I have tested v1.32.82 of the firmware and both configure files and they both seem to work fine with the enclosure and the RTL9220_ARGB_UART.cfg configure file is supposed to be for a yet to be released enclosure from what they told me.
[img][img]https://i.imgur.com/26p0p6b.jpg[/img][/img][img][img]https://i.imgur.com/CQdPwjD.jpg[/img][/img] [img][img]https://i.imgur.com/26p0p6b.jpg[/img][/img]
I got the firmware from the official JEYI store and uploaded it to admin and they told me they also changed the configure file for the enclosure as well and if you check your dump file it may look nothing like RTL9220_ARGB.cfg which is the one you are supposed to use.
I can confirm that I have tested v1.32.82 of the firmware and both configure files and they both seem to work fine with the enclosure and the RTL9220_ARGB_UART.cfg configure file is supposed to be for a yet to be released enclosure from what they told me.
[img][img]https://i.imgur.com/26p0p6b.jpg[/img][/img][img][img]https://i.imgur.com/CQdPwjD.jpg[/img][/img] [img][img]https://i.imgur.com/26p0p6b.jpg[/img][/img]
Connexion ou Créer un compte pour participer à la conversation.
- Wolfspam
- Hors Ligne
- Poster
-
Enregistré
- Messages : 6
- Thanks: 1
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
il y a 1 mois 4 jours - il y a 1 mois 4 jours
Tried flashing with 1.33.44, 1.33.7 1.32.68 but failed with no config file issue.

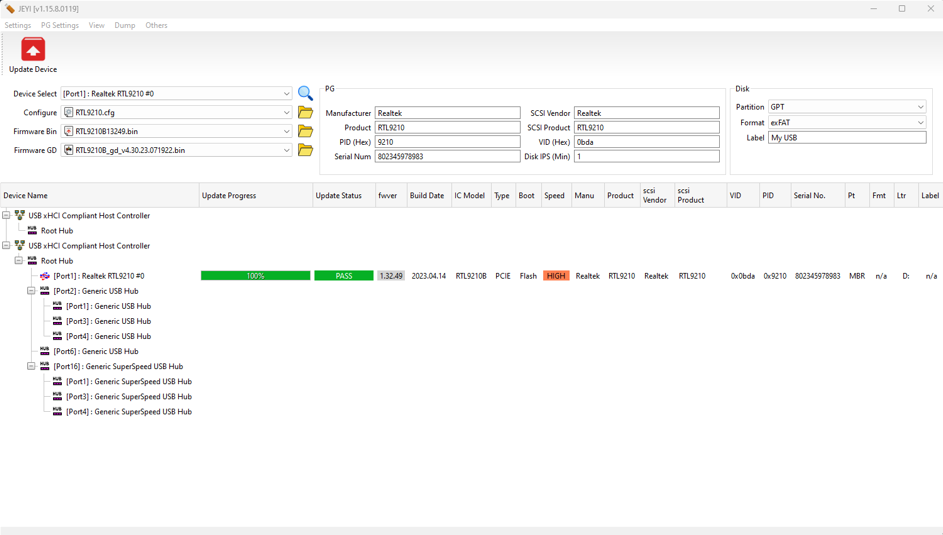

eventually worked with 1.32.49
Orico shipped with 1.23.15 2020.11.16, unit was bought just last week.
eventually worked with 1.32.49
Orico shipped with 1.23.15 2020.11.16, unit was bought just last week.
Dernière édition: il y a 1 mois 4 jours par Wolfspam.
Les utilisateur(s) suivant ont remercié: admin
Connexion ou Créer un compte pour participer à la conversation.
- Laroldski
- Hors Ligne
- Best Poster
-
Enregistré
- Messages : 47
- Thanks: 6
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
il y a 1 mois 4 jours

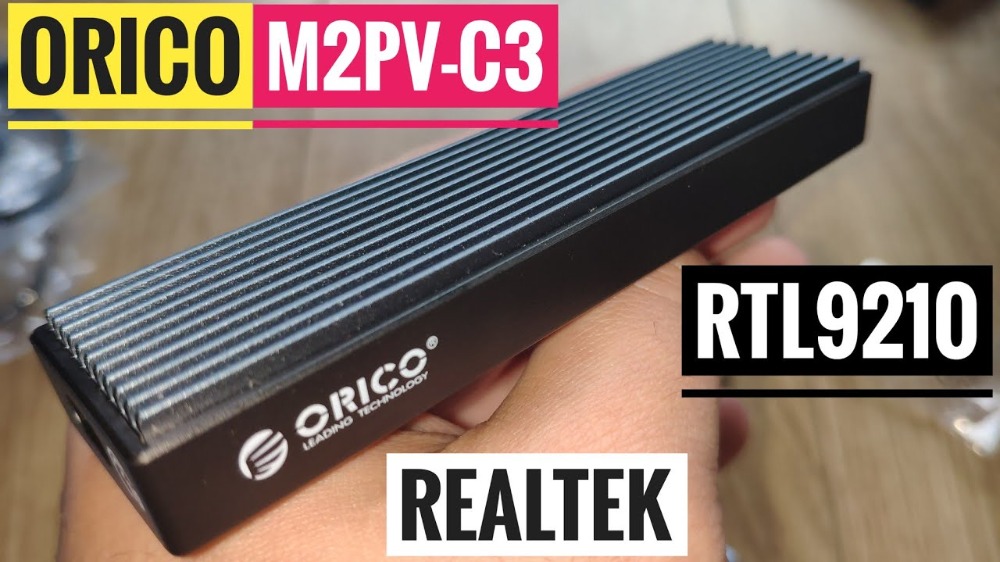

@Wolfspam I own the same enclosure and I got it to flash with v1.33.44 and use configure file RTL9210_VB_CG_Orico_0_Mod.cfg I don't know why but I have had it had more then a few times like 5 or 6 times when updating the RTL9210 that it often fail then you try again with the same firmware that you just tried to flash the enclosure with and then it successfully flash's.
If you don't have this configure file I can email it to you.
If you don't have this configure file I can email it to you.
Les utilisateur(s) suivant ont remercié: Wolfspam
Connexion ou Créer un compte pour participer à la conversation.
- Wolfspam
- Hors Ligne
- Poster
-
Enregistré
- Messages : 6
- Thanks: 1
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
il y a 1 mois 2 jours
thanks I will try again later, I packed it away as it is a spare so will have to find it again.
Connexion ou Créer un compte pour participer à la conversation.
- ismailze
- Hors Ligne
- Newbie
-
Enregistré
- Messages : 1
- Thanks: 0
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
il y a 3 semaines 1 jour
Hello guys,
Has anyone had any scusses updating this RTL9210B no brand enclosure?
your help is very nuch appreciated
Here's my dump:
**************************************************************
Device : [Port4] : Realtek RTL9210B-CG #0
**************************************************************
U2PHY : 02 f4 9b e0 e1
U3PHY : 02 d4 09 00 d5 00 80
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "Realtek"
PRODUCT : "RTL9210B-CG"
SERIAL : "012345678906"
SCSI_PRODUCT : "RTL9210B-CG"
SCSI_VENDOR : "Realtek"
USB_SELF_PWR : n/a
DISK_HOTPLUG : 0x00
LED : 0x02
PINMUX1 : 0x00000000
PINMUX2 : 0x00000000
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x70
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : n/a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 01 01 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a
Boot Mode : Flash
FW Ver : 1.29.12
FW Build Date : 2022.01.11
IC Pkg Type : PCIE
UUID : n/a
Disconn_ForceUSB2 : false
Has anyone had any scusses updating this RTL9210B no brand enclosure?
your help is very nuch appreciated
Here's my dump:
**************************************************************
Device : [Port4] : Realtek RTL9210B-CG #0
**************************************************************
U2PHY : 02 f4 9b e0 e1
U3PHY : 02 d4 09 00 d5 00 80
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "Realtek"
PRODUCT : "RTL9210B-CG"
SERIAL : "012345678906"
SCSI_PRODUCT : "RTL9210B-CG"
SCSI_VENDOR : "Realtek"
USB_SELF_PWR : n/a
DISK_HOTPLUG : 0x00
LED : 0x02
PINMUX1 : 0x00000000
PINMUX2 : 0x00000000
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x70
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : n/a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 01 01 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a
Boot Mode : Flash
FW Ver : 1.29.12
FW Build Date : 2022.01.11
IC Pkg Type : PCIE
UUID : n/a
Disconn_ForceUSB2 : false
