ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

  • Fridira
  • Portrait de Fridira
  • Hors Ligne
  • Poster 2
  • Poster 2
    Enregistré
  • Messages : 5
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

il y a 6 jours 10 heures
#4581
Hi. Thanks for answering. But 5gbps is not about 625mb/s? I use cable 3.0 and in first time show me my 625mb/s speed but after speed down.
I use asus x415ea.
1x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps)
1x USB 3.2 Gen 1 Type-C (data speed up to 5Gbps)

Connexion ou Créer un compte pour participer à la conversation.

  • admin
  • Portrait de admin Auteur du sujet
  • Hors Ligne
  • Admin
  • Admin
    Administrateur
  • Messages : 306
  • Thanks: 96

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

il y a 6 jours 10 heures
#4582
Yes, but several factors can affect the speed (CPU, memory, BIOS, USB cable, etc.).
1. Check the USB cable is USB 3.2 Gen2 X2 (20Gb) compliant.
2. Check the CPU usage at the time of the test (CTRL+ALT+DEL and Task Manager).
3. Check if the antivirus is active.

Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Connexion ou Créer un compte pour participer à la conversation.

  • Fridira
  • Portrait de Fridira
  • Hors Ligne
  • Poster 2
  • Poster 2
    Enregistré
  • Messages : 5
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

il y a 6 jours 10 heures
#4583
Hi. Thanks for answering. But 5gbps is not about 625mb/s? I use cable 3.0 and in first time show me my 625mb/s speed but after speed down.
I use asus x415ea.
1x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps)
1x USB 3.2 Gen 1 Type-C (data speed up to 5Gbps)

Connexion ou Créer un compte pour participer à la conversation.

  • Fridira
  • Portrait de Fridira
  • Hors Ligne
  • Poster 2
  • Poster 2
    Enregistré
  • Messages : 5
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

il y a 6 jours 10 heures
#4584
Hi. Thanks for answering. But 5gbps is not about 625mb/s? I use cable 3.0 and in first time show me my 625mb/s speed but after speed down.
I use asus x415ea.
1x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps)
1x USB 3.2 Gen 1 Type-C (data speed up to 5Gbps)

Connexion ou Créer un compte pour participer à la conversation.

  • admin
  • Portrait de admin Auteur du sujet
  • Hors Ligne
  • Admin
  • Admin
    Administrateur
  • Messages : 306
  • Thanks: 96

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

il y a 6 jours 10 heures
#4585

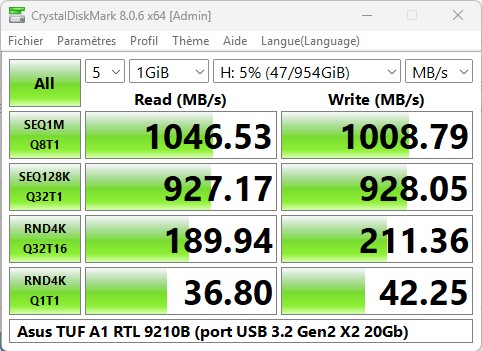

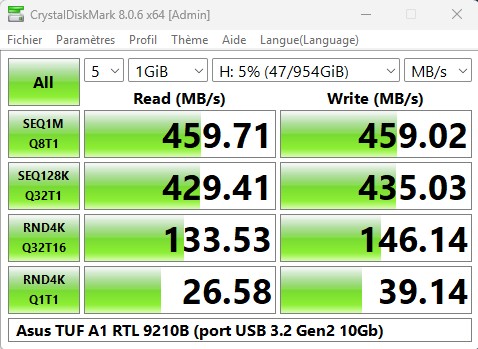

here is my Asus TUF A1 case (RTL9210B) on a 10Gb and on a 20Gb port (USB 3.2 Gen2 X2)









Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
