ssd Questão NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Respondido por TiX no tópico NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 ano 1 mês atrás #1158
The usb port is Type-C 3.2 Gen1
[IMG
por TiX

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.

Respondido por Alien Invader no tópico NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 ano 1 mês atrás #1159
3.2 Gen1 is 5Gbit, some mainboard makers go cheap and wire Type-C ports to 5Gbit for cost cutting. A nice example are those cheap A620 Chipsets which have the option for 10Gbit both from CPU and Chipset.
I recently got a M2 SATA cheap 512GB SSD to test my Unionsine MD202 case cause I had only trouble getting my SM2263XT drive to work with it. For some reason that Intenso NVME SSD ain't playing well with anything. The MD202 works just fine with the other NVME I have around (RTS5765).
Last Edit:1 ano 1 mês atrás por Alien Invader
Ultima edição : 1 ano 1 mês atrás por Alien Invader.
Os seguintes utilizadores Agradeceram: admin

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.

  • admin
  • Avatar de admin Desligado Autor do tópico
  • Admin
  • Admin
    Administrateur
  • Mensagens: 573
  • Thanks: 264

Respondido por admin no tópico NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 ano 1 mês atrás #1160

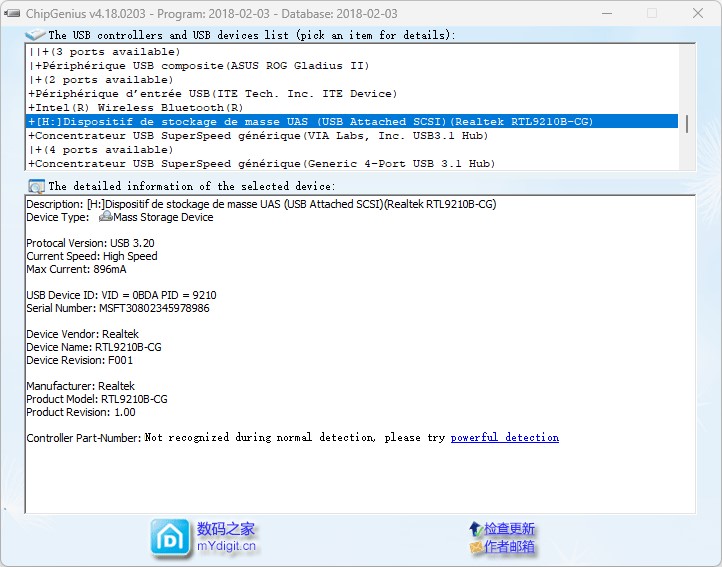

to be sure to be in USB 3.2, check with the Chipgenius utility below

the 500 Mbps instead of 1000Mbps and a speed problem due to the port or the cable as said by Alien Invader
The firmware can also but already check the port then the cable (USB-C port)


Este anexo está oculto aos visitantes.
Por favor, inicie sessão ou registe-se para o ver.

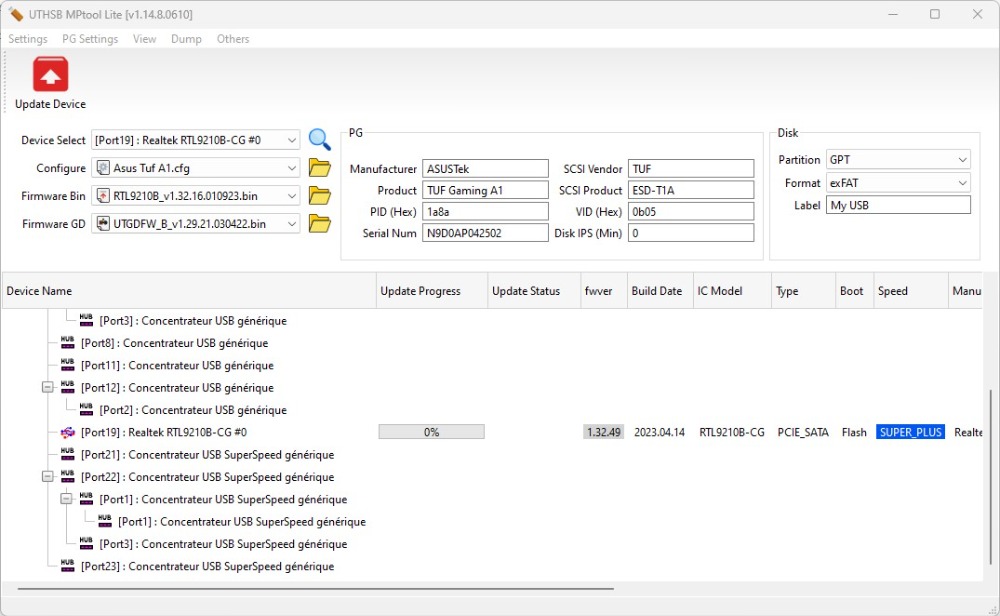

or via the update utility (Super plus)






Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Last Edit:1 ano 1 mês atrás por admin

Esta mensagem tem um anexo.
Faça login ou registe-se para o ver.

Ultima edição : 1 ano 1 mês atrás por admin.

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.

Respondido por TiX no tópico NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 ano 1 mês atrás #1163
por TiX

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.

Respondido por sdefrwggerg no tópico NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 ano 1 mês atrás #1164
try to set Windows Power saving settings to High

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.
