NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
- sdefrwggerg
- Desligado
- Best Poster
-
Enregistré
- Mensagens: 32
- Thanks: 21
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 ano 10 meses atrás - 1 ano 10 meses atrásPor favor Iniciar sessão ou Criar uma conta para se juntar à conversa.
- paso
- Desligado
- Newbie
-
Enregistré
- Mensagens: 4
- Thanks: 0
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 ano 9 meses atrás - 1 ano 9 meses atrásNow my serial is lost, most of values are N/A.
Enclosure is working fine, only difference I noticed is that is goes to sleep much faster than before and Samsung magician cannot read much about the disk (didn't check with stock).
Is there any chance I can get to the stock config? Shorting pins did not help, same dummy serial and N/A values.

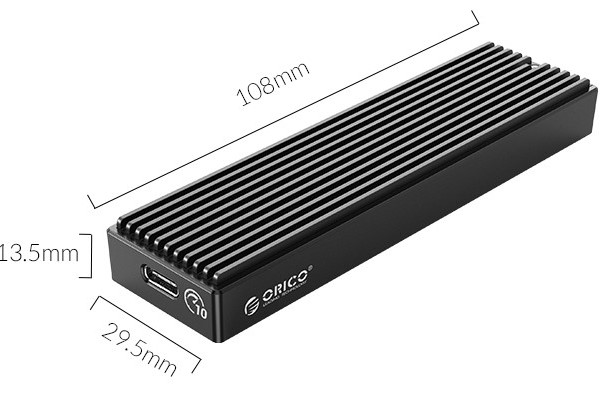

Is here anyone with ORICO M222C3-G2 or similar that can share the dump, or similar or advise some values to put there?
Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.
- admin
- Autor do tópico
- Desligado
- Admin
-
Administrateur
- Mensagens: 779
- Thanks: 382
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 ano 9 meses atrás - 1 ano 9 meses atrásIt happens too bad that Realtek does not do like the Asmedia which creates a backup with each update

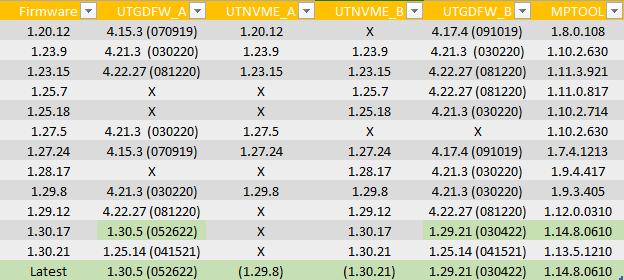

If you are sure it is a Realtek RTL9210 (10Gbs) here is an official firmware for the box below
Otherwise no firmware available for the 20Gbs Version (RTL9220)
Otherwise you can get this one from Orico and modify it
Version 1.27.24 (RTL9210 only)
Download
www.orico.cc/us/prodl/927.html
Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060, Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.
- paso
- Desligado
- Newbie
-
Enregistré
- Mensagens: 4
- Thanks: 0
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 ano 9 meses atrás - 1 ano 9 meses atrásWhat should I look for in the configs? To me 90% of them look the same with few led and timeout tweaks here and there. Nothing important. Basically all are close to the default USB config.
From you link there are like 9 config files, and don't know which one I should check, but they seem just basuc what is here + product info, nothing special. I'm just worried I'm loosing some random functionality that I'm not even aware exist.
Any chance I could have flashed B over A? I don't remember what I had at start, but now I'm only able to choose B versions.
Note: I flashed it like 10 times, different versions/configs + from rom, because sometimes it did not let me flash.
Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.
- paso
- Desligado
- Newbie
-
Enregistré
- Mensagens: 4
- Thanks: 0
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 ano 9 meses atrásStill have no idea what golden rom is. I found out that I cannot reflash latest just to try different config (according to log it fails to go to golden rom). I can do the rom boot trick connecting pins, but I found another way.

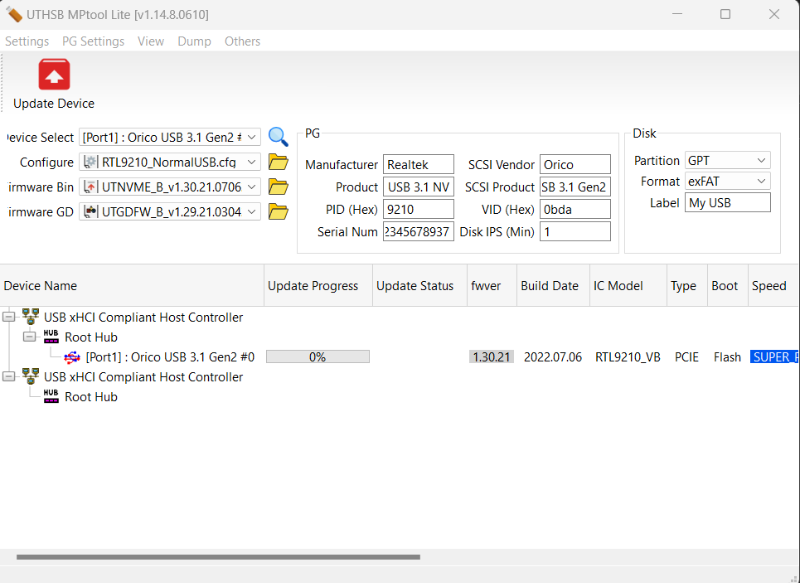

If I select in Settings -> golden binary and also Write Efuse UUID. It will fail at 99% and keep me in whatever boot golden / rom. Seen both don't remember exactly what I did.
From there I can disable the UUID option again and flash without errors.
