NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Wolfspam
Desligado
Poster 2
Enregistré
Mensagens: 6
Thanks: 1

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 ano 2 meses atrás

#1883

p33994451 escreveu:

I'd like to ask if anyone has purchased a similar version that comes with a fan?

www.lazada.com.ph/products/m2-nvme-ngff-...XajTE.364bnXajnXajTE

Next time just buy one with a metal heatsink case, tiny fans are dubious and unreliable, at best used in conjunction with a heatsink themselves.

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.

sabamacx
Desligado
Newbie
Enregistré
Mensagens: 1
Thanks: 1

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 ano 2 meses atrás

#1903

SmallRig SD-01

M.2 SSD Enclosure SD-01 3479
www.smallrig.com/SmallRig-M-2-SSD-Enclosure-SD-01-3479.html

Out of the box worked perfectly in Windows, didn't work at all in Linux.
Shipped configuration:

Code:

**************************************************************
Device : [Port4] : SmallRig SD-01 #0
**************************************************************
U2PHY : 02 f4 9b e0 e1
U3PHY : 02 d4 09 00 d5 00 80
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "SmallRig"
PRODUCT : "SD-01"
SERIAL : "202205040467"
SCSI_PRODUCT : "SD-01           "
SCSI_VENDOR : "SmallRig"
USB_SELF_PWR : n/a
DISK_HOTPLUG : 0x00
LED : 0x02
PINMUX1 : 0x00000000
PINMUX2 : 0x00000700
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x00
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x0a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : n/a
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a

Boot Mode : Flash
FW Ver : 1.29.12
FW Build Date : 2022.01.11
IC Pkg Type : PCIE/SATA
UUID : n/a

Disconn_ForceUSB2 : false

Successful flash to 1.32.87.082923, works correctly now in Linux. Configuration after flash:

Code:

**************************************************************
Device : SmallRig RTL9210
**************************************************************
U2PHY : 02 f4 9b e0 e1
U3PHY : 02 d4 09 00 d5 00 80
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "SmallRig"
PRODUCT : "SD-01"
SERIAL : "202205040468"
SCSI_PRODUCT : "n/a"
SCSI_VENDOR : "SmallRig"
USB_SELF_PWR : n/a
DISK_HOTPLUG : 0x00
LED : 0x02
PINMUX1 : 0x00000000
PINMUX2 : 0x00000700
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x00
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x0a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : n/a
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a

Boot Mode : Flash
FW Ver : 1.32.87
FW Build Date : 2023.08.29
IC Pkg Type : PCIE/SATA
UUID : n/a

Disconn_ForceUSB2 : false

Os seguintes utilizadores Agradeceram: admin

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.

YuriKun
Desligado
Newbie
Enregistré
Mensagens: 1
Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 ano 1 mês atrás - 1 ano 1 mês atrás

#1945

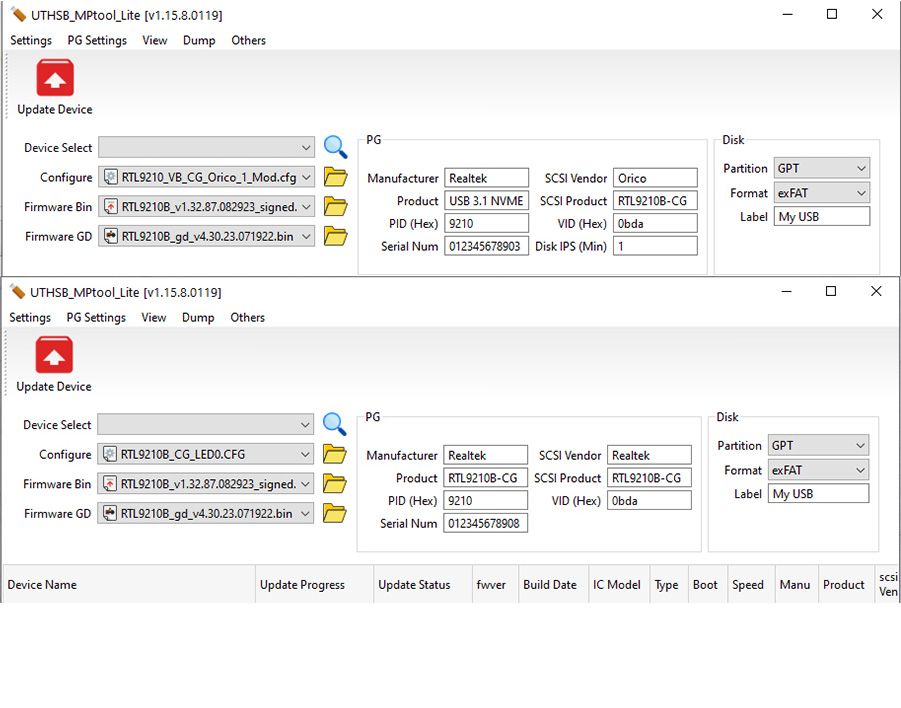

I use device RTL9210B-CG first day.
Install good NVME SSD.
The speed was only 37Mb/s in USB 3.1 port.
After Update the FW to
- RTL9210B_v1.32.87.082923_signed.bin
- RTL9210B_gd_v4.30.23.071922.bin
my device work only in USB2.0 port and not work in USB3.x ports.
Please, help me.**************************************************************
Device : [Port10] : Realtek RTL9210B-CG #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "Realtek"
PRODUCT : "RTL9210B-CG"
SERIAL : "012345678914"
SCSI_PRODUCT : "RTL9210B-CG "
SCSI_VENDOR : "Realtek "
DISK_HOTPLUG : 0x00
LED : 0x01
PINMUX1 : 0x00000000
PINMUX2 : 0x00000000
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x70
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : n/a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : n/a
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
FP_UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
EFUSE :
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F

Boot Mode : Flash
FW Ver : 1.32.87
FW Build Date : 2023.08.29
IC Pkg Type : PCIE_SATA
UUID : n/a
Disconn_ForceUSB2 : 0x00

Ultima edição : 1 ano 1 mês atrás por YuriKun.

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.

admin
Autor do tópico
Desligado
Admin
Administrateur
Mensagens: 781
Thanks: 383

Re: NVME USB drives Realtek RTL9210B / RTL9210A Firmware only for B v1.29.12

1 ano 1 mês atrás - 1 ano 1 mês atrás

#1953

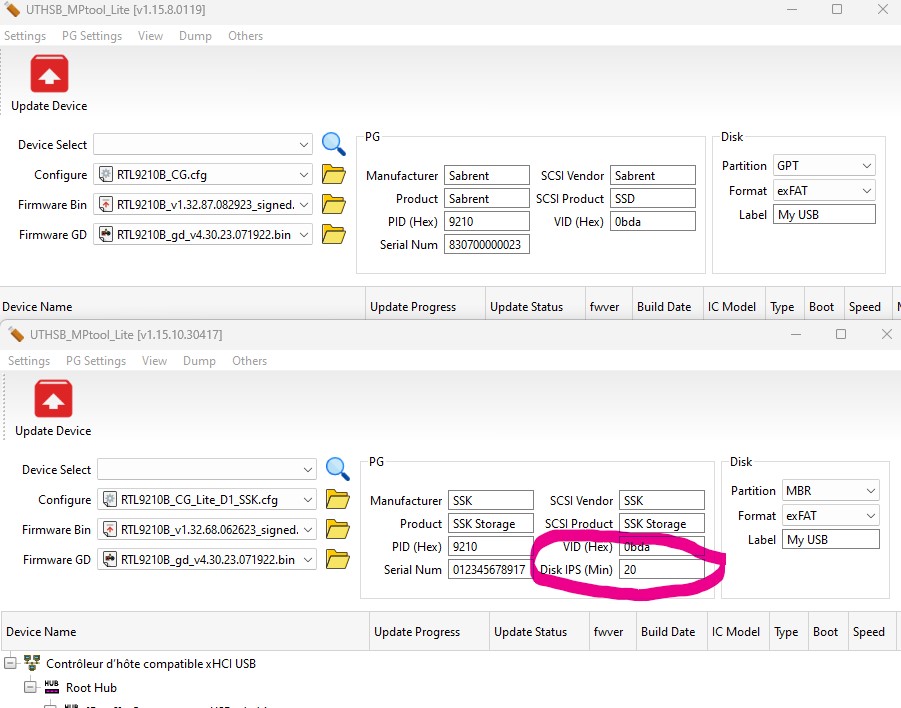

with the new MPTOOL you can set the sleep time of your SSD

the choice is before the day before and 1 or 10 or 20 or 30 ect and 0 for never

www.station-drivers.com/index.php/en-us/...8.062623/lang,en-us/

Configuration

Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060, Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Ultima edição : 1 ano 1 mês atrás por admin.

Os seguintes utilizadores Agradeceram: sdefrwggerg

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.

sdefrwggerg
Desligado
regular poster
Enregistré
Mensagens: 32
Thanks: 21

Re: NVME USB drives Realtek RTL9210B / RTL9210A Firmware only for B v1.29.12

1 ano 1 mês atrás - 1 ano 1 mês atrás

#1967

That's not entirely true you need to remove PCIE_PWRCUT_THRES = 0xa and replace it in config file with:

;10 minutes of idle time will disable disk power
DISK_IPS_THRES = 1

www.station-drivers.com/index.php/en-us/...29-12?start=110#1046

Ultima edição : 1 ano 1 mês atrás por sdefrwggerg.

Os seguintes utilizadores Agradeceram: admin, Stasiz

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.
