NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
- anonHZQT
- Desligado
- poster 3
-
Enregistré
- Mensagens: 12
- Thanks: 0
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
11 meses 6 dias atrásbut when I following this link www.station-drivers.com/index.php/en/les...t-asus-tuf-gaming-a1 that you said
where do I get the configuration file need to update? I don't see any where I can click to download it on that page, and what the files name would look like?
sorry I'm very new to update firmware and this website.
Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.
- TheGiolly
- Desligado
- poster 3
-
Enregistré
- Mensagens: 10
- Thanks: 2
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
11 meses 6 dias atrásRefer to my earlier reply on this post on how to use it.
Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.
- anonHZQT
- Desligado
- poster 3
-
Enregistré
- Mensagens: 12
- Thanks: 0
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
11 meses 6 dias atrásSo to clarify, I should edit my dump file as following:
[First line of the config are U2PHY]
U2PHY = n/a
U3PHY = n/a
VID = 0x0b05
PID = 0x1a8a
MANUFACTURE = "ASUSTek"
PRODUCT = "TUF Gaming A1"
SERIAL = "NBD0AP055936"
SCSI_PRODUCT = "ESD-T1A "
SCSI_VENDOR = "TUF "
USB_SELF_PWR = n/a
DISK_HOTPLUG = 0x00
LED = 0x01
PINMUX1 = 0x00000000
PINMUX2 = 0x00000000
U2_MAXPWR = 0xfa
U3_MAXPWR = 0x70
ASPMDIS = 0x00
PCIE_REFCLK = n/a
DISK_IPS_THRES = n/a
SWR_1_2V = n/a
EN_UPS = n/a
PD = n/a
CUSTOMIZED_LED = n/a
SUSPEND_LED_OFF = n/a
FORCE_USB_SPEED = n/a
FORCE_PCIE_SPEED = n/a
EN_U1U2 = n/a
FORCE_USB_QUIRK = n/a
FORCE_PCIE_QUIRK = n/a
FAN = n/a
DIS_SHOW_EMPTY_DISK = n/a
FORCE_SATA_NORMAL_DMA = n/a
UART_DBG_PIN = 0x05
FINGER_PRINT_EN = n/a
RM_INTERNAL_RD = n/a
HS_AUTO_SWITCH = n/a
UART_BAUD_RATE = n/a
CUSTOMIZED_DISK_IDENTIFY = n/a
HW_LED_CFG = 0x80000081
CDROM_CFG = n/a
SUPPORT_HID = n/a
LATE_INIT_DISK = n/a
SCSI_WP_PIN = n/a
SD_MMC_TYPE = n/a
FORCE_PORT_TYPE = n/a
BCDDEVICE = n/a
SUSPEND_DISK_OFF = n/a
SCSI_WB_PIN = n/a
CUSTOMIZED_FEATURE = n/a
PERIPH_API = n/a
RAID_CFG = n/a
Boot Mode = Flash
FW Ver = 1.29.391
FW Build Date = 2022.07.28
IC Pkg Type = PCIE/SATA
UUID = n/a
Disconn_ForceUSB2 = false
[End the file with Disconn line]

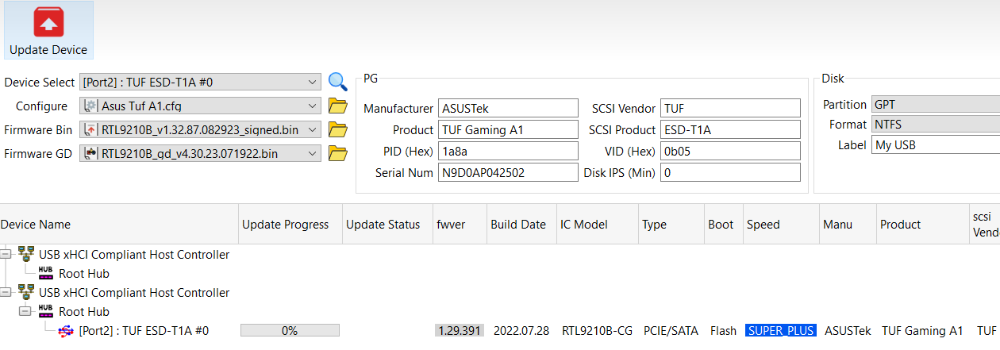

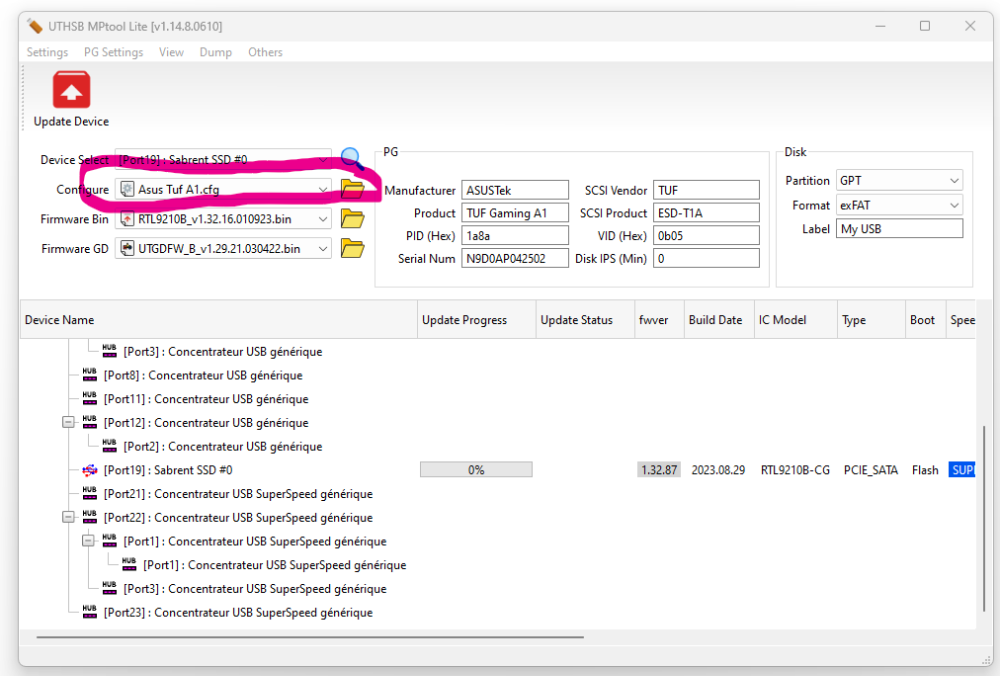

like this right? and save it like dump.cfg and select dump.cfg as a configure in mptool?
so if it like this, it's not gonna break my a1 during update right?
also if it does have problem how can I revert it back without using the pin 1 and 8 technique?
Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.
- admin
- Autor do tópico
- Em linha
- Admin
-
Administrateur
- Mensagens: 781
- Thanks: 383
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
11 meses 6 dias atrás - 11 meses 6 dias atrásFirmware Realtek RTL9210
www.station-drivers.com/index.php/en/com...7.082923/lang,en-gb/
Fils Config Asus A1
Por favor, inicie sessão ou registe-se para o ver.
Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060, Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.
