ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

  • GarryMoveOut
  • Avatarul lui GarryMoveOut
  • Deconectat
  • Newbie
  • Newbie
    Enregistré
  • Postări: 1
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

acum 10 luni 1 săptămână - acum 10 luni 1 săptămână
#2450

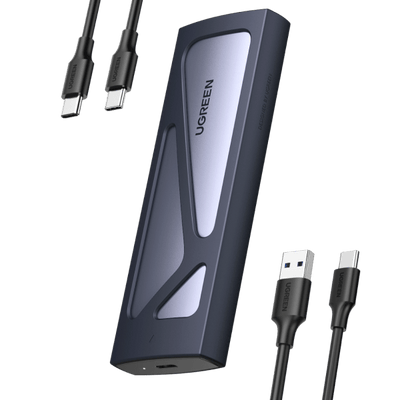

Recently I bought this Ugreen NVME M2 USB adapter, model CM578.

Oryginal dump:
Atenție: Dezvăluire!




I successfully updated RTL9210 firmware to 1.32.87.082923 but I still have problem with this enclosure.

When I connect it to my PC to USB 3.2 gen 2 I get max 425MB/s parrel read. I tried with USB A and USB C cable from enclosure set. I don't have other cables or PC to test it more.

On Raspberry Pi 5 I've got worse problems. Before update enclosure was disconnecting during heavy IO operations from docker containers. Synthethic fio doesn't cause problems. After update things are even wores. Even disk is idle, enclosure keeps disconnecting and connecting. I've tried active hubs, connecting to USB 2.0 with no success.
Ultima editare: acum 10 luni 1 săptămână de către GarryMoveOut. Motiv: Formating

Vă rugăm Autentificare sau Crează un cont să participaţi la discuţie.

  • admin
  • Avatarul lui admin Autor Subiect
  • Plecat
  • Admin
  • Admin
    Administrateur
  • Postări: 782
  • Thanks: 383

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

acum 10 luni 1 săptămână
#2451
Hi,
The throughput problem may be due to poor management of the SSD by the RTL9210 controller, try the latest firmware for the SSD if available and if the problem persists, try with another USB 3.2 cable


Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Vă rugăm Autentificare sau Crează un cont să participaţi la discuţie.

  • ax, dx
  • Avatarul lui ax, dx
  • Deconectat
  • Newbie
  • Newbie
    Enregistré
  • Postări: 1
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

acum 10 luni 1 săptămână
#2452
a little about firmware rtl92XX
As you see we a have two files. UTNVME - userspace code. UTGDFW - bootloader (aka GoldenFirmware).

All files have a same structure:
Header
Param
Main code

Here is example github.com/lolyinseo/RTL92XX . Two files: UTNVME_A_v1.29.12.011122.bin and ImHex project( github.com/WerWolv/ImHex/releases ).
Download both and open project with ImHex for more info

In flash.
x0 - x3FFF empty space
x4000 - userspace code header (from UTNVME)
x4800 - you config
Code:
Offset      0  1  2  3  4  5  6  7   8  9  A  B  C  D  E  F 00004800   01 02 F4 9B E0 E1 02 02  D4 09 00 D5 00 80 03 DA     ô›àá  Ô  Õ € Ú 00004810   0B 04 10 92 06 10 03 52  00 65 00 61 00 6C 00 74      ’   R e a l t 00004820   00 65 00 6B 00 05 18 03  52 00 54 00 4C 00 39 00    e k    R T L 9  00004830   32 00 31 00 30 00 41 00  2D 00 56 00 41 00 07 20   2 1 0 A - V A    00004840   03 46 00 57 00 31 00 2E  00 32 00 39 00 2E 00 31    F W 1 . 2 9 . 1 00004850   00 32 00 2E 00 30 00 31  00 31 00 31 00 32 00 08    2 . 0 1 1 1 2   00004860   00 09 01 0A 00 00 07 00  0B 00 00 00 00 0F FA 12                 ú  00004870   70 13 00 15 01 21 01 23  05 25 01 00 00 00 00 00   p    ! # %

compare width
Code:
U2PHY : 02 f4 9b e0 e1  U3PHY : 02 d4 09 00 d5 00 80  VID : 0x0bda PID : 0x9210 MANUFACTURE : "Realtek" PRODUCT : "RTL9210A-VA" SERIAL : "FW1.29.12.01112" SCSI_PRODUCT : "n/a" SCSI_VENDOR : "n/a" DISK_HOTPLUG : 0x00 LED : 0x01 PINMUX1 : 0x00070000 PINMUX2 : 0x00000000 U2_MAXPWR : 0xfa U3_MAXPWR : 0x70 ASPMDIS : 0x00 PCIE_REFCLK : n/a DISK_IPS_THRES : 0x01 SWR_1_2V : n/a EN_UPS : n/a PD : n/a CUSTOMIZED_LED : n/a SUSPEND_LED_OFF : n/a FORCE_USB_SPEED : n/a FORCE_PCIE_SPEED : n/a EN_U1U2 : n/a FORCE_USB_QUIRK : n/a FORCE_PCIE_QUIRK : n/a FAN : n/a DIS_SHOW_EMPTY_DISK : 0x01 FORCE_SATA_NORMAL_DMA : n/a UART_DBG_PIN : 0x05 FINGER_PRINT_EN : n/a RM_INTERNAL_RD : 0x01 HS_AUTO_SWITCH : n/a UART_BAUD_RATE : n/a CUSTOMIZED_DISK_IDENTIFY : n/a HW_LED_CFG : n/a CDROM_CFG : n/a SUPPORT_HID : n/a LATE_INIT_DISK : n/a SCSI_WP_PIN : n/a SD_MMC_TYPE : n/a FORCE_PORT_TYPE : n/a BCDDEVICE : n/a SUSPEND_DISK_OFF : n/a SCSI_WB_PIN : n/a CUSTOMIZED_FEATURE : n/a

01 - param id (U2PHY)
02 F4 9B E0 E1 - param value
02 - param id (U3PHY)
02  D4 09 00 D5 00 80 - param value
etc ..
xc700 - bootloader header
x13000 - bootloader main code
x20000 - userspace main code

no CRC for whole flash, only for maincode block, bootloader block. So you can build your own dump for flashing the chip if you dont have a backup.
If you have additional information, especially utilities for Linux, please share

Vă rugăm Autentificare sau Crează un cont să participaţi la discuţie.

  • ersds
  • Avatarul lui ersds
  • Deconectat
  • Newbie
  • Newbie
    Enregistré
  • Postări: 1
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

acum 10 luni 1 săptămână
#2455
Hello my frieds.
I apologize for my terrible English.
I'm going to summarize as much as possible what I messed up.
I went to update the firmware on my orico case and put the wrong firmware in, freezing at 14% and failing, but I tried to put in more wrong firmware later, which loaded up to 100%, but left my case unusable.
(First I made a mistake when putting GD A. Then I ended up seeing that all the firmware I was trying was for a model that wasn't dual protocol)
I tried to reset the firmware causing a short in the EPROM, with VCC + CS#, but the LED doesn't even light up or blink when I do this.
When researching the EPROM (SPI UC25HQ40), I saw that it does not have a hardware reset pin. ( www.ucuntech.com/uploads/20220324/3f2b6d...2fd7954a127893e8.pdf )

SSD Case: Orico Dual Protocol SSD Enclosure (10Gbps) M.2 NVMe and NGFF(SATA)
RTL9210B
Current Situation: SSD appears with zero capacity. Not bootable by the manager. Cannot create partitions using cmd.

Vă rugăm Autentificare sau Crează un cont să participaţi la discuţie.

  • done_pt
  • Avatarul lui done_pt
  • Deconectat
  • Newbie
  • Newbie
    Enregistré
  • Postări: 1
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

acum 10 luni 4 zile
#2469
Like a fool, I did not do a dump before updating... help?

My chip is the RTL9210 l5CF8ER GNO5B, so I assume it's the A chip, not the B but all the latest firmware updaters I've tried don't let me select the B version .bins.

Atenție: Dezvăluire!


Updating with the B bins did fix my issues with WD SN770 NVME's on Mac but I messed up the LED behavior, editing the config settings like:
LED = 0x1 - Does not turn off the LED, it doesn't seem to do anything. Ideally, I'd want the LED to turn off when idle and on when working, but just always on and blinking when working is fine too I guess.
I also tried LED = 0x2 / 0x3
and
RM_INTERNAL_RD = 0x1
SUSPEND_LED_OFF = 0x1
The LED is still always on even when ejected.

I must be missing something obvious.


Vă rugăm Autentificare sau Crează un cont să participaţi la discuţie.
