ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

  • Laroldski
  • Avatarul lui Laroldski
  • Deconectat
  • Best Poster
  • Best Poster
    Enregistré
  • Postări: 59
  • Thanks: 6

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

acum 1 lună 1 săptămână - acum 1 lună 1 săptămână
#3901
Have you tried selecting the files with by clicking on the folders that are circled in red in the picture that you included.

I have had to try installing older firmware a few times with the RTL9210 controllers before,for whatever reason they can be a real pain when they want to be and then after installing an older firmware a lot of the time the firmware that wouldn't load the files or even let me select them now would after installing older firmware.

station-drivers.com/index.php/en/compone...1.120722/lang,en-gb/

station-drivers.com/index.php/en/compone...7.191023/lang,en-gb/

Also you can try contacting this seller on aliexpress they are the JEYI company and you can try asking them for the proper firmware for your device as well.

www.aliexpress.com/item/1005006754982743...n.123.7bb71802ePiA1V
Ultima editare: acum 1 lună 1 săptămână de către Laroldski.

Vă rugăm Autentificare sau Crează un cont să participaţi la discuţie.

  • sdefrwggerg
  • Avatarul lui sdefrwggerg
  • Deconectat
  • Poster Pro
  • Poster Pro
    Enregistré
  • Postări: 32
  • Thanks: 21

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

acum 1 lună 5 zile - acum 1 lună 5 zile
#3904


www.sendspace.com/file/oa0rrv inclusiv all Configs
Ultima editare: acum 1 lună 5 zile de către sdefrwggerg.
Următorul utilizator(ori) v-au spus Mulțumesc: fhloston

Vă rugăm Autentificare sau Crează un cont să participaţi la discuţie.

  • AOnurY
  • Avatarul lui AOnurY
  • Deconectat
  • Poster 2
  • Poster 2
    Enregistré
  • Postări: 6
  • Thanks: 3

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

acum 4 săptămâni 1 zi
#3958

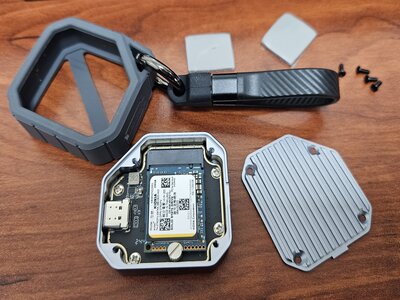

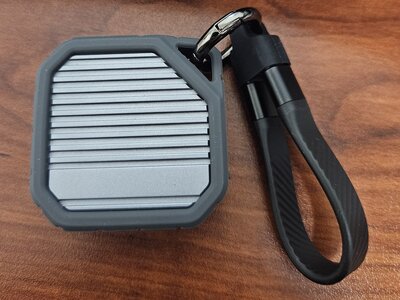

Hi guys, I just bought a new NVMe enclosure from Aliexpress. It's the tiny 2230 ones. The same box is sold under several different brand names. Mine is Colorii and I believe it's the original manufacturer. It has an RTL9210 controller. The firmware is extremely up to date, 1.33.98.

tr.aliexpress.com/item/1005006172693348....gatewayAdapt=glo2tur



**************************************************************
Device : [Port1] : Realtek RTL9210 NVME #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "Realtek"
PRODUCT : "RTL9210"
SERIAL : "012345679027"
SCSI_PRODUCT : "RTL9210 NVME    "
SCSI_VENDOR : "n/a"
USB_SELF_PWR : n/a
DISK_HOTPLUG : 0x00
LED : 0x01
PINMUX1 : 0x00000000
PINMUX2 : 0x00000000
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x70
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x01
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 07 02 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : 0x03
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : 0x01
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : 0x01
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a

Boot Mode : Flash
FW Ver : 1.33.98
FW Build Date : 2024.09.03
IC Pkg Type : PCIE
UUID : n/a

Disconn_ForceUSB2 : false


Următorul utilizator(ori) v-au spus Mulțumesc: Stasiz

Vă rugăm Autentificare sau Crează un cont să participaţi la discuţie.

  • admin
  • Avatarul lui admin Autor Subiect
  • Deconectat
  • Admin
  • Admin
    Administrateur
  • Postări: 781
  • Thanks: 383

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

acum 4 săptămâni 1 zi
#3959
Hi can you make a backup of the firmware?

Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Vă rugăm Autentificare sau Crează un cont să participaţi la discuţie.

  • AOnurY
  • Avatarul lui AOnurY
  • Deconectat
  • Poster 2
  • Poster 2
    Enregistré
  • Postări: 6
  • Thanks: 3

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

acum 4 săptămâni 21 ore
#3960
Of course, but I guess Mptool Lite can't do this job. I couldn't find the full version. If you help me, I can fix it. By the way, I have a question. The controller of this device is a simply 9210, can I use its firmware for 9210b-cg?

Vă rugăm Autentificare sau Crează un cont să participaţi la discuţie.
