Re: Realtek RTL9201R Firmware 1.32.7

pred 1 týždňom 5 dňami

#4557

@Shonk
For collection. SPI dump 1.33.3 from ShuoLe enclosure.

Code:

**************************************************************
Device : [Port6] : ShuoLe Super SSD #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x0000
MANUFACTURE : "ShuoLe "
PRODUCT : "ShuoLe  Super SSD"
SERIAL : "012345678950"
SCSI_PRODUCT : "Super SSD       "
SCSI_VENDOR : "ShuoLe  "
USB_SELF_PWR : n/a
DISK_HOTPLUG : 0x03
LED : n/a
PINMUX1 : n/a
PINMUX2 : n/a
U2_MAXPWR : n/a
U3_MAXPWR : n/a
ASPMDIS : n/a
PCIE_REFCLK : n/a
DISK_IPS_THRES : n/a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x64
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : 0x0000e100
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : 0x01
RAID_CFG : n/a

Boot Mode : Flash
FW Ver : 1.33.3
FW Build Date : 2023.09.27
IC Pkg Type : SATA
UUID : n/a

Disconn_ForceUSB2 : false

mega.nz/file/JQhRRLxA#ZE0Qzr15gpMYP8Hv6W...U134Uyr9l408NnG0n4vQ

Nasledujúci užívateľ(ia) povedali ďakujem: Shonk

Prosím Prihlásiť alebo Registrácia pre zdieľanie konverzácie.

Shonk
Autor témy
Offline
Big Poster
Enregistré
Príspevky: 77
Thanks: 30

Re: Realtek RTL9201R Firmware 1.32.7

pred 1 týždňom 5 dňami

#4558

thanks

did you remove the chip to dump it and confirm the dump was good with multiple dumps?

I found dumping in situ resulted in random corruption every dump was slightly different
so had to remove the chip

Prosím Prihlásiť alebo Registrácia pre zdieľanie konverzácie.

Stasiz
Offline
Poster 2
Enregistré
Príspevky: 5
Thanks: 1

Re: Realtek RTL9201R Firmware 1.32.7

pred 1 týždňom 2 dňami - pred 1 týždňom 2 dňami

#4565

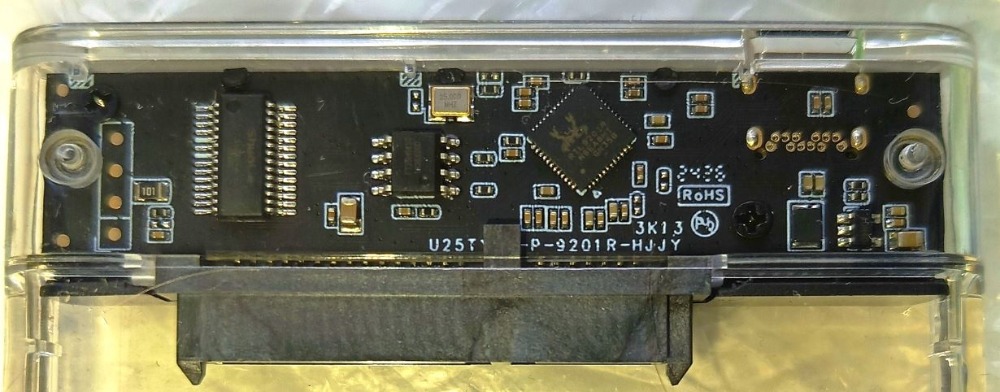

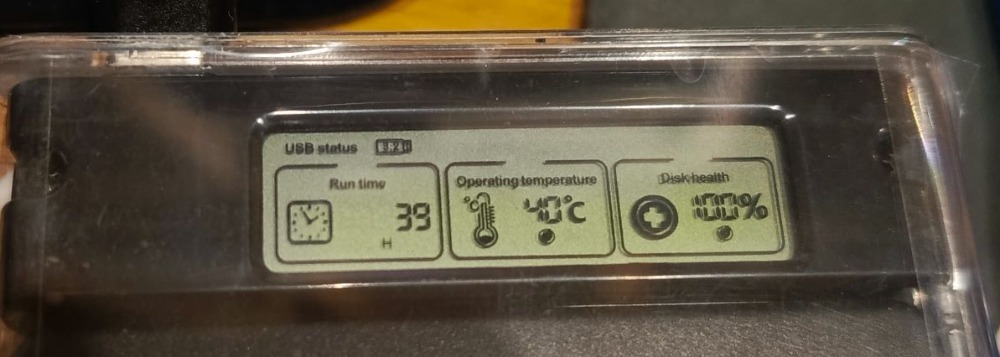

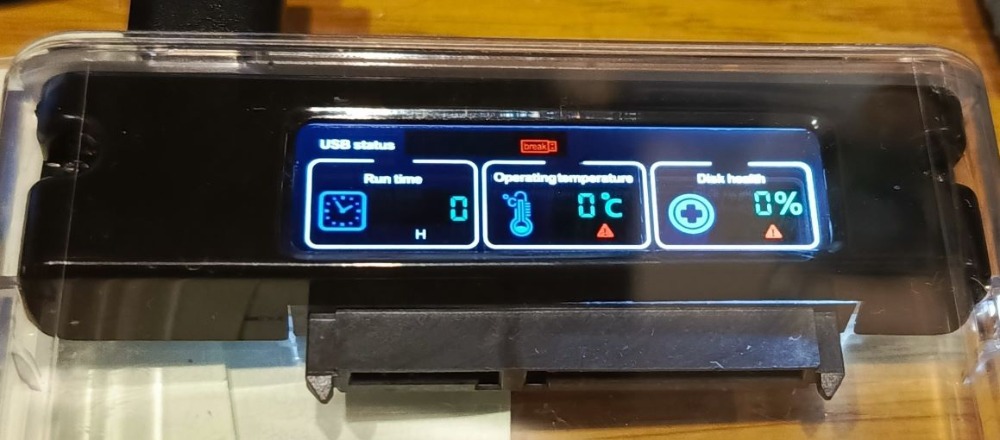

I did not unsolder the chip. First I made one dump of the box with a color screen with NeoProgrammer, the second dump I made with AsProgrammer. Both dumps were identical. With this dump I successfully flashed the box with a monochrome screen.
NeoProgrammer identifies memory in a case with a color screen as FT25H04, in a case with a monochrome screen as ZB25WD40.
In AsProgrammer I chose N25S40 Nantronics.

Before that I broke the smart information output on the case with a monochrome screen by flashing 1.32.7 firmware.
Apparently this firmware does not support the output of such information. Then I flashed your Cofre Disco Duro 1.33.88 SPI dump. This firmware is newer but does not have PERIPH_API = 0x01 in the configuration responsible for RTL9201R communication with an additional controller for display on the screen.

The original firmware in the case with a monochrome screen was 1.32.62

Code:

**************************************************************
Device : [Port5] : Realtek RTL9201 #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x9201
MANUFACTURE : "Realtek"
PRODUCT : "RTL9201"
SERIAL : "012345678921"
SCSI_PRODUCT : "RTL9201         "
SCSI_VENDOR : "Realtek "
USB_SELF_PWR : n/a
DISK_HOTPLUG : 0x03
LED : n/a
PINMUX1 : n/a
PINMUX2 : n/a
U2_MAXPWR : n/a
U3_MAXPWR : n/a
ASPMDIS : n/a
PCIE_REFCLK : n/a
DISK_IPS_THRES : n/a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x64
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : 0x0000e100
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : 0x01
RAID_CFG : n/a

Boot Mode : Flash
FW Ver : 1.32.62
FW Build Date : 2023.06.05
IC Pkg Type : SATA
UUID : n/a

Disconn_ForceUSB2 : false

Posledný krát upravené:pred 1 týždňom 2 dňami Stasiz

Prosím Prihlásiť alebo Registrácia pre zdieľanie konverzácie.

m.fessler
Offline
Newbie
Enregistré
Príspevky: 1
Thanks: 0

Re: Realtek RTL9201R Firmware 1.32.7

pred 1 týždňom 2 dňami

#4566

Hello,

I have an Orico 25PW1-C3 that apparently (also) ships with the RTL9201R.
I'm a complete newbie and don't have a programmer.
Is the bridge chip good so far, or does it have serious weaknesses?
UsbTreeView even says it's a 3.2 Gen 2 device (10 Gbps) – is that true, or is this a display error?

I would like to remove the sleep timer and rename "the case".
Is this possible with MPtool_Lite?
Would someone please be so kind as to briefly describe how?

Thank you in advance for any help!
Regards, Martin
