Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

pred 6 mesiacmi 3 týždnami
#3621
yes this is normally safe because we can return to the original firmware if there is a problem see the topic below
www.station-drivers.com/index.php/en/les...losures-usb-3-2-nvme


Configuration
Gigabyte Z890 Master, Intel Cpu Core Ultra 7 265K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX4060,  Alimentation Gigabyte 850W, Samsung SSD 990 Pro, SSD9100 Pro, Clavier Razer Black Window , Souris Razer, Boitier NZXT H6, HP Steelserie, Free Fibre Ultra (8Go/8Go), Lan 10Gb, Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Prosím Prihlásiť alebo Registrácia pre zdieľanie konverzácie.

  • AOnurY
  • AOnurY-ov Avatar
  • Offline
  • Poster 2
  • Poster 2
    Enregistré
  • Príspevky: 8
  • Thanks: 4

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

pred 6 mesiacmi 6 dňami
#3695
Hello,
I updated the firmware of my external drive using the Ugreen CM400 model RTL9210B-CG chipset. It is currently installed with version 1.33.7. I think I am currently experiencing a problem because I did not pay attention to some settings. Before the update, under Disk Drives in Device Manager, the name of the disk installed in the drive was shown as "SanDisk Extreme Pro 1TB USB Device". But now it is shown as "Realtek RTL9210B-CG USB Device". How can I revert it back to its previous state? Also, I am confused whether the latest version is 1.33.44 or 1.33.7

Prosím Prihlásiť alebo Registrácia pre zdieľanie konverzácie.

  • admin
  • admin-ov Avatar Autor témy
  • Neprítomný
  • Admin
  • Admin
    Administrateur
  • Príspevky: 311
  • Thanks: 99

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

pred 6 mesiacmi 6 dňami - pred 6 mesiacmi 6 dňami
#3698
Hi,

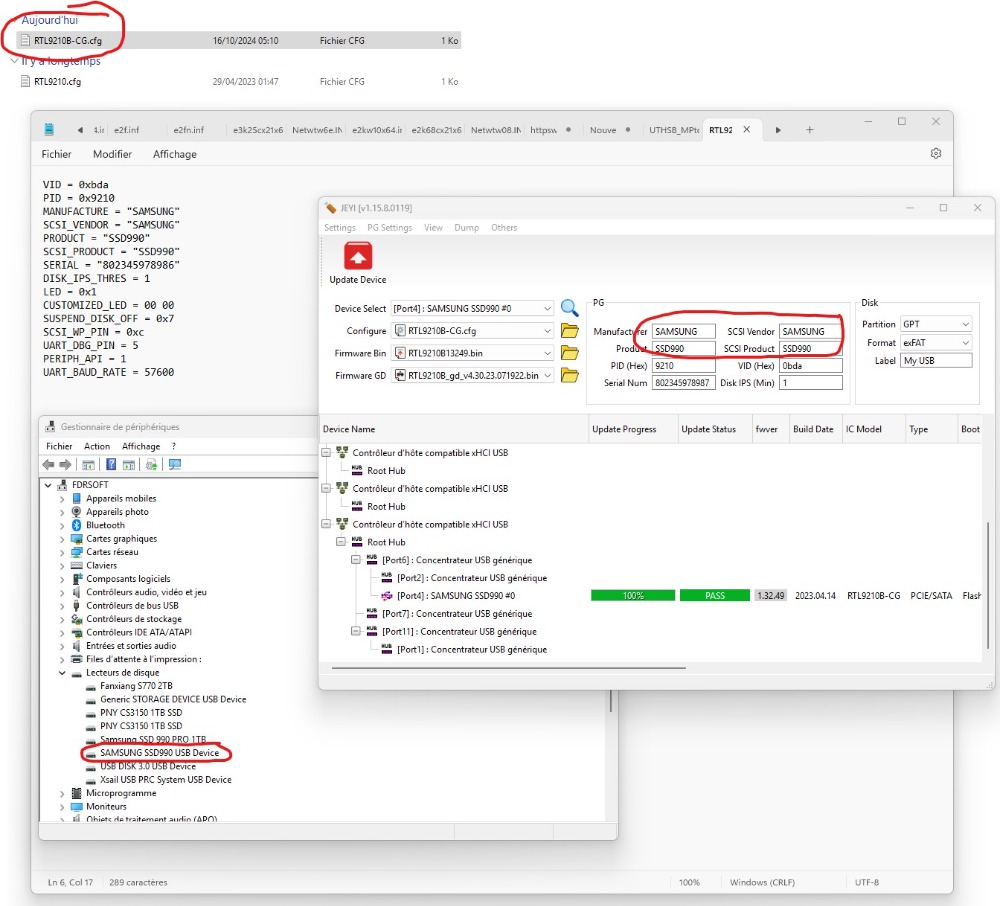

You need to edit the configuration file and change the name of the disk description header



Configuration
Gigabyte Z890 Master, Intel Cpu Core Ultra 7 265K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX4060,  Alimentation Gigabyte 850W, Samsung SSD 990 Pro, SSD9100 Pro, Clavier Razer Black Window , Souris Razer, Boitier NZXT H6, HP Steelserie, Free Fibre Ultra (8Go/8Go), Lan 10Gb, Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Posledný krát upravené:pred 6 mesiacmi 6 dňami admin
Nasledujúci užívateľ(ia) povedali ďakujem: AOnurY

Prosím Prihlásiť alebo Registrácia pre zdieľanie konverzácie.

  • AOnurY
  • AOnurY-ov Avatar
  • Offline
  • Poster 2
  • Poster 2
    Enregistré
  • Príspevky: 8
  • Thanks: 4

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

pred 6 mesiacmi 5 dňami - pred 5 mesiacmi 6 dňami
#3702
Thank you very much. I did as you said and it worked.

Update: I thought the problem was fixed, but it was just a masking. The "SanDisk Extreme Pro 1TB" data that I wrote in the PG section is permanent. When I plug another Nvme Disk (Knoxia brand) into the enclosure, "SanDisk Extreme Pro 1TB" continues to appear permanently in Device Manager Disk Drives. I remember writing down the brand and model of the disk that was plugged in before doing any updates. Please correct me if I'm wrong.

New update: When I deleted the "SCSI_PRODUCT =" and "SCSI_VENDOR" lines from the CFG file, the problem was solved.
Posledný krát upravené:pred 5 mesiacmi 6 dňami AOnurY
Nasledujúci užívateľ(ia) povedali ďakujem: admin

Prosím Prihlásiť alebo Registrácia pre zdieľanie konverzácie.

  • pt83
  • pt83-ov Avatar
  • Offline
  • Poster 2
  • Poster 2
    Enregistré
  • Príspevky: 7
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

pred 6 mesiacmi 1 dňom - pred 6 mesiacmi 1 dňom
#3733
Hello, I presently got a ORICO BM2C3-2N double bay SSD m2 box  that is using RTL9210 chipset. Please help me find the dump so I can upgrade the firmware. The current one is not possible to plug both bay at the same time because no identical ID.
I already downloaded flashing software from  github.com/bensuperpc/rtl9210-firmware
Product link:  www.orico.cc/usmobile/product/detail/id/7824
[IMG
Posledný krát upravené:pred 6 mesiacmi 1 dňom pt83
