--- SURVEY Are you satisfied with the S-D site? ---

Hello to all of you and thank you again for your loyalty,
Today I want to know if you are satisfied with the site since the change of the server and some touch-ups of the color and the change of the theme of the Forum.
Of course I am aware that there may still be work to do but the biggest part is done
Thank you for your answers
www.station-drivers.com/index.php/en/for...th-the-s-d-site#3618

ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

  • admin
  • admin-ov Avatar Autor témy
  • Neprítomný
  • Admin
  • Admin
    Administrateur
  • Príspevky: 741
  • Thanks: 374

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

pred 3 hodinami 9 minútami - pred 3 hodinami 4 minútami
#3881

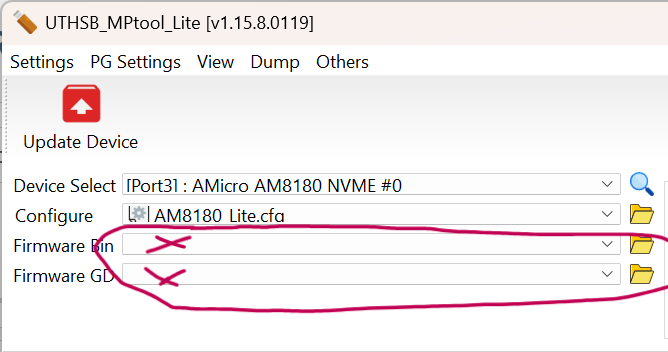

no were you sure that it is version A otherwise here is the procedure for recovery

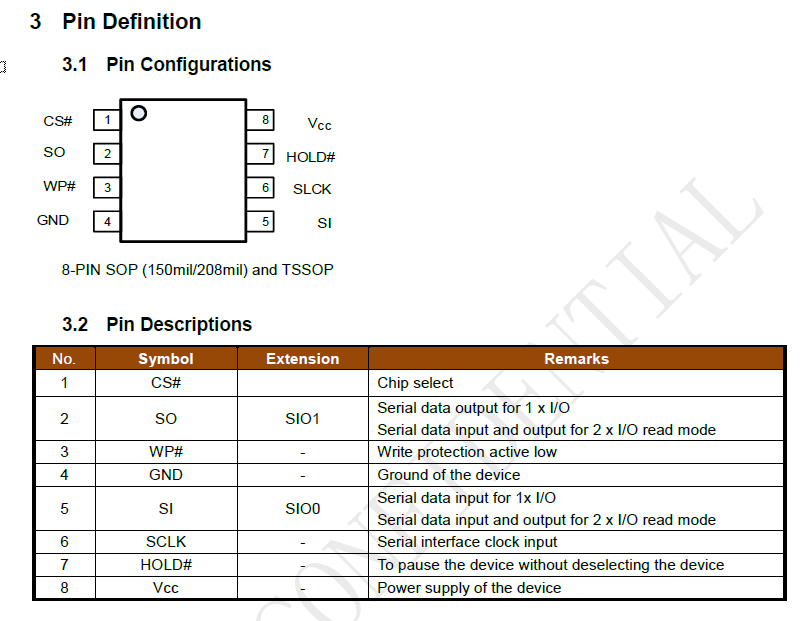

Check on the chipset if it is A or B

www.station-drivers.com/index.php/en/les...losures-usb-3-2-nvme

Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Posledný krát upravené:pred 3 hodinami 4 minútami admin

Prosím Prihlásiť alebo Registrácia pre zdieľanie konverzácie.

  • Blast Beat
  • Blast Beat-ov Avatar
  • Offline
  • Poster
  • Poster
    Enregistré
  • Príspevky: 5
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

pred 2 hodinami 31 minútami - pred 2 hodinami 13 minútami
#3882

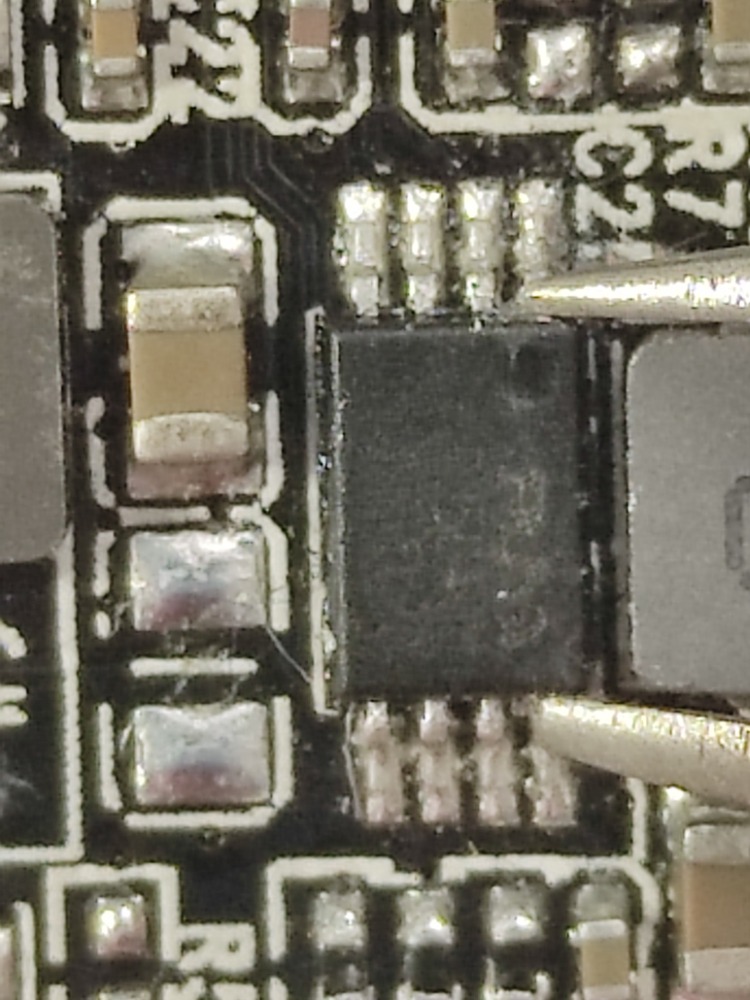

On the Chip for what i can read
RTL9210
JTU68EJ SK12

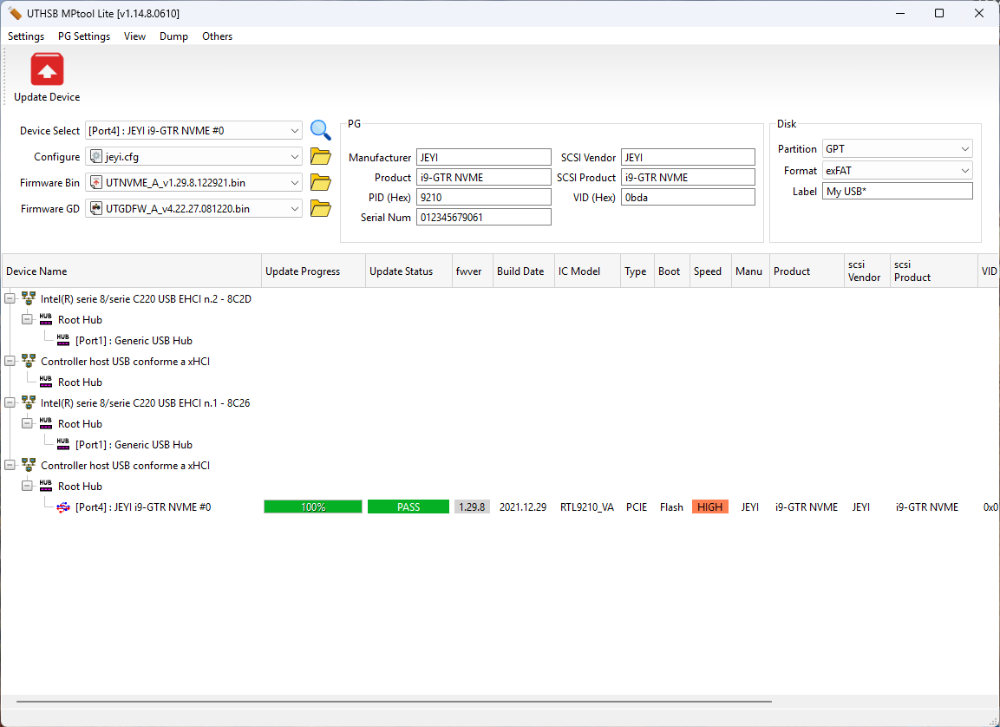

 While i try the procedure for recovery can you tell me for the
UTNVME_A_v1.29.8.122921.bin
wich one is the right?
UTGDFW_A_v1.25.14.041521.bin
UTGDFW_A_v4.22.27.081220.bin

Prílohy:

Posledný krát upravené:pred 2 hodinami 13 minútami Blast Beat

Prosím Prihlásiť alebo Registrácia pre zdieľanie konverzácie.

  • Blast Beat
  • Blast Beat-ov Avatar
  • Offline
  • Poster
  • Poster
    Enregistré
  • Príspevky: 5
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

pred 57 minútami
#3883
I wasted an entire day without success, unable to unbrick it
the chip is version A but looking for the what is written on the pcb i cam across this
www.amazon.it/wiianoxd-Adattatore-adatta...upport/dp/B0CG5JJPQH
Look like that the pcb even if it's made for the revision B got a chip revision A
Thanks anyway

Prosím Prihlásiť alebo Registrácia pre zdieľanie konverzácie.

  • admin
  • admin-ov Avatar Autor témy
  • Neprítomný
  • Admin
  • Admin
    Administrateur
  • Príspevky: 741
  • Thanks: 374

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

pred 35 minútami
#3884
Try one of the 2 files otherwise normally with the procedure below you can return to the default firmware to reflash it
Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Prosím Prihlásiť alebo Registrácia pre zdieľanie konverzácie.
