NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

  • Almighty1
  • Almighty1 Profilbild
  • Offline
  • Big Poster
  • Big Poster
    Enregistré
  • Inlägg: 42
  • Thanks: 32

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

6 månader 1 dag sedan - 6 månader 1 dag sedan
#
TheGiolly skrev:
Follow the instructions here for configuration
station-drivers.com/index.php/en/forum/e...-1-xx?start=265#2012
1.34.39.032625 is the latest version
Already read that as that is also mentioned at github.com/bensuperpc/rtl9210 , what I meant was I thought the downloaded firmware also comes with .cfg's of their own and admin I believe said to use the default cfg but do I basically replace the existing entries and leave the rest alone as-is?   So if the config file has like 30 different settings that are not ; as in commented out and the dump only had 20 settings, do I just replace the 20 settings and leave the other 10 as is?  What I am trying to ask is, will the original configuration file from the dump be enough or do they add new features/configuration settings that did not exist in the older firmwares?
Last edit: 6 månader 1 dag sedan by Almighty1.

Please Logga in eller Skapa ett konto to join the conversation.

  • Stasiz
  • Stasiz Profilbild
  • Offline
  • poster 3
  • poster 3
    Enregistré
  • Inlägg: 10
  • Thanks: 4

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

6 månader 1 dag sedan
#

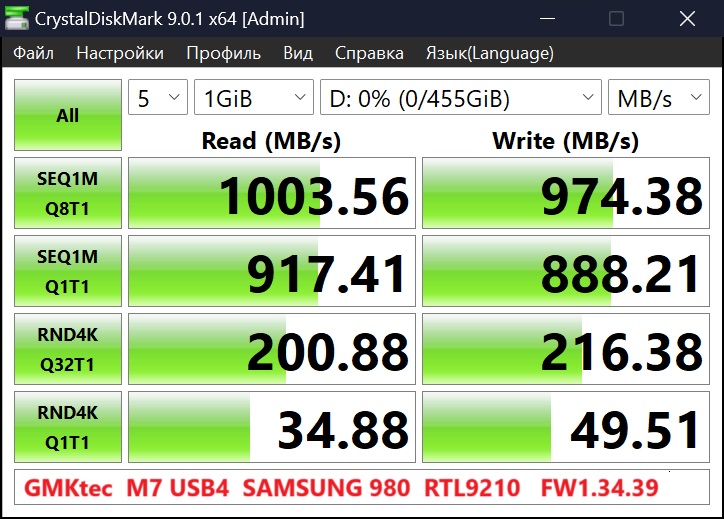

admin skrev:
Please feel free to provide feedback on this new firmware.
[img
 Works fine.

Följande användare sa tack: admin

Please Logga in eller Skapa ett konto to join the conversation.

  • Almighty1
  • Almighty1 Profilbild
  • Offline
  • Big Poster
  • Big Poster
    Enregistré
  • Inlägg: 42
  • Thanks: 32

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

6 månader 1 dag sedan
#
Fridira skrev:
Hi. Thanks for answering. But 5gbps is not about 625mb/s? I use cable 3.0 and in first time show me my 625mb/s speed but after speed down.
I use asus x415ea.
1x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps)
1x USB 3.2 Gen 1 Type-C (data speed up to 5Gbps)
Take the number(s) from the following table and divide by 8 to get the MB/sec so 5000 divided by 8 is 625.

[img

Please Logga in eller Skapa ett konto to join the conversation.

  • Almighty1
  • Almighty1 Profilbild
  • Offline
  • Big Poster
  • Big Poster
    Enregistré
  • Inlägg: 42
  • Thanks: 32

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

5 månader 4 veckor sedan - 5 månader 4 veckor sedan
#
SABRENT EC-SNVE newly bought from Amazon.com shipped/delivered on July 28, 2025. Stamped code 2509 which is probably Year 2025 Week 9 (February 23, 2025-March 1, 2025)
Stock Firmware v1.33.44.011824 (August 27, 2024)/v4.30.23.071922(GD)

Firmware v1.33.44.011824 (August 27, 2024)/v4.30.23.071922(GD)/UTHSB_MPtool_Lite_v1.15.8.0119 provided by SABRENT Technical Support
Download at:
download.ru/files/6FLKjNHh


[img


Dump
Code:
************************************************************** Device : [Port5] : Sabrent SSD #0 ************************************************************** U2PHY : n/a U3PHY : n/a VID : 0x0bda PID : 0x9210 MANUFACTURE : "Sabrent" PRODUCT : "Sabrent" SERIAL : "830720240913000A" SCSI_PRODUCT : "SSD " SCSI_VENDOR : "Sabrent " USB_SELF_PWR : 0x01 DISK_HOTPLUG : n/a LED : 0x01 PINMUX1 : n/a PINMUX2 : n/a U2_MAXPWR : n/a U3_MAXPWR : n/a ASPMDIS : n/a PCIE_REFCLK : n/a DISK_IPS_THRES : n/a SWR_1_2V : n/a EN_UPS : n/a PD : n/a CUSTOMIZED_LED : 0a 01 00 00 00 00 00 00 00 00 00 00 00 00 00 SUSPEND_LED_OFF : n/a FORCE_USB_SPEED : n/a FORCE_PCIE_SPEED : n/a EN_U1U2 : n/a FORCE_USB_QUIRK : n/a FORCE_PCIE_QUIRK : n/a FAN : n/a DIS_SHOW_EMPTY_DISK : 0x01 FORCE_SATA_NORMAL_DMA : n/a UART_DBG_PIN : 0x05 FINGER_PRINT_EN : n/a RM_INTERNAL_RD : n/a HS_AUTO_SWITCH : n/a UART_BAUD_RATE : n/a CUSTOMIZED_DISK_IDENTIFY : n/a HW_LED_CFG : n/a CDROM_CFG : n/a SUPPORT_HID : n/a LATE_INIT_DISK : n/a SCSI_WP_PIN : n/a SD_MMC_TYPE : n/a FORCE_PORT_TYPE : n/a BCDDEVICE : n/a SUSPEND_DISK_OFF : n/a SCSI_WB_PIN : n/a CUSTOMIZED_FEATURE : n/a PERIPH_API : n/a RAID_CFG : n/a Boot Mode : Flash FW Ver : 1.33.44 FW Build Date : 2024.01.18 IC Pkg Type : PCIE/SATA UUID : n/a Disconn_ForceUSB2 : false

Successfully updated to firmware v1.34.39.032625
[img


Question for @admin, what is the difference between these two firmware(s) v1.34.39.032625?
[img


Last edit: 5 månader 4 veckor sedan by Almighty1.

Please Logga in eller Skapa ett konto to join the conversation.

  • Almighty1
  • Almighty1 Profilbild
  • Offline
  • Big Poster
  • Big Poster
    Enregistré
  • Inlägg: 42
  • Thanks: 32

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

5 månader 4 veckor sedan - 5 månader 4 veckor sedan
#
As far as speed is concerned, right clicking on properties and then the removal policy and changing it to "Better performance" and then enable write cachinng should give maximum performance:
[img


I also don't use Isopropanol (Isopropyl Alcohol) to clean the connectors as for all electrical connections whether AC/DC including the cable connectors, battery contacts, light bulb contacts  and the SSD M.2 connector, I use a Caig DeOxit D5 which is a contact cleaner and it also improves conductivity and performance:
[img


Isopropanol (Isopropyl Alcohol) 99% is what I use to remove things like thermal pads, thermal grease.
Last edit: 5 månader 4 veckor sedan by Almighty1.
