ssd Soru NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

sdefrwggerg tarafından NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx konusunda yanıtlandı

Posted 5 ay 3 hafta önce #2295
Ask the manufacturer there's just no firmware for it and that's why you won't get any further.And this her is about RTL9210.
Yazan: sdefrwggerg

Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.

symbios24 tarafından NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx konusunda yanıtlandı

Posted 5 ay 2 hafta önce #2303
there is nowhere to ask about it, i search in the manufacturer and nothing.anyway thanks
Yazan: symbios24

Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.

sdefrwggerg tarafından NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx konusunda yanıtlandı

Posted 5 ay 2 hafta önce #2305
then all you have left to do is buy a new with RTL9210 chipset. Unfortunately, that's all you can do.

forums.raspberrypi.com/viewtopic.php?t=362991
Yazan: sdefrwggerg

Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.

anonHZQT tarafından NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx konusunda yanıtlandı

Posted 5 ay 2 hafta önce #2318
Hello
I just bought the asus tuf gaming a1, and I heard all that use realtek 9210b chipset should update it firmware, I search online and the tools seem to be from here.
I don't want to broke my tuf a1 so here I ask, how to update fw without breaking it. I read that if there is problem with the update, with dump info then I would know what the original parameter are, but how to revert the update with that dump info I save before perform an update?
If any one here can provide me step about what to do and answer me how to prevent it from brick that would be a lot of help (I read here there a bridge 1 and 8 pin to reset? but I'm not confidence enough to do that)

here is my dump info

**************************************************************
Device : [Port2] : TUF ESD-T1A #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0b05
PID : 0x1a8a
MANUFACTURE : "ASUSTek"
PRODUCT : "TUF Gaming A1"
SERIAL : "NBD0AP055936"
SCSI_PRODUCT : "ESD-T1A         "
SCSI_VENDOR : "TUF     "
USB_SELF_PWR : n/a
DISK_HOTPLUG : 0x00
LED : 0x01
PINMUX1 : 0x00000000
PINMUX2 : 0x00000000
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x70
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : n/a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : n/a
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : 0x80000081
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a

Boot Mode : Flash
FW Ver : 1.29.391
FW Build Date : 2022.07.28
IC Pkg Type : PCIE/SATA
UUID : n/a

Disconn_ForceUSB2 : false

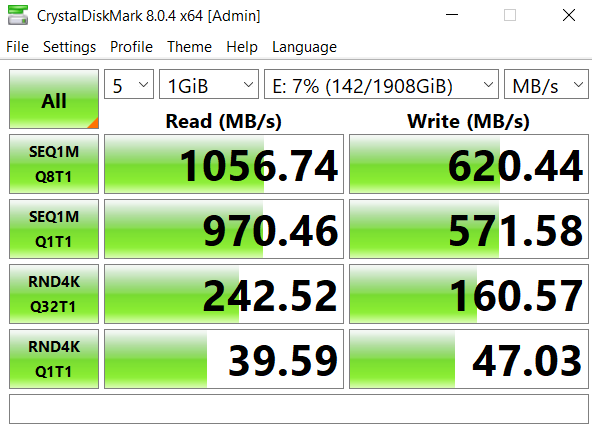

the reason I want to update my tuf a1 is because the writing speed, reading speed is as what the spec was, but the writing speed is not.

Yazan: anonHZQT

Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.

admin tarafından NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx konusunda yanıtlandı

Posted 5 ay 2 hafta önce #2319
Hi, you can update it without any problem, you just need to retrieve the configuration file to use it for the update
www.station-drivers.com/index.php/en/les...t-asus-tuf-gaming-a1



Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Yazan: admin

Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.
