NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Galixte
Offline
poster 3
Enregistré
文章： 12
Thanks: 6

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

2 年 4 星期前 - 2 年 4 星期前

#1051

You can flash without SSD inside the USB enclosure. This parameter allows it:

Code:

DIS_SHOW_EMPTY_DISK : 0x01

🖥️📜⚙️ Mes babioles (hardware config) .

Last edit: 2 年 4 星期前 by Galixte.

The following user(s) said Thank You: admin

Please 登錄 or 新增帳號 to join the conversation.

ethereal
Offline
poster 3
Enregistré
文章： 10
Thanks: 1

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

2 年 3 星期前

#1053

Machi007 寫了道：:

If anyone is interested in testing, here is the latest firmware from JEYI - version 1.32.49:
krakenfiles.com/view/jqXPOCvl13/file.html
I flashed it on my ORICO enclosure with custom config file and everything works fine.

Thanks for providing this firmware.

Today I've flashed it to my Sabrent EC-SNVE and everything seems fine so far.

Please 登錄 or 新增帳號 to join the conversation.

cyberops
Offline
Poster 2
Enregistré
文章： 5
Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

2 年 3 星期前 - 2 年 3 星期前

#1056

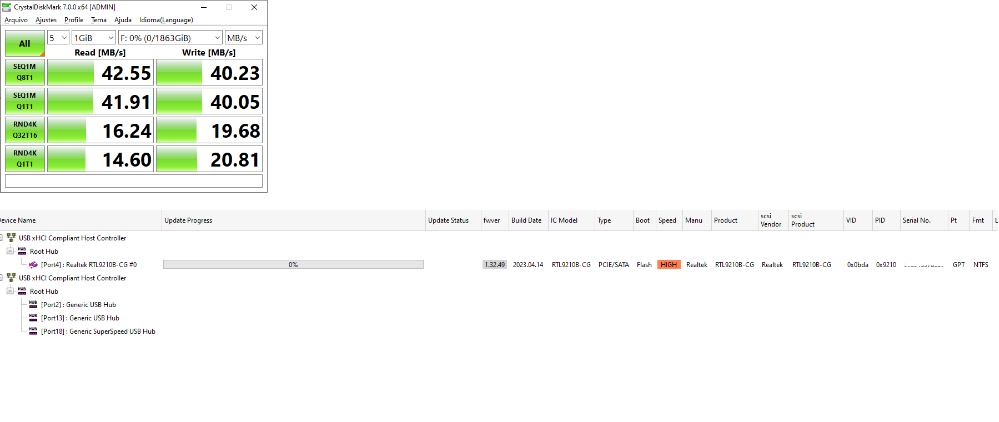

hello, i have an orico M2PJM-C3 with a RTL9210B with a Western Digital Green SN350. i have updated the firmware to 1.32.49 and i have this crystaldiskmark results. what am i doing wrong?
I also tried to run ubuntu and keep getting the drive to shutdown apparently. dont know what is happening.

Last edit: 2 年 3 星期前 by cyberops.

Please 登錄 or 新增帳號 to join the conversation.

spike_V_sky
Offline
poster 3
Enregistré
文章： 10
Thanks: 3

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

2 年 3 星期前 - 2 年 3 星期前

#1057

@cyberops

Have you used the correct config file from your enclouser when you flashed the new firmware ?
Have you checked if the usb port where the enclouser is connect is 3.1 or 2.0 ?

Last edit: 2 年 3 星期前 by spike_V_sky.

The following user(s) said Thank You: cyberops

Please 登錄 or 新增帳號 to join the conversation.

admin
Topic Author
Offline
Admin
Administrateur
文章： 353
Thanks: 133

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

2 年 3 星期前 - 2 年 3 星期前

#1058

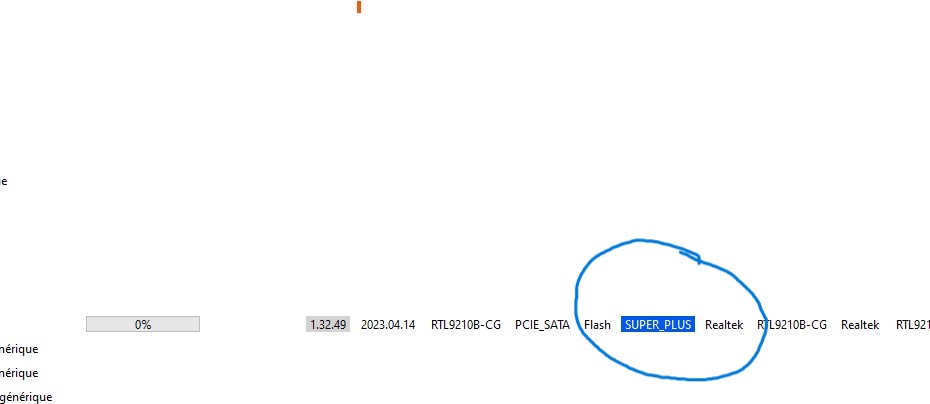

spike_V_sky you are absolutely right, check that you have connected to a USB 3.2 port

USB port speed

USB 2.x

USB 3.0/3.1

USB 3.2
