ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

  • sdefrwggerg
  • sdefrwggerg 的個人頭像
  • 离线
  • Poster Pro
  • Poster Pro
    Enregistré
  • 文章: 32
  • Thanks: 21

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

11 個月 1 星期 前
#2295
Ask the manufacturer there's just no firmware for it and that's why you won't get any further.And this her is about RTL9210.

Please 登錄新增帳號 to join the conversation.

  • symbios24
  • symbios24 的個人頭像
  • 离线
  • Newbie
  • Newbie
    Enregistré
  • 文章: 3
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

11 個月 1 星期 前
#2303
there is nowhere to ask about it, i search in the manufacturer and nothing.anyway thanks

Please 登錄新增帳號 to join the conversation.

  • sdefrwggerg
  • sdefrwggerg 的個人頭像
  • 离线
  • Poster Pro
  • Poster Pro
    Enregistré
  • 文章: 32
  • Thanks: 21

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

11 個月 1 星期 前
#2305
then all you have left to do is buy a new with RTL9210 chipset. Unfortunately, that's all you can do.

forums.raspberrypi.com/viewtopic.php?t=362991

Please 登錄新增帳號 to join the conversation.

  • anonHZQT
  • anonHZQT 的個人頭像
  • 离线
  • poster 3
  • poster 3
    Enregistré
  • 文章: 12
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

11 個月 4 天 前
#2318
Hello
I just bought the asus tuf gaming a1, and I heard all that use realtek 9210b chipset should update it firmware, I search online and the tools seem to be from here.
I don't want to broke my tuf a1 so here I ask, how to update fw without breaking it. I read that if there is problem with the update, with dump info then I would know what the original parameter are, but how to revert the update with that dump info I save before perform an update?
If any one here can provide me step about what to do and answer me how to prevent it from brick that would be a lot of help (I read here there a bridge 1 and 8 pin to reset? but I'm not confidence enough to do that)

here is my dump info

**************************************************************
Device : [Port2] : TUF ESD-T1A #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0b05
PID : 0x1a8a
MANUFACTURE : "ASUSTek"
PRODUCT : "TUF Gaming A1"
SERIAL : "NBD0AP055936"
SCSI_PRODUCT : "ESD-T1A         "
SCSI_VENDOR : "TUF     "
USB_SELF_PWR : n/a
DISK_HOTPLUG : 0x00
LED : 0x01
PINMUX1 : 0x00000000
PINMUX2 : 0x00000000
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x70
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : n/a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : n/a
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : 0x80000081
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a

Boot Mode : Flash
FW Ver : 1.29.391
FW Build Date : 2022.07.28
IC Pkg Type : PCIE/SATA
UUID : n/a

Disconn_ForceUSB2 : false

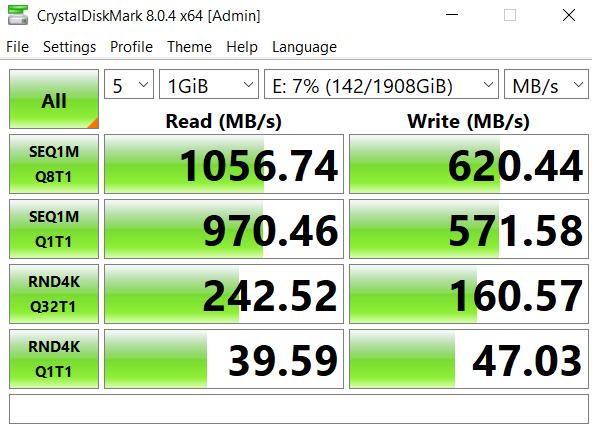

the reason I want to update my tuf a1 is because the writing speed, reading speed is as what the spec was, but the writing speed is not.

Please 登錄新增帳號 to join the conversation.

  • admin
  • admin 的個人頭像 Topic Author
  • 离线
  • Admin
  • Admin
    Administrateur
  • 文章: 781
  • Thanks: 383

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

11 個月 4 天 前
#2319
Hi, you can update it without any problem, you just need to retrieve the configuration file to use it for the update
www.station-drivers.com/index.php/en/les...t-asus-tuf-gaming-a1


Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Please 登錄新增帳號 to join the conversation.
