NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
- GarryMoveOut
-
- 离线
- Newbie
-
Enregistré
- 文章： 1
- Thanks: 0
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
10 個月 4 天 前 - 10 個月 4 天 前

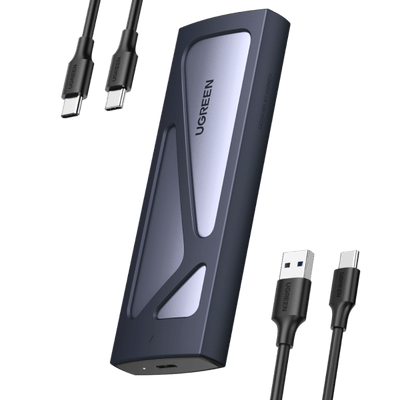

Recently I bought this Ugreen NVME M2 USB adapter, model CM578.
Oryginal dump:
I successfully updated RTL9210 firmware to 1.32.87.082923 but I still have problem with this enclosure.
When I connect it to my PC to USB 3.2 gen 2 I get max 425MB/s parrel read. I tried with USB A and USB C cable from enclosure set. I don't have other cables or PC to test it more.
On Raspberry Pi 5 I've got worse problems. Before update enclosure was disconnecting during heavy IO operations from docker containers. Synthethic fio doesn't cause problems. After update things are even wores. Even disk is idle, enclosure keeps disconnecting and connecting. I've tried active hubs, connecting to USB 2.0 with no success.
Oryginal dump:
警告：此處有隱藏內容，請點擊閱讀!
I successfully updated RTL9210 firmware to 1.32.87.082923 but I still have problem with this enclosure.
When I connect it to my PC to USB 3.2 gen 2 I get max 425MB/s parrel read. I tried with USB A and USB C cable from enclosure set. I don't have other cables or PC to test it more.
On Raspberry Pi 5 I've got worse problems. Before update enclosure was disconnecting during heavy IO operations from docker containers. Synthethic fio doesn't cause problems. After update things are even wores. Even disk is idle, enclosure keeps disconnecting and connecting. I've tried active hubs, connecting to USB 2.0 with no success.
Last edit: 10 個月 4 天 前 by GarryMoveOut. 原因: Formating
- admin
-
Topic Author
- 离线
- Admin
-
Administrateur
- 文章： 779
- Thanks: 383
- ax, dx
-
- 离线
- Newbie
-
Enregistré
- 文章： 1
- Thanks: 0
- ersds
-
- 离线
- Newbie
-
Enregistré
- 文章： 1
- Thanks: 0
- done_pt
-
- 离线
- Newbie
-
Enregistré
- 文章： 1
- Thanks: 0
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
10 個月 17 小時 前
Like a fool, I did not do a dump before updating... help?
My chip is the RTL9210 l5CF8ER GNO5B, so I assume it's the A chip, not the B but all the latest firmware updaters I've tried don't let me select the B version .bins.
Updating with the B bins did fix my issues with WD SN770 NVME's on Mac but I messed up the LED behavior, editing the config settings like:
LED = 0x1 - Does not turn off the LED, it doesn't seem to do anything. Ideally, I'd want the LED to turn off when idle and on when working, but just always on and blinking when working is fine too I guess.
I also tried LED = 0x2 / 0x3
and
RM_INTERNAL_RD = 0x1
SUSPEND_LED_OFF = 0x1
The LED is still always on even when ejected.
I must be missing something obvious.
My chip is the RTL9210 l5CF8ER GNO5B, so I assume it's the A chip, not the B but all the latest firmware updaters I've tried don't let me select the B version .bins.
警告：此處有隱藏內容，請點擊閱讀!
Updating with the B bins did fix my issues with WD SN770 NVME's on Mac but I messed up the LED behavior, editing the config settings like:
LED = 0x1 - Does not turn off the LED, it doesn't seem to do anything. Ideally, I'd want the LED to turn off when idle and on when working, but just always on and blinking when working is fine too I guess.
I also tried LED = 0x2 / 0x3
and
RM_INTERNAL_RD = 0x1
SUSPEND_LED_OFF = 0x1
The LED is still always on even when ejected.
I must be missing something obvious.
