Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 年 8 個月 前
I think yes that the firmware does not support other controllers than Realtek RTL9210, that would explain the crash.
I think sdefrwggerg will be more expert than me
I think sdefrwggerg will be more expert than me
Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060, Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Please 登錄 或 新增帳號 to join the conversation.
- wade7575
- 离线
- Best Poster
-
Enregistré
- 文章: 45
- Thanks: 7
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 年 8 個月 前 - 1 年 8 個月 前
I have been messing around with my Unionsine enclosure's that have an RTL9210B controller and I there is one thing I can't understand.
I have flashed my enclosure with configure files RTL9210_Lite_10.cfg and SN942_Lite.cfg
What I don't understand is that when open these 2 configure files they are clearly different.
RTL9210_Lite_10.cfg
SERIAL = "012345678904"
CFEXPRESS = 0x0
LED = 0x1
PINMUX1 = 0x70000
PINMUX2 = 0x0
U2_MAXPWR = 0xfa
U3_MAXPWR = 0x70
ASPMDIS = 0x0
;10 minutes of idle time will disable pcie power
;PCIE_PWRCUT_THRES = 0xa
;EN_UPS = 0x0
;PD = 0x0
;CUSTOMIZED_LED is 15 bytes
;CUSTOMIZED_LED = 00
;SUSPEND_LED_OFF = 0x0
;FAN = 0x0
;DIS_SHOW_EMPTY_DISK = 0x1
;UART_DBG_PIN = 5
;=================Tool Configure=================
;DISCONN_FORCE_USB2 = n
;FORMAT_DISK = n
;INC_SERIAL = y
;PARTITION: GPT, MBR
PARTITION = "MBR"
;FORMAT: NTFS, exFAT
FORMAT = "NTFS"
;LABEL max allowed - characters
LABEL = "My USB"
and SN942_Lite.cfg
;Configure Start
;=================FW Configure=================
U2PHY = 02 f4 9b e0 e1
U3PHY = 02 d4 09 00 d5 00 80
VID = 0xbda
PID = 0x9210
MANUFACTURE = "Realtek"
SCSI_VENDOR = "Realtek"
PRODUCT = "RTL9210"
SCSI_PRODUCT = "RTL9210 NVME"
SERIAL = "012345678904"
CFEXPRESS = 0x0
LED = 0x1
PINMUX1 = 0x0
PINMUX2 = 0x0
U2_MAXPWR = 0xfa
U3_MAXPWR = 0x70
ASPMDIS = 0x1
;5 minutes of idle time will disable pcie power
PCIE_PWRCUT_THRES = 0x5
EN_UPS = 0x1
PD = 0x1
;CUSTOMIZED_LED is 15 bytes
CUSTOMIZED_LED = 02 01 07
;=================Tool Configure=================
;PARTITION: GPT, MBR
PARTITION = "MBR"
;FORMAT: NTFS, exFAT
FORMAT = "NTFS"
;LABEL max allowed - characters
LABEL = "My USB"
As you can see that the 2 files are clearly different by what I copied and pasted above,what my problem is that when I check the dump file after flashing the enclosure with the different configure files the dump files look nothing like what the configure file that was used when I flashed the firmware.
I thought the purpose of being able to see the dump file was so that you can save the enclosure's configure settings for when you want to upgrade the firmware and use the same setting's.
As you can see you can see the power off time or anything about Led values or anything.
**************************************************************
Device : Realtek RTL9210 NVME
**************************************************************
U2PHY : 02 f4 9b e0 e1
U3PHY : 02 d4 09 00 d5 00 80
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "Realtek"
PRODUCT : "RTL9210"
SERIAL : "012345678904"
SCSI_PRODUCT : "RTL9210 NVME "
SCSI_VENDOR : "Realtek "
DISK_HOTPLUG : n/a
LED : 0x01
PINMUX1 : 0x00070000
PINMUX2 : 0x00000000
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x70
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : n/a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : n/a
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : n/a
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
Boot Mode : Flash
FW Ver : 1.32.16
FW Build Date : 2023.01.09
IC Pkg Type : PCIE_SATA
UUID : n/a
Disconn_ForceUSB2 : false
I have flashed my enclosure with configure files RTL9210_Lite_10.cfg and SN942_Lite.cfg
What I don't understand is that when open these 2 configure files they are clearly different.
RTL9210_Lite_10.cfg
SERIAL = "012345678904"
CFEXPRESS = 0x0
LED = 0x1
PINMUX1 = 0x70000
PINMUX2 = 0x0
U2_MAXPWR = 0xfa
U3_MAXPWR = 0x70
ASPMDIS = 0x0
;10 minutes of idle time will disable pcie power
;PCIE_PWRCUT_THRES = 0xa
;EN_UPS = 0x0
;PD = 0x0
;CUSTOMIZED_LED is 15 bytes
;CUSTOMIZED_LED = 00
;SUSPEND_LED_OFF = 0x0
;FAN = 0x0
;DIS_SHOW_EMPTY_DISK = 0x1
;UART_DBG_PIN = 5
;=================Tool Configure=================
;DISCONN_FORCE_USB2 = n
;FORMAT_DISK = n
;INC_SERIAL = y
;PARTITION: GPT, MBR
PARTITION = "MBR"
;FORMAT: NTFS, exFAT
FORMAT = "NTFS"
;LABEL max allowed - characters
LABEL = "My USB"
and SN942_Lite.cfg
;Configure Start
;=================FW Configure=================
U2PHY = 02 f4 9b e0 e1
U3PHY = 02 d4 09 00 d5 00 80
VID = 0xbda
PID = 0x9210
MANUFACTURE = "Realtek"
SCSI_VENDOR = "Realtek"
PRODUCT = "RTL9210"
SCSI_PRODUCT = "RTL9210 NVME"
SERIAL = "012345678904"
CFEXPRESS = 0x0
LED = 0x1
PINMUX1 = 0x0
PINMUX2 = 0x0
U2_MAXPWR = 0xfa
U3_MAXPWR = 0x70
ASPMDIS = 0x1
;5 minutes of idle time will disable pcie power
PCIE_PWRCUT_THRES = 0x5
EN_UPS = 0x1
PD = 0x1
;CUSTOMIZED_LED is 15 bytes
CUSTOMIZED_LED = 02 01 07
;=================Tool Configure=================
;PARTITION: GPT, MBR
PARTITION = "MBR"
;FORMAT: NTFS, exFAT
FORMAT = "NTFS"
;LABEL max allowed - characters
LABEL = "My USB"
As you can see that the 2 files are clearly different by what I copied and pasted above,what my problem is that when I check the dump file after flashing the enclosure with the different configure files the dump files look nothing like what the configure file that was used when I flashed the firmware.
I thought the purpose of being able to see the dump file was so that you can save the enclosure's configure settings for when you want to upgrade the firmware and use the same setting's.
As you can see you can see the power off time or anything about Led values or anything.
**************************************************************
Device : Realtek RTL9210 NVME
**************************************************************
U2PHY : 02 f4 9b e0 e1
U3PHY : 02 d4 09 00 d5 00 80
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "Realtek"
PRODUCT : "RTL9210"
SERIAL : "012345678904"
SCSI_PRODUCT : "RTL9210 NVME "
SCSI_VENDOR : "Realtek "
DISK_HOTPLUG : n/a
LED : 0x01
PINMUX1 : 0x00070000
PINMUX2 : 0x00000000
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x70
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : n/a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : n/a
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : n/a
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
Boot Mode : Flash
FW Ver : 1.32.16
FW Build Date : 2023.01.09
IC Pkg Type : PCIE_SATA
UUID : n/a
Disconn_ForceUSB2 : false
Last edit: 1 年 8 個月 前 by wade7575.
Please 登錄 或 新增帳號 to join the conversation.
- admin
- Topic Author
- 离线
- Admin
-
Administrateur
- 文章: 779
- Thanks: 382
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 年 8 個月 前 - 1 年 8 個月 前
here is mine from Unionsime copy of the hikvision
www.station-drivers.com/index.php/en-us/...-hikvision-enclosure
**************************************************************
Device : [Port19] : Unionsine MD202 #0
**************************************************************
U2PHY : 02 f4 9b e0 e1
U3PHY : 02 d4 09 00 d5 00 80
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "Unionsine"
PRODUCT : "MD202"
SERIAL : "012345679545"
SCSI_PRODUCT : "Unionsine MD202 "
SCSI_VENDOR : " "
DISK_HOTPLUG : 0x00
LED : 0x02
PINMUX1 : 0x00000000
PINMUX2 : 0x00000700
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x00
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x0a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : n/a
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
FP_UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
EFUSE :
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
0 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
10 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
20 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
30 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
40 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
50 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
60 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
70 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
80 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
90 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
a0 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
b0 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
Boot Mode : Flash NM
FW Ver : 1.29.12
FW Build Date : 2022.01.11
IC Ver : 0xa0010002
IC Pkg Type : PCIE_SATA
UUID : ffffffff-ffff-ffff-ffff-ffffffffffff
Disconn_ForceUSB2 : 0x00
www.station-drivers.com/index.php/en-us/...-hikvision-enclosure
**************************************************************
Device : [Port19] : Unionsine MD202 #0
**************************************************************
U2PHY : 02 f4 9b e0 e1
U3PHY : 02 d4 09 00 d5 00 80
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "Unionsine"
PRODUCT : "MD202"
SERIAL : "012345679545"
SCSI_PRODUCT : "Unionsine MD202 "
SCSI_VENDOR : " "
DISK_HOTPLUG : 0x00
LED : 0x02
PINMUX1 : 0x00000000
PINMUX2 : 0x00000700
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x00
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x0a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : n/a
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
FP_UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
EFUSE :
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
0 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
10 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
20 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
30 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
40 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
50 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
60 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
70 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
80 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
90 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
a0 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
b0 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
Boot Mode : Flash NM
FW Ver : 1.29.12
FW Build Date : 2022.01.11
IC Ver : 0xa0010002
IC Pkg Type : PCIE_SATA
UUID : ffffffff-ffff-ffff-ffff-ffffffffffff
Disconn_ForceUSB2 : 0x00
Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060, Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Last edit: 1 年 8 個月 前 by admin.
Please 登錄 或 新增帳號 to join the conversation.
- wade7575
- 离线
- Best Poster
-
Enregistré
- 文章: 45
- Thanks: 7
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 年 8 個月 前

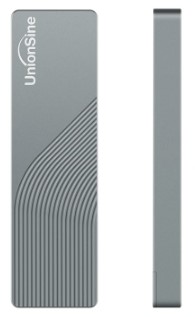

I'm getting 2 more of these enclosure's soon they should arrive around the middle of this coming week,I will look at the dump file this and see what it say's,I didn't know about looking at the dump file before flashing the one I have right now.
Please 登錄 或 新增帳號 to join the conversation.
- mushroom
- 离线
- Newbie
-
Enregistré
- 文章: 2
- Thanks: 0
建立頁面時間:0.086 秒
