Question NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
Replied by Shonk on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
Posted 1 주 5 일 전 #3036
There are 3 versions of the chip
Well 1 version of the chip but 3 versions of the pcb
NVME
SATA
SATA/NVME
my guess is you ordered the NVME only version
Well 1 version of the chip but 3 versions of the pcb
NVME
SATA
SATA/NVME
my guess is you ordered the NVME only version
작성자 Shonk
Please Log in or 회원가입하기! to join the conversation.
Replied by lapis on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
Posted 1 주 4 일 전 #3037
OK, I suppose that those item descriptions on Aliexpress can't be trusted... ![:-D :-D](/bigsmile.gif)
It was this "CoolFish M2 SSD Case NVMe SATA Dual Protocol" for a bit over 3$.
I suppose there is no way to add SATA support by firmware or some easy mod?
![:-D :-D](/bigsmile.gif)
It was this "CoolFish M2 SSD Case NVMe SATA Dual Protocol" for a bit over 3$.
I suppose there is no way to add SATA support by firmware or some easy mod?
작성자 lapis
Please Log in or 회원가입하기! to join the conversation.
Replied by Laroldski on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
Posted 4 일 5 시 전 #3070OK, I suppose that those item descriptions on Aliexpress can't be trusted...
It was this "CoolFish M2 SSD Case NVMe SATA Dual Protocol" for a bit over 3$.
I suppose there is no way to add SATA support by firmware or some easy mod?
@lapis If you want a great ssd enclosure for NVMe ssd's try the one in the link in black it has an RTL9210 controller the other one in grey has a JMS583 controller,their not much more money and way better built then those coolfish ones.
www.aliexpress.com/item/1005006437088311...in.29.27c11802Al6Vvk
작성자 Laroldski
Please Log in or 회원가입하기! to join the conversation.
Replied by ole258 on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
Posted 4 일 25 분 전 #3073

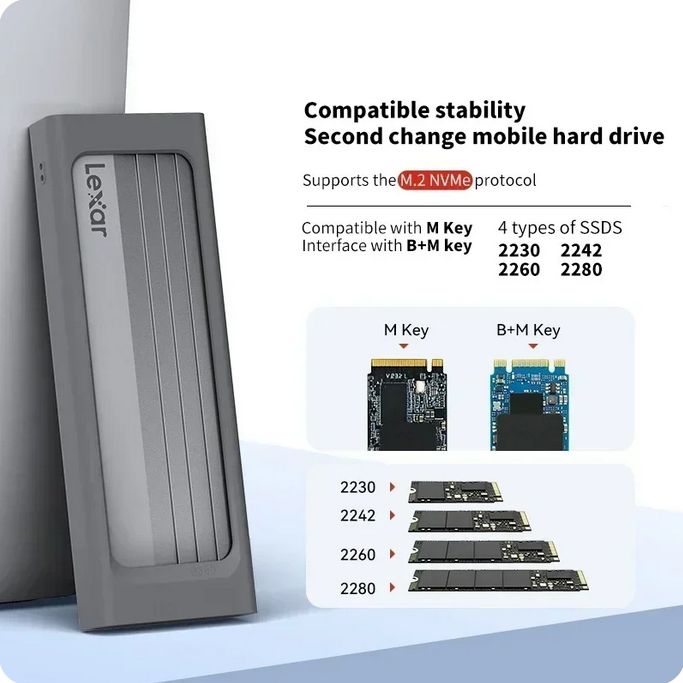

I have bought a
Lexar E300
NVME enclosure.
Here is the Dump:
In comparison to most other Dumps, there are much values marked as "n/a".
For example:
U2PHY = 02 f4 9b e0 e1
U3PHY = 02 d4 09 00 d5 00 80
DISK_HOTPLUG = 0x0
PINMUX1 = 0x0
PINMUX2 = 0x700
U2_MAXPWR = 0xfa
U3_MAXPWR = 0x0
ASPMDIS = 0x0
For what are these values for?
Is it recommended to add it at the config file?
Here is the Dump:
경고: 스포일러!
**************************************************************
Device : [Port8] : Lexar E300 #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x21c4
PID : 0xb083
MANUFACTURE : "Lexar"
PRODUCT : "E300"
SERIAL : "012345683084"
SCSI_PRODUCT : "E300 "
SCSI_VENDOR : "Lexar "
USB_SELF_PWR : n/a
DISK_HOTPLUG : n/a
LED : 0x02
PINMUX1 : n/a
PINMUX2 : n/a
U2_MAXPWR : n/a
U3_MAXPWR : n/a
ASPMDIS : n/a
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x0a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : n/a
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a
Boot Mode : Flash
FW Ver : 1.32.87
FW Build Date : 2023.08.29
IC Pkg Type : PCIE
UUID : n/a
Disconn_ForceUSB2 : false
Device : [Port8] : Lexar E300 #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x21c4
PID : 0xb083
MANUFACTURE : "Lexar"
PRODUCT : "E300"
SERIAL : "012345683084"
SCSI_PRODUCT : "E300 "
SCSI_VENDOR : "Lexar "
USB_SELF_PWR : n/a
DISK_HOTPLUG : n/a
LED : 0x02
PINMUX1 : n/a
PINMUX2 : n/a
U2_MAXPWR : n/a
U3_MAXPWR : n/a
ASPMDIS : n/a
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x0a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : n/a
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a
Boot Mode : Flash
FW Ver : 1.32.87
FW Build Date : 2023.08.29
IC Pkg Type : PCIE
UUID : n/a
Disconn_ForceUSB2 : false
In comparison to most other Dumps, there are much values marked as "n/a".
For example:
U2PHY = 02 f4 9b e0 e1
U3PHY = 02 d4 09 00 d5 00 80
DISK_HOTPLUG = 0x0
PINMUX1 = 0x0
PINMUX2 = 0x700
U2_MAXPWR = 0xfa
U3_MAXPWR = 0x0
ASPMDIS = 0x0
For what are these values for?
Is it recommended to add it at the config file?
Last Edit:4 일 18 분 전
작성자 ole258
Last edit: 4 일 18 분 전 by ole258.
Please Log in or 회원가입하기! to join the conversation.
