ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

  • Shonk
  • Avatar de Shonk
  • Desligado
  • Super Utilisateur
  • Super Utilisateur
    Enregistré
  • Mensagens: 146
  • Thanks: 54

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

6 meses 4 dias atrás
#3036
There are 3 versions of the chip

Well 1 version of the chip but 3 versions of the pcb

NVME
SATA
SATA/NVME

my guess is you ordered the NVME only version

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.

  • lapis
  • Avatar de lapis
  • Desligado
  • Newbie
  • Newbie
    Enregistré
  • Mensagens: 2
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

6 meses 3 dias atrás
#3037
OK, I suppose that those item descriptions on Aliexpress can't be trusted... :-D
It was this "CoolFish M2 SSD Case NVMe SATA Dual Protocol" for a bit over 3$.
I suppose there is no way to add SATA support by firmware or some easy mod?

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.

  • Laroldski
  • Avatar de Laroldski
  • Desligado
  • Best Poster
  • Best Poster
    Enregistré
  • Mensagens: 59
  • Thanks: 6

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

5 meses 3 semanas atrás
#3070
OK, I suppose that those item descriptions on Aliexpress can't be trusted... :-D
It was this "CoolFish M2 SSD Case NVMe SATA Dual Protocol" for a bit over 3$.
I suppose there is no way to add SATA support by firmware or some easy mod?

@lapis If you want a great ssd enclosure for NVMe ssd's try the one in the link in black it has an RTL9210 controller the other one in grey has a JMS583 controller,their not much more money and way better built then those coolfish ones.

www.aliexpress.com/item/1005006437088311...in.29.27c11802Al6Vvk


Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.

  • ole258
  • Avatar de ole258
  • Desligado
  • poster 4
  • poster 4
    Enregistré
  • Mensagens: 15
  • Thanks: 6

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

5 meses 3 semanas atrás - 5 meses 3 semanas atrás
#3073

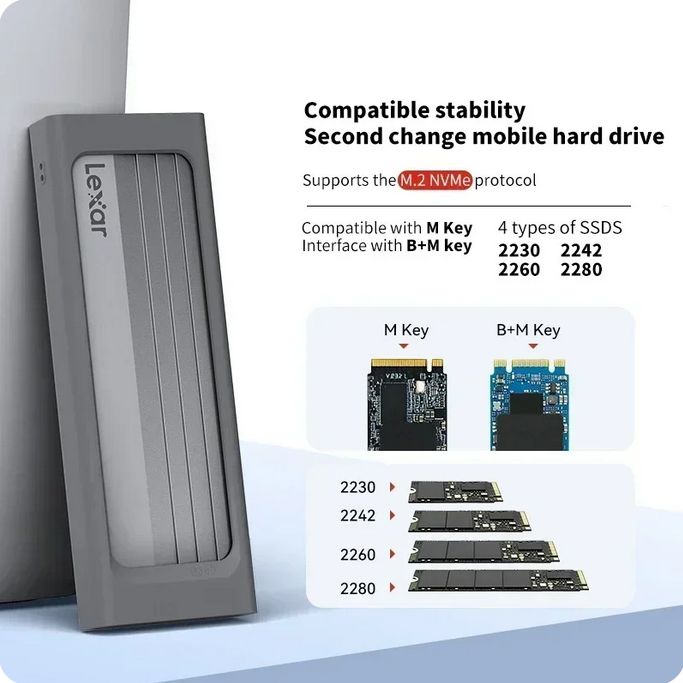

I have bought a Lexar E300 NVME enclosure.



Here is the Dump:

Atenção: Revelação!


In comparison to most other Dumps, there are much values marked as "n/a".

For example:

U2PHY = 02 f4 9b e0 e1
U3PHY = 02 d4 09 00 d5 00 80
DISK_HOTPLUG = 0x0
PINMUX1 = 0x0
PINMUX2 = 0x700
U2_MAXPWR = 0xfa
U3_MAXPWR = 0x0
ASPMDIS = 0x0

For what are these values for?

Is it recommended to add it at the config file?

Ultima edição : 5 meses 3 semanas atrás por ole258.

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.

  • sdefrwggerg
  • Avatar de sdefrwggerg
  • Desligado
  • Poster Pro
  • Poster Pro
    Enregistré
  • Mensagens: 32
  • Thanks: 21

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

5 meses 1 semana atrás
#3133
are you sure that´s a Realtek RTL9210/RTL9220 Chip inside?
