ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

  • admin
  • Avatar de admin Autor do tópico
  • Em linha
  • Admin
  • Admin
    Administrateur
  • Mensagens: 780
  • Thanks: 383

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

3 meses 6 dias atrás
#3528
I have no worries
Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.

  • Laroldski
  • Avatar de Laroldski
  • Desligado
  • Best Poster
  • Best Poster
    Enregistré
  • Mensagens: 59
  • Thanks: 6

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

3 meses 6 dias atrás
#3529
@ismailze I have that exact same board and I use HIKSEMI_MD202 and it works perfectly fine and I have been using that configure file with my enclosure for along time.

If you want me to email you the configure file that I use just email me at tjw4700@yahoo.ca  and I will glady email you the file I use.

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.

  • netRAT
  • Avatar de netRAT
  • Desligado
  • Newbie
  • Newbie
    Enregistré
  • Mensagens: 2
  • Thanks: 1

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

2 meses 3 semanas atrás - 2 meses 3 semanas atrás
#3604

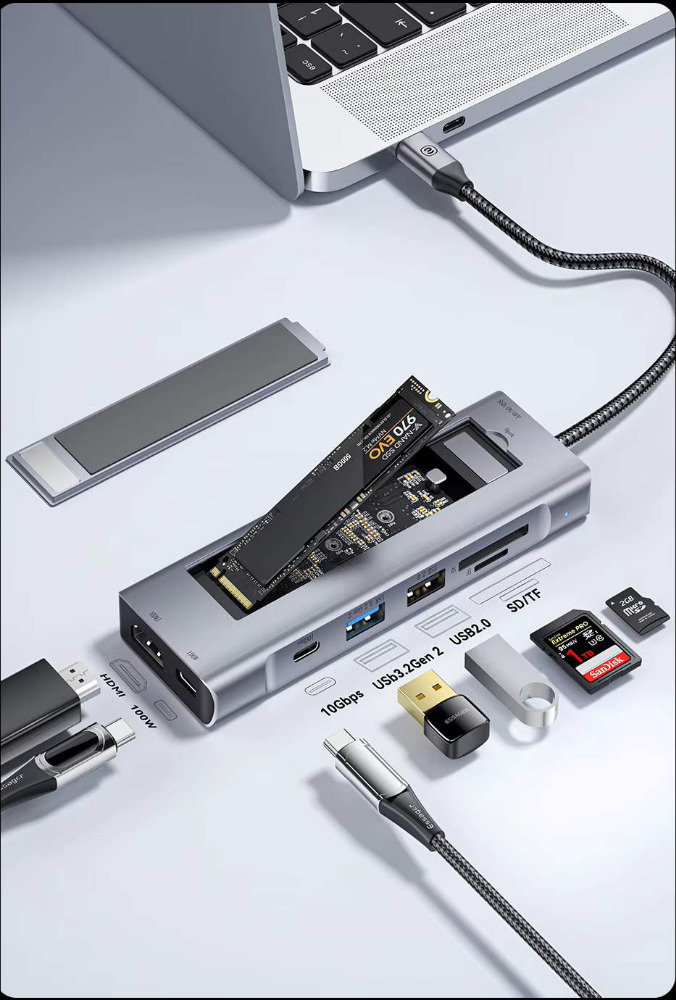

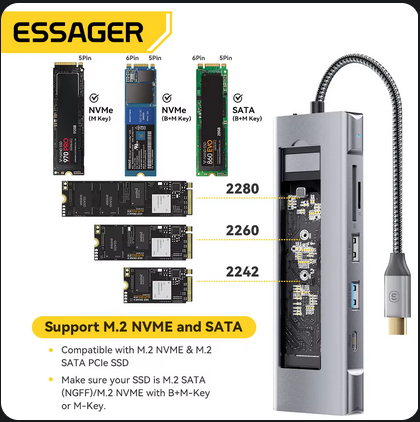

Got this multipurpose unit which includes a M.2 Realtek RTL9210B-CG chipset interface:

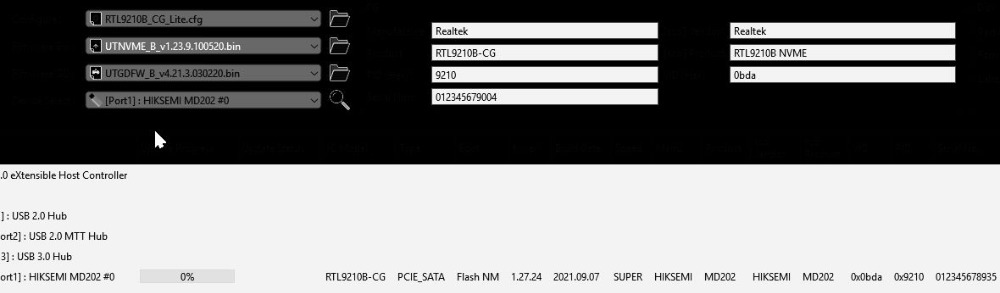

 MPTool dump reports HIKSEMI_MD202 as the OEM.



I’d like to update the firmware and instead of risking a brick I thought I’d play it safe and post here after I noticed your post mentioning the HIKSEMI config file.
I’m including all the info I collected regarding this particular unit.
I’d highly appreciate guidance with putting together that config file correctly.

Cheers.


**************************************************************
Device : [Port1] : HIKSEMI MD202 #0
**************************************************************
U2PHY : 02 f4 9b e0 e1
U3PHY : 02 d4 09 00 d5 00 80
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "HIKSEMI"
PRODUCT : "MD202"
SERIAL : "012345678935"
SCSI_PRODUCT : "MD202"
SCSI_VENDOR : "HIKSEMI"
DISK_HOTPLUG : 0x00
LED : 0x02
PINMUX1 : 0x00000000
PINMUX2 : 0x00000070
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x70
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x0a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : n/a
SUSPEND_LED_OFF : 0x03
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
EFUSE :
       00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F

   0   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  10   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  20   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  30   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  40   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  50   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  60   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  70   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  80   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  90   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  a0   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  b0   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff

Boot Mode : Flash NM
FW Ver : 1.27.24
FW Build Date : 2021.09.07
IC Ver : 0xa0010002
IC Pkg Type : PCIE_SATA
UUID : ffffffff-ffff-ffff-ffff-ffffffffffff

Disconn_ForceUSB2 : 0x00
Ultima edição : 2 meses 3 semanas atrás por netRAT.

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.

  • admin
  • Avatar de admin Autor do tópico
  • Em linha
  • Admin
  • Admin
    Administrateur
  • Mensagens: 780
  • Thanks: 383

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

2 meses 3 semanas atrás
#3605
Hi very good versatile support
[img
Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.

  • netRAT
  • Avatar de netRAT
  • Desligado
  • Newbie
  • Newbie
    Enregistré
  • Mensagens: 2
  • Thanks: 1

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

2 meses 3 semanas atrás
#3620
netRAT escreveu:
Got this multipurpose unit which includes a M.2 Realtek RTL9210B-CG chipset interface:





 MPTool dump reports HIKSEMI_MD202 as the OEM.



I’d like to update the firmware and instead of risking a brick I thought I’d play it safe and post here after I noticed your post mentioning the HIKSEMI config file.
I’m including all the info I collected regarding this particular unit.
I’d highly appreciate guidance with putting together that config file correctly.

Cheers.


**************************************************************
Device : [Port1] : HIKSEMI MD202 #0
**************************************************************
U2PHY : 02 f4 9b e0 e1
U3PHY : 02 d4 09 00 d5 00 80
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "HIKSEMI"
PRODUCT : "MD202"
SERIAL : "012345678935"
SCSI_PRODUCT : "MD202"
SCSI_VENDOR : "HIKSEMI"
DISK_HOTPLUG : 0x00
LED : 0x02
PINMUX1 : 0x00000000
PINMUX2 : 0x00000070
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x70
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x0a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : n/a
SUSPEND_LED_OFF : 0x03
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
EFUSE :
       00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F

   0   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  10   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  20   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  30   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  40   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  50   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  60   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  70   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  80   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  90   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  a0   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  b0   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff

Boot Mode : Flash NM
FW Ver : 1.27.24
FW Build Date : 2021.09.07
IC Ver : 0xa0010002
IC Pkg Type : PCIE_SATA
UUID : ffffffff-ffff-ffff-ffff-ffffffffffff

Disconn_ForceUSB2 : 0x00

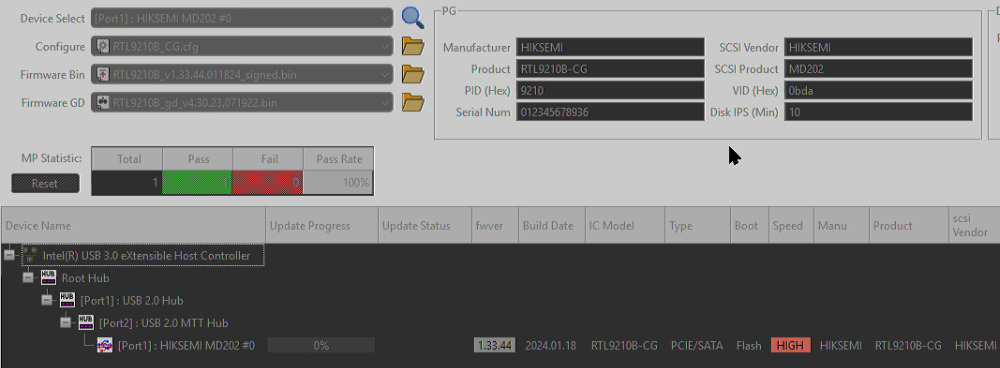

Ok, I ended up flashing using the following config file and fortunately everything worked flawlessly:

VID = 0xbda
PID = 0x9210
MANUFACTURE = "HIKSEMI"
PRODUCT = "RTL9210B-CG"
SERIAL = "012345678936"
SCSI_PRODUCT = "MD202"
SCSI_VENDOR = "HIKSEMI"
DISK_HOTPLUG = 0x0
LED = 0x2
PINMUX1 = 0x0
PINMUX2 = 0x70
U2_MAXPWR = 0xfa
U3_MAXPWR = 0x70
ASPMDIS = 0x0
DISK_IPS_THRES = 0xa
SUSPEND_LED_OFF = 0x3
UART_DBG_PIN = 0x5
Boot Mode = false
IC Ver = 0xa0010002
Disconn_ForceUSB2 = 0x0

Os seguintes utilizadores Agradeceram: fikotr74
