Realtek RTL9220(VA/VB) NVMe/USB 3.2 Controller firmware Version 9.34.55

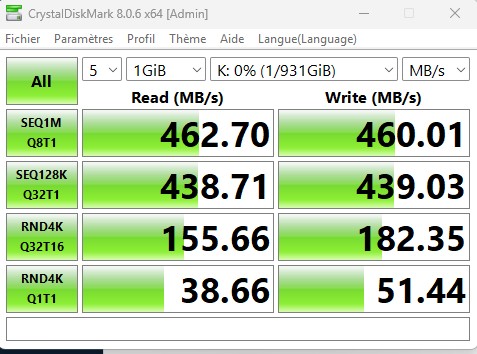

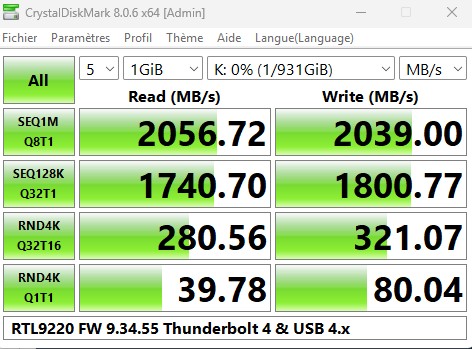

Finally, a firmware that solves my throughput issues on my RTL9220 enclosures, which have been mediocre from the start.
This is the first time I've seen a firmware that boosts the performance of my external drives.

USB 3.2 X2









USB4.x & Thunderbolt 4



Please feel free to leave a comment if you notice any improvement.

Download Firmware Version 9.34.55
www.station-drivers.com/index.php/en/com...irmwares/lang,en-gb/





Hi everyone, I'm looking for a way to recover the *.bin firmware that allows the box to illuminate the LEDs because otherwise after a firmware update, I automatically lose the LED lighting part of the box.

Noway to recover Firmware with MPtool you can try to Dump but maybe it´s a special Frimware i don´t now.

- Dump -> Show Device Info -> Save
- Delete first 3 lines and all the lines after the empty line towards the end
- Substitute all the ":" characters with "=" characters

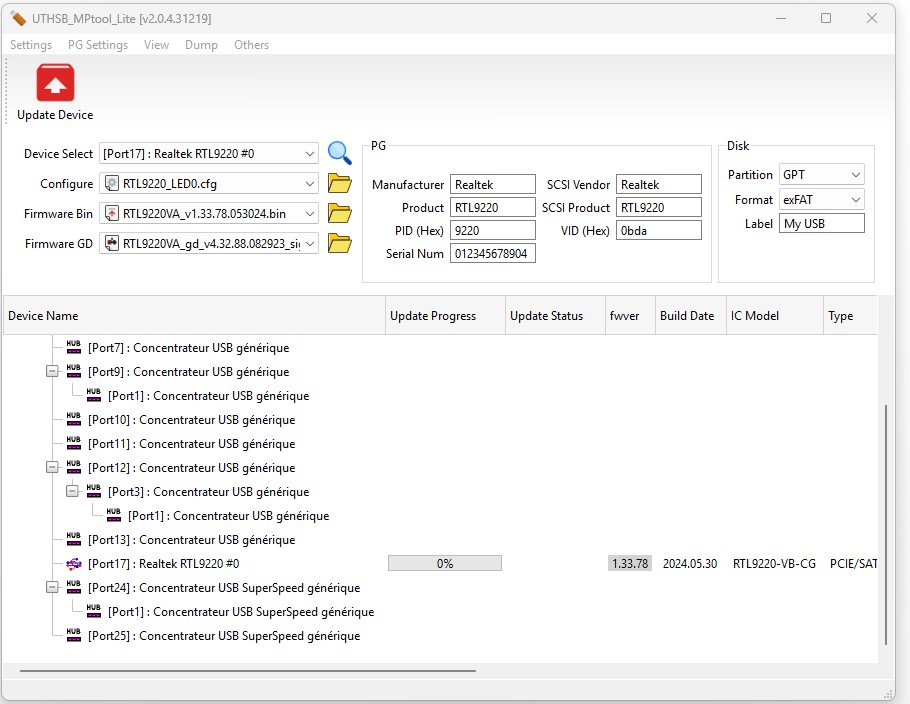

- Save as .cfg and use it in UTHSB_MPtool



Thank you very much, I tried but it erases the CFG file and is there a need for a *.bin file for the LED strips?

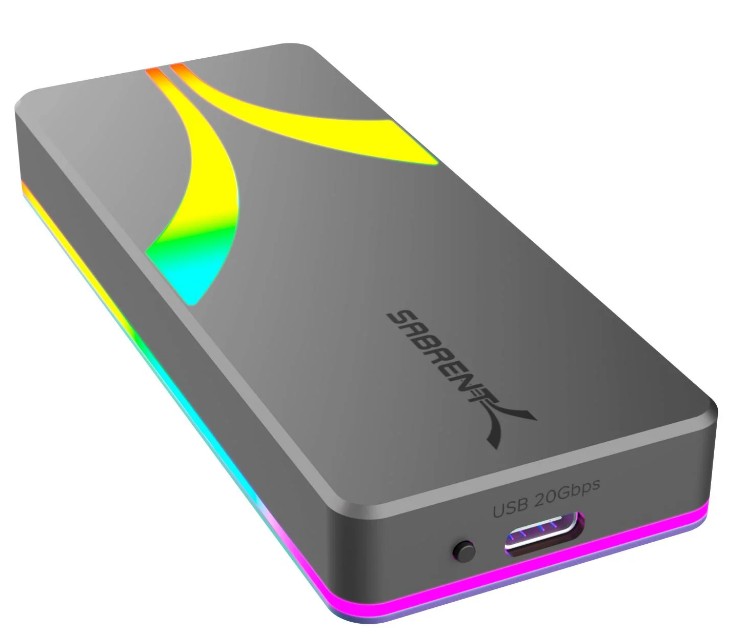

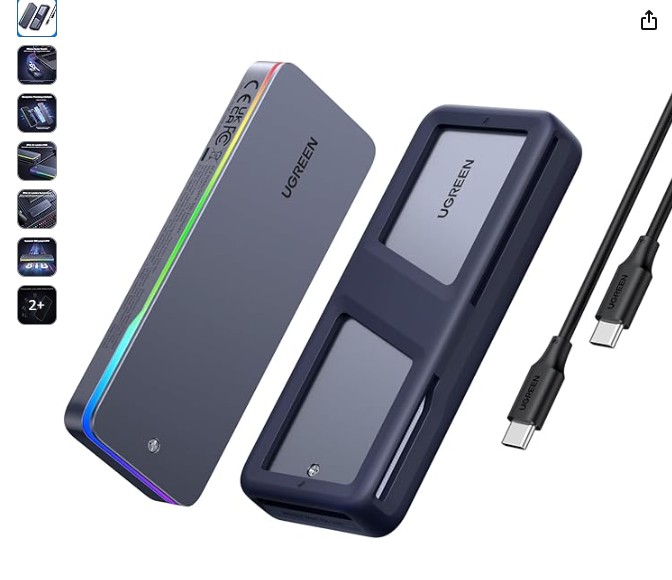

I will try on my Sabret RGB box (RTL9220) because I have 2 boxes Sabret & Ugreen
