JMicron JMS581 NVMe/SATA USB 3.2 10Gbps Controller Firmware Version 04.01.00.04
pred 3 týždnami 1 dňom - pred 2 týždnami 5 dňami
I have been after a way to flash my JMS581DL for about a year
the recent JMS586 firmware had a flasher that works
read at the bottom if your bored and nerdy..
JMicron MultipleLUN MP Tool v1_0_0_0 (used to flash and edit nvram)
FwUpdateTool_v1_19_17_6 (used to dump main rom doesnt backup nvram)
JMS581-STD-Release-v04.02.00.04-Bus Power.bin (backup from my device without nvram)
Firmware Backup Instructions (doesnt backup nvram never flash this dump)
i can insert dummy nvram space so its flashable just post it here if you want a copy that's flashable
open
FwUpdateTool_v1_19_17_6.exe
tick RD Version
tick Backup Old Firmware Only
Run
fw.bin will be made in the folder (remember this doesnt have nvram never flash this)
Flashing Instructions
open
JMicron MP Tool v1_0_0_0.exe
tick RD Version
password = jmicron
goto EEPROM Settings tab
it should be on EEPROM Update
dont untick or tick anything
Manuf. String = Blueendless (Change to JMicron if desired)
USB Prod. String = Blueendless SD03A (Change to JMicron JMS581 if desired)
Click Start when done
Features
Drive ID Passthrough to device manager etc..
USB Device ID is Blueendless SD03A (change as required)
Spindown is set at 10mins (600 secs) change as required
Trim is supported ofc
UASP also ofc
mega.nz/file/s3wQxYgZ#1w41AugKFWmXurRPzL...W749cfnlVG-yJIpUyQvg
Before
After
Long story cut short there is no current way to dump the nvram
as the tool to dump the firmware and nvram (FwUpdateTool_v1_19_17_6)
needs an updated version it dumps the rom fine but not the nvram
Working this out i bricked the device
well the firmware was there but no nvram so it didnt boot
this thing is a pain as it has a tssop8 not sop8 spi flash
got it up and running fine in the end though
anyway once i worked this out i inserted a dummy nvram area as if you flash a 260k file (rom only)
there is no space allocated for the 4k of nvram so you cannot insert it..
Oh incase anyone wonders why it used to id as firmware 04.02.00.04 and now its 04.01.00.04
sometimes the manufacturer puts a flag in the nvram, to make the build number go up
it doesnt actually do anything it was always 04.01.00.04 just saying it was 04.02.00.04
there are photo's of the PCB JMS581DL SPI etc in the zip
for anyone interested
the recent JMS586 firmware had a flasher that works
read at the bottom if your bored and nerdy..
JMicron MultipleLUN MP Tool v1_0_0_0 (used to flash and edit nvram)
FwUpdateTool_v1_19_17_6 (used to dump main rom doesnt backup nvram)
JMS581-STD-Release-v04.02.00.04-Bus Power.bin (backup from my device without nvram)
Firmware Backup Instructions (doesnt backup nvram never flash this dump)
i can insert dummy nvram space so its flashable just post it here if you want a copy that's flashable
open
FwUpdateTool_v1_19_17_6.exe
tick RD Version
tick Backup Old Firmware Only
Run
fw.bin will be made in the folder (remember this doesnt have nvram never flash this)
Flashing Instructions
open
JMicron MP Tool v1_0_0_0.exe
tick RD Version
password = jmicron
goto EEPROM Settings tab
it should be on EEPROM Update
dont untick or tick anything
Manuf. String = Blueendless (Change to JMicron if desired)
USB Prod. String = Blueendless SD03A (Change to JMicron JMS581 if desired)
Click Start when done
Features
Drive ID Passthrough to device manager etc..
USB Device ID is Blueendless SD03A (change as required)
Spindown is set at 10mins (600 secs) change as required
Trim is supported ofc
UASP also ofc
mega.nz/file/s3wQxYgZ#1w41AugKFWmXurRPzL...W749cfnlVG-yJIpUyQvg
Before
After
Long story cut short there is no current way to dump the nvram
as the tool to dump the firmware and nvram (FwUpdateTool_v1_19_17_6)
needs an updated version it dumps the rom fine but not the nvram
Working this out i bricked the device
well the firmware was there but no nvram so it didnt boot
this thing is a pain as it has a tssop8 not sop8 spi flash
got it up and running fine in the end though
anyway once i worked this out i inserted a dummy nvram area as if you flash a 260k file (rom only)
there is no space allocated for the 4k of nvram so you cannot insert it..
Oh incase anyone wonders why it used to id as firmware 04.02.00.04 and now its 04.01.00.04
sometimes the manufacturer puts a flag in the nvram, to make the build number go up
it doesnt actually do anything it was always 04.01.00.04 just saying it was 04.02.00.04
there are photo's of the PCB JMS581DL SPI etc in the zip
for anyone interested
Posledný krát upravené:pred 2 týždnami 5 dňami Shonk
Prosím Prihlásiť alebo Registrácia pre zdieľanie konverzácie.
- Shonk
-
Autor témy
- Offline
- The Best Poster
-
Enregistré
- Príspevky: 112
- Thanks: 42
Re: JMicron JMS581 NVMe/SATA USB 3.2 10Gbps Controller Firmware Version 04.01.00.04
pred 1 týždňom 5 dňami - pred 10 hodinami 34 minútami
I have had the one above for about a year
I have another one coming it was going super cheap
If it turns up with newer firmware i will edit this post with the updated firmware
edit
nope was same firmware
I have another one coming it was going super cheap
If it turns up with newer firmware i will edit this post with the updated firmware
edit
nope was same firmware
Posledný krát upravené:pred 10 hodinami 34 minútami Shonk
Prosím Prihlásiť alebo Registrácia pre zdieľanie konverzácie.
- czwhehehe
-
- Offline
- Newbie
-
Enregistré
- Príspevky: 2
- Thanks: 0
Re: JMicron JMS581 NVMe/SATA USB 3.2 10Gbps Controller Firmware Version 04.01.00.04
pred 16 hodinami 24 minútami
Hello, could you please tell me how to make the hard drive enclosure be recognized by the computer again? My hard drive enclosure is showing as a "Mass Storage Device".
Prosím Prihlásiť alebo Registrácia pre zdieľanie konverzácie.
- Shonk
-
Autor témy
- Offline
- The Best Poster
-
Enregistré
- Príspevky: 112
- Thanks: 42
Re: JMicron JMS581 NVMe/SATA USB 3.2 10Gbps Controller Firmware Version 04.01.00.04
pred 10 hodinami 39 minútami - pred 10 hodinami 36 minútami
if you explain the enclosure you have and show screenshots of your problem
and explain as much as you can i can try and help
did you backup your firmware before hand as the instructions above give?
do not just go blindly flashing that back onto it or your in for a world of hurt
it has no nvram i have to add the nvram before its flashable
and explain as much as you can i can try and help
did you backup your firmware before hand as the instructions above give?
do not just go blindly flashing that back onto it or your in for a world of hurt
it has no nvram i have to add the nvram before its flashable
Posledný krát upravené:pred 10 hodinami 36 minútami Shonk
Prosím Prihlásiť alebo Registrácia pre zdieľanie konverzácie.
- czwhehehe
-
- Offline
- Newbie
-
Enregistré
- Príspevky: 2
- Thanks: 0
Re: JMicron JMS581 NVMe/SATA USB 3.2 10Gbps Controller Firmware Version 04.01.00.04
pred 6 hodinami 56 minútami

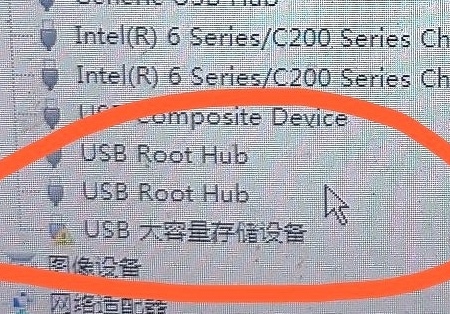

Hello, my hard drive enclosure and firmware are exactly the same as yours. The current status is as shown in the picture.
I can try adding the NVRAM, but the firmware update tool no longer recognizes the device, and on the computer, it only shows up as a mass storage device, with a message saying "This device cannot start." Do I need to use a programmer for this?
I can try adding the NVRAM, but the firmware update tool no longer recognizes the device, and on the computer, it only shows up as a mass storage device, with a message saying "This device cannot start." Do I need to use a programmer for this?
