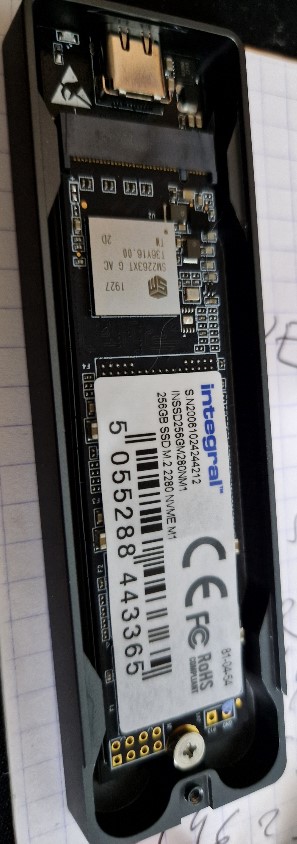

NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx









Everything works fine only the activity led stays on constantly but I will modify the Realtek configuration file for this

Config file
**************************************************************
Device : [Port19] :          Unionsine MD202 #0
**************************************************************
U2PHY : 02 f4 9b e0 e1
U3PHY : 02 d4 09 00 d5 00 80
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "Unionsine"
PRODUCT : "MD202"
SERIAL : "012345679545"
SCSI_PRODUCT : "Unionsine MD202 "
SCSI_VENDOR : "        "
DISK_HOTPLUG : 0x00
LED : 0x02
PINMUX1 : 0x00000000
PINMUX2 : 0x00000700
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x00
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x0a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : n/a
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
FP_UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
EFUSE :
       00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F


---

   0   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  10   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  20   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  30   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  40   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  50   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  60   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  70   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  80   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  90   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  a0   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff
  b0   ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff

Boot Mode : Flash NM
FW Ver : 1.29.12
FW Build Date : 2022.01.11
IC Ver : 0xa0010002
IC Pkg Type : PCIE_SATA
UUID : ffffffff-ffff-ffff-ffff-ffffffffffff

Disconn_ForceUSB2 : 0x00

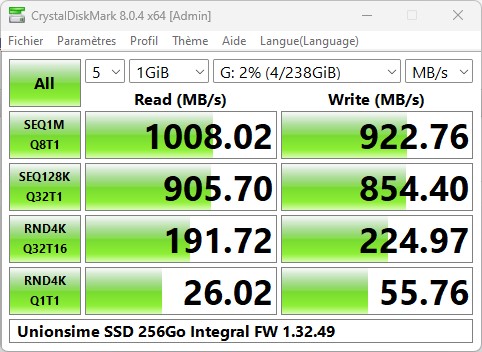

by putting the original configuration file, the performances are identical, I find the best

;Configure Start
;=================FW Configure=================
U2PHY = 02 f4 9b e0 e1
U3PHY = 02 d4 09 00 d5 00 80

VID = 0xbda
PID = 0x9210

MANUFACTURE = "Unionsine"
SCSI_VENDOR = "        "
PRODUCT = "MD202"
SCSI_PRODUCT = "Unionsine MD202"

;"0123" for Dec, "0x0123" for Hex, max 12 digits
SERIAL = "N9D0AP042502"

DISK_HOTPLUG = 0x0
LED = 0x2
PINMUX1 = 0x0
PINMUX2 = 0x0
U2_MAXPWR = 0xfa
U3_MAXPWR = 0x0
ASPMDIS = 0x0

;10 minutes of idle time will disable disk power
DISK_IPS_THRES = false

;EN_UPS = n/a
;PD = n/a

HW_LED_CFG = false
CUSTOMIZED_LED is 15 bytes = 0x80000081
CUSTOMIZED_LED = 07 00
SUSPEND_LED_OFF = 0x0
FAN = false

DIS_SHOW_EMPTY_DISK = false
FORCE_SATA_NORMAL_DMA = false
UART_DBG_PIN = 0x5
FINGER_PRINT_EN = false

;=================Tool Configure=================
DISCONN_FORCE_USB2 = 0x0
FORMAT_DISK = n
INC_SERIAL = false

;PARTITION: GPT, MBR
PARTITION = "MBR"
;FORMAT: NTFS, exFAT
FORMAT = "NTFS"
;LABEL max allowed - characters
LABEL = "My USB"

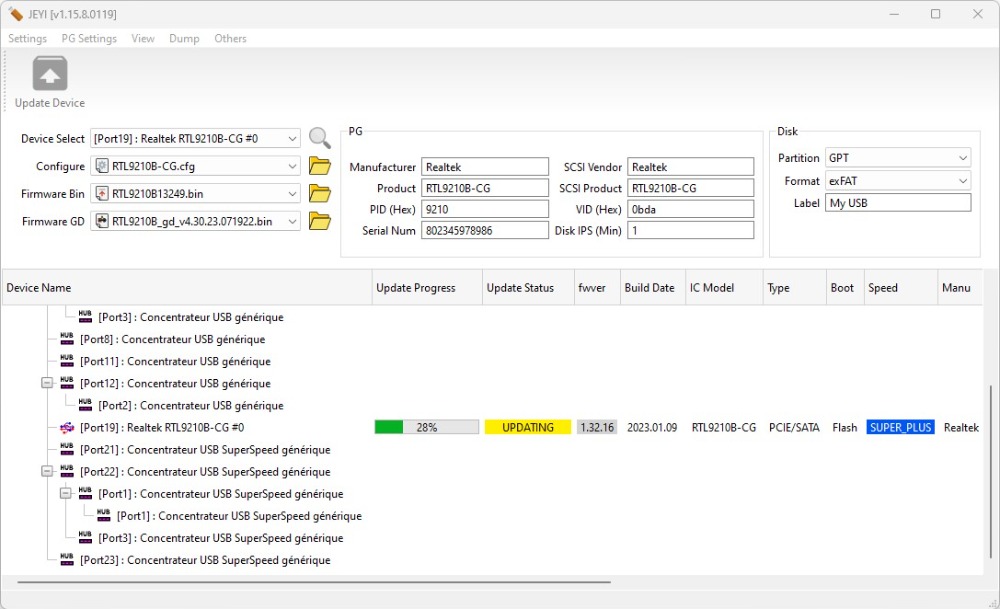

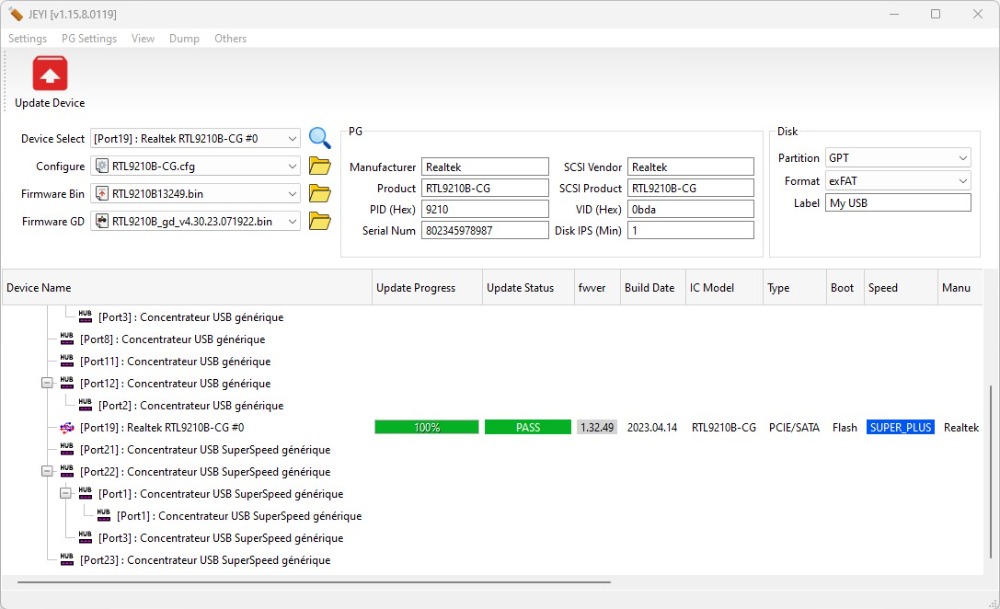

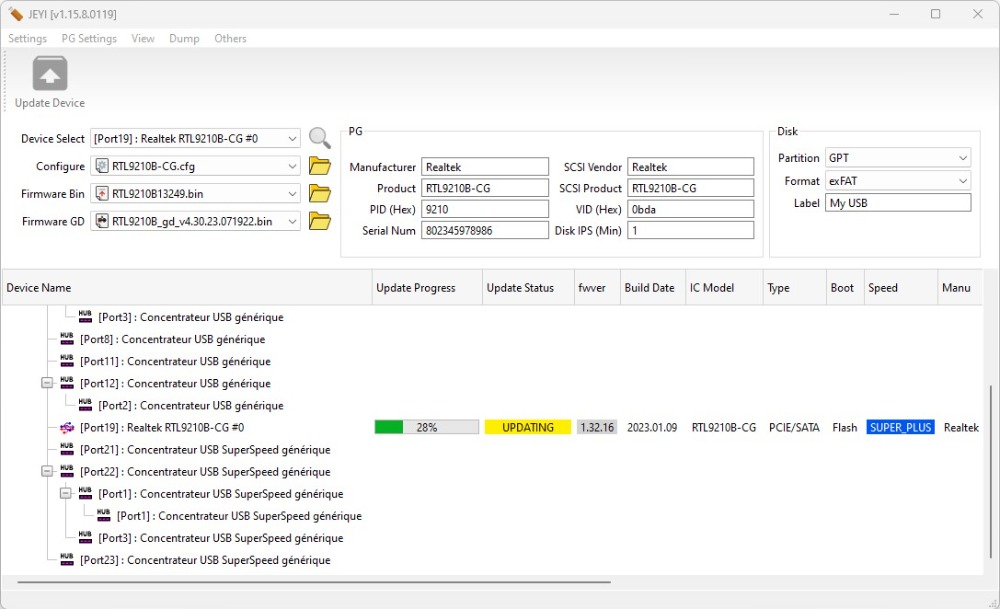

I don't know why but I tried again and reflashed my Unionsine enclosure with v1.32.49 using HIKSEMI_MD202.cfg file and this it worked

strange

Before flashing the firmware, you must first know which of VA, VB, and CG your box is and the USB has been correctly identified!
Some motherboards will recognize CG as VB, and the disk will be lost after flashing.
Please try to use USB3.0 A port when flashing, avoid using C port and USB Gen2 mode.

The recommended Configuration for mobile solid state drive:

PARTITION = "GPT"

WinToGo

PARTITION = "MBR"



;Configure Start
;=================FW Configure=================
U2PHY = 02 f4 9b e0 e1
U3PHY = 02 d4 09 00 d5 00 80

VID = 0xbda
PID = 0x9210

MANUFACTURE = "RTL"
SCSI_VENDOR = "RTL"
PRODUCT = "Product"
SCSI_PRODUCT = "Product"
SERIAL = "012345679026"

CFEXPRESS = 0x0
LED = 0x1
PINMUX1 = 0x70000
PINMUX2 = 0x0
U2_MAXPWR = 0xfa
U3_MAXPWR = 0x70
ASPMDIS = 0x0

;10 minutes of idle time will disable disk power
DISK_IPS_THRES = 0

EN_U1U2 = 0x1
;EN_UPS = 0x0
;PD = 0x0

;CUSTOMIZED_LED is 15 bytes
;CUSTOMIZED_LED = 00
;SUSPEND_LED_OFF = 0x0
;FAN = 0x0

;DIS_SHOW_EMPTY_DISK = 0x1
;UART_DBG_PIN = 5

;=================Tool Configure=================
;DISCONN_FORCE_USB2 = n
;FORMAT_DISK = n
;INC_SERIAL = y

;PARTITION: GPT, MBR
PARTITION = "GPT"
;FORMAT: NTFS, exFAT
FORMAT = "NTFS"
;LABEL max allowed - characters
LABEL = "My USB"
