NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Laroldski đã viết:

JustATester đã viết:

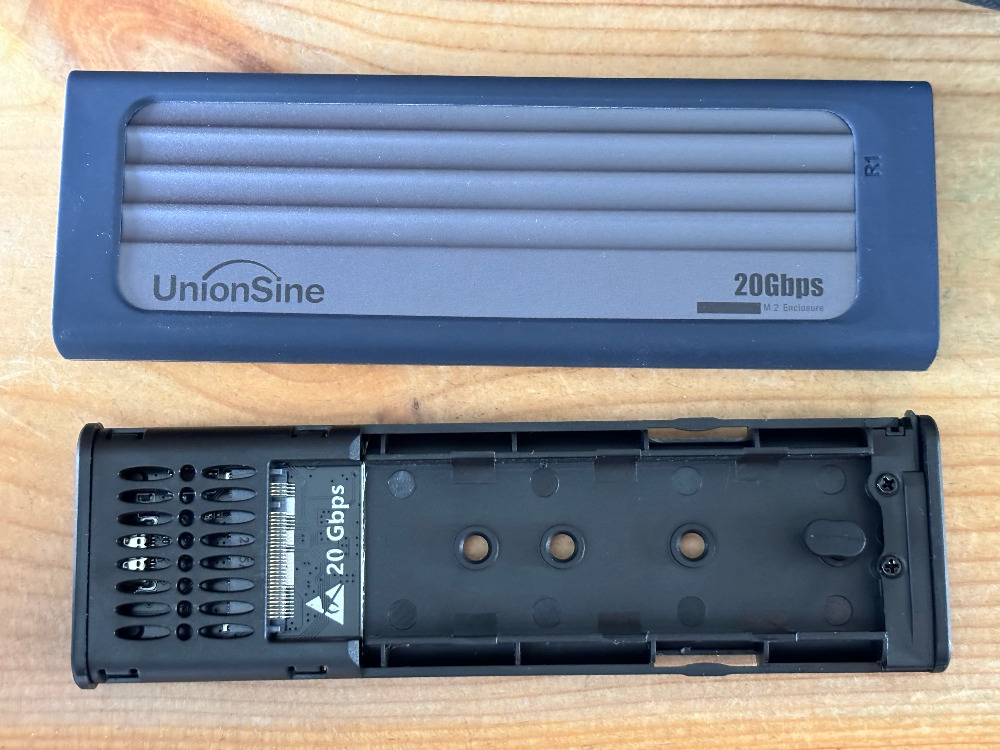

I recently got a UnionSine NVME Enclosure, it's supposed to support USB 3.2 Gen 2x2 20Gbps (though I have no way of verifying this, as my PC supports a maximum of 10Gbps).

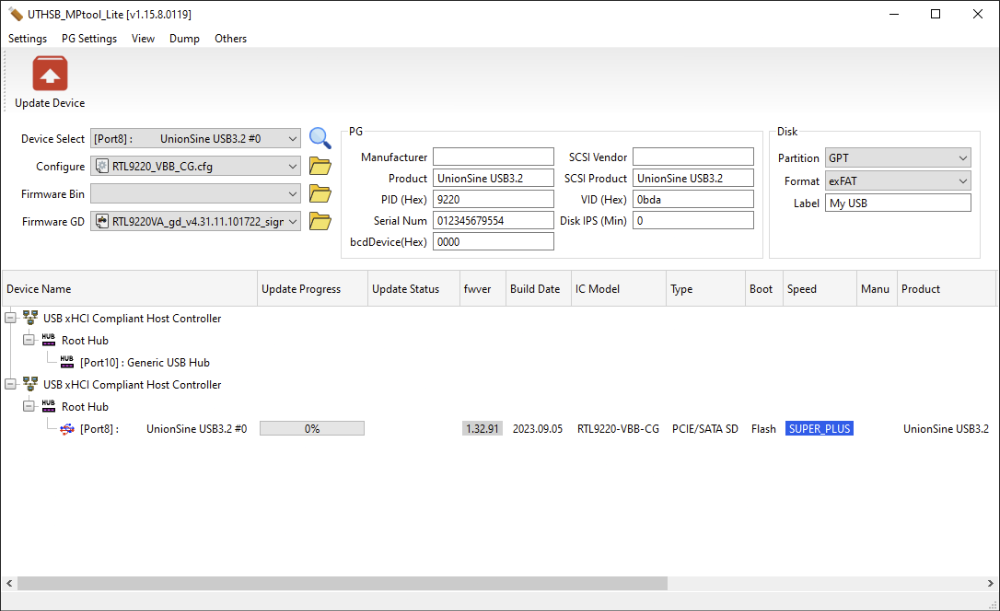

MPtool Lite shows it as having a RTL9220-VBB-CG, it's possible I missed it, but as of yet I haven't seen any other enclosures using this IC.

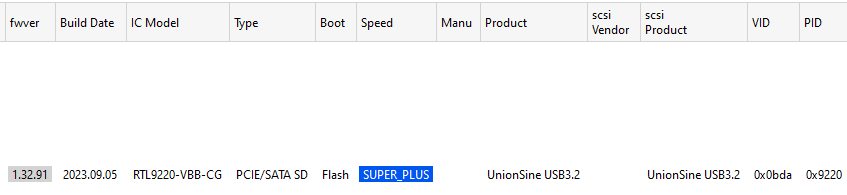

When connected to a 10Gbps USB port under Windows, it shows as SuperSpeed Plus (10Gbps) just fine (verified using both MPtool Lite and HWinfo)
Under Linux however it always shows as 5Gbps. Do you think it's possible this would be caused by firmware giving the wrong information?

I've dumped the config for anyone interested:

Cảnh báo: Xí bùm!

**************************************************************
Device : [Port8] :          UnionSine USB3.2 #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x9220
MANUFACTURE : " "
PRODUCT : "UnionSine USB3.2"
SERIAL : "012345679554"
SCSI_PRODUCT : "UnionSine USB3.2"
SCSI_VENDOR : "        "
USB_SELF_PWR : n/a
DISK_HOTPLUG : n/a
LED : 0x03
PINMUX1 : n/a
PINMUX2 : n/a
U2_MAXPWR : n/a
U3_MAXPWR : n/a
ASPMDIS : n/a
PCIE_REFCLK : n/a
DISK_IPS_THRES : n/a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x64
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : 0x00000000
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a

Boot Mode : Flash
FW Ver : 1.32.91
FW Build Date : 2023.09.05
IC Pkg Type : PCIE/SATA SD
UUID : n/a

Disconn_ForceUSB2 : false



Which Unionsine enclosure do you have,they sell 2 that look almost the same and the other is called Hiksemi and people get them mixed up,I own both that way I have 2 different looking enclosure's because I need a lot of portable storage space.

If you want the original configure file for the Unionsine and Hiksemi enclosure's linked I can email them to you if you want,I know they both have boards that are a bit different and they each use a different configure file,I know the Unionsine's that I got were still using the old version of the board with the last's ones I got and the led light won't work right if the wrong configure file isn't used.

I noticed as well that when I flashed my RTL9210 controllers with new firmware it would say Golden onetime and something else the next and still perform at the same speed,I have updated mine about 4 or 5 times as the newer firmware came out.

www.aliexpress.com/item/1005005057195255...arch%7Cquery_from%3A











spike_V_sky đã viết:

@JustATester

hi, few questions for you
Can you confirm if the device has firmware upgradeable ?

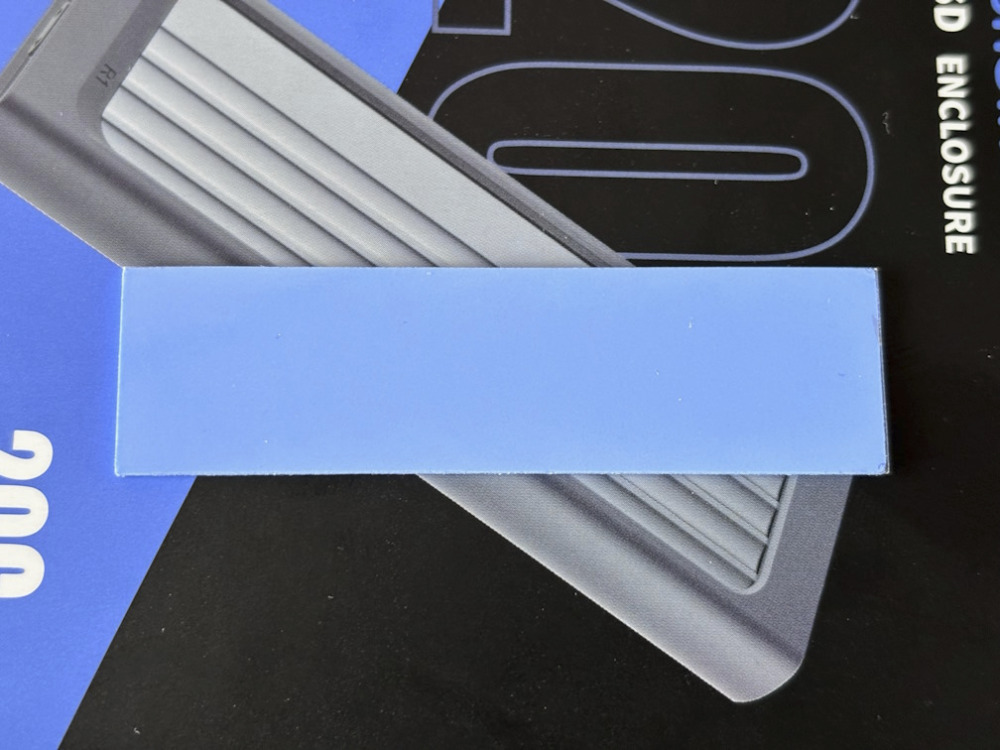

The thermal pad included is standard and replaceable ?
Is real 20Gbps capable device ?
