Hello to all of you and thank you again for your loyalty,
Today I want to know if you are satisfied with the site since the change of the server and some touch-ups of the color and the change of the theme of the Forum.
Of course I am aware that there may still be work to do but the biggest part is done
Thank you for your answers
www.station-drivers.com/index.php/en/for...th-the-s-d-site#3618

ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

  • admin
  • admin's Ảnh đại diện Topic Author
  • Đi xa
  • Admin
  • Admin
    Administrateur
  • Tổng số bài viết: 694
  • Thanks: 360

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 năm 5 tháng trước
#883
Thank you for sharing, it may help someone.

Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Vui lòng Đăng nhập hoặc Tạo tài khoản để tham gia cuộc hội thoại.

  • ethereal
  • ethereal's Ảnh đại diện
  • Tắt
  • Poster
  • Poster
    Enregistré
  • Tổng số bài viết: 10
  • Thanks: 1

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 năm 5 tháng trước
#950
@xz Thank you maybe you can ask Support why an old GD firmware was used
I have updadet Orico with UTGDFW_B_v1.29.21.030422 and Orico Config
last Nubmers v1.29.21.(030422 = Month Day Year = 04.03.2022)

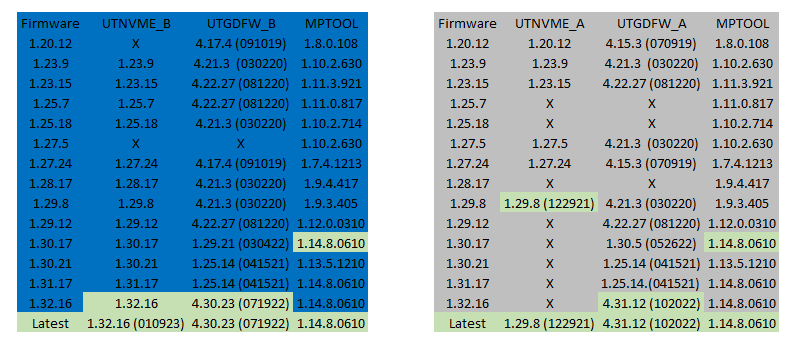

Thanks for your nice table of firmware versions. Thanks also to xz for providing V1. 31. 17, the latest version available so far.

I've tried to flash V1. 31. 17 on a Sabrent EC-SNVE enclosure. For GD firmware, I chose the latest available (UTGDFW_B_v1.29.21.030422), the same as you. Unfortunately, the flash process failed (the MPTOOL reported an error). I thought that the enclosure had been bricked, but actually it was only on a semi-bricked state: it no longer worked but it was possible to flash another firmware. I chose v1.30.17 and voila, my Sabrent was working fine again.

I guess the so called GD (Golden) firmware is just a small piece of code for flashing the main firmware. It could also be the bootloader than loads the main code. When my Sabrent was semi-bricked, I could no longer see "Sabrent" as USB vendor and the MPTOOL no longer reported any firmware version on the device. But the GD firmware was still working fine, so I could flash the device.



Vui lòng Đăng nhập hoặc Tạo tài khoản để tham gia cuộc hội thoại.

  • sdefrwggerg
  • sdefrwggerg's Ảnh đại diện
  • Tắt
  • Best Poster
  • Best Poster
    Enregistré
  • Tổng số bài viết: 30
  • Thanks: 19

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 năm 4 tháng trước - 1 năm 4 tháng trước
#971
Can´t confirm that everything works fine



It bypass Realtek Chip and load the stock Rom Firmware
Last edit: 1 năm 4 tháng trước by sdefrwggerg.
The following user(s) said Thank You: ethereal

Vui lòng Đăng nhập hoặc Tạo tài khoản để tham gia cuộc hội thoại.

  • sdefrwggerg
  • sdefrwggerg's Ảnh đại diện
  • Tắt
  • Best Poster
  • Best Poster
    Enregistré
  • Tổng số bài viết: 30
  • Thanks: 19

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 năm 4 tháng trước - 1 năm 4 tháng trước
#986
Enclosures cam with cheap poor quality bundled cables maybe thats your Problem




Last edit: 1 năm 4 tháng trước by sdefrwggerg.
The following user(s) said Thank You: admin, ethereal, blackbile

Vui lòng Đăng nhập hoặc Tạo tài khoản để tham gia cuộc hội thoại.

  • ethereal
  • ethereal's Ảnh đại diện
  • Tắt
  • Poster
  • Poster
    Enregistré
  • Tổng số bài viết: 10
  • Thanks: 1

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 năm 4 tháng trước
#992
Thanks for your kind suggestions.

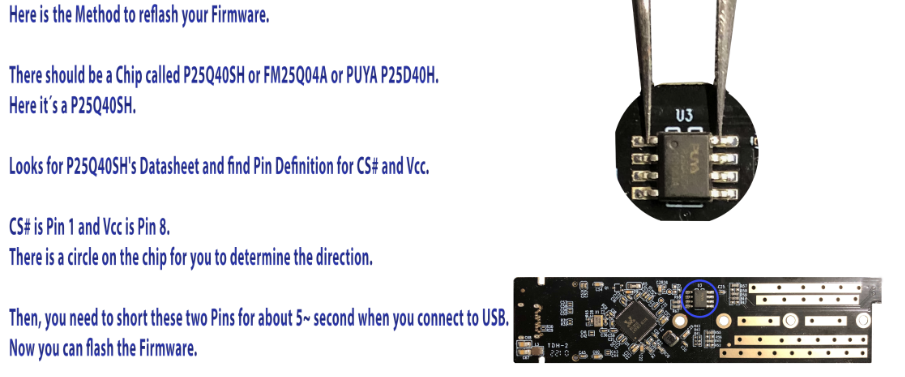

IIRC, I read about that "shorting pins" method to flash bricked devices some time ago. Fortunately, as I explained in my message, my unit was only semi-bricked, and I could flash another version without issue. Maybe I should tinker more with my device, to see if that error when flashing the latest firmware was only a glitch or it's some compatibility issue that just made the flashing process impossible.

I use a quality aftermarket cable from Anker. And previously I had flashed my unit several times, always without issue. So I tend to think the cable is not to blame here.

Best wishes.

Vui lòng Đăng nhập hoặc Tạo tài khoản để tham gia cuộc hội thoại.
