Help changing enclosure configurations

1 個月 2 天 前 - 1 個月 2 天 前
#4729
Hey everyone, how's it going?

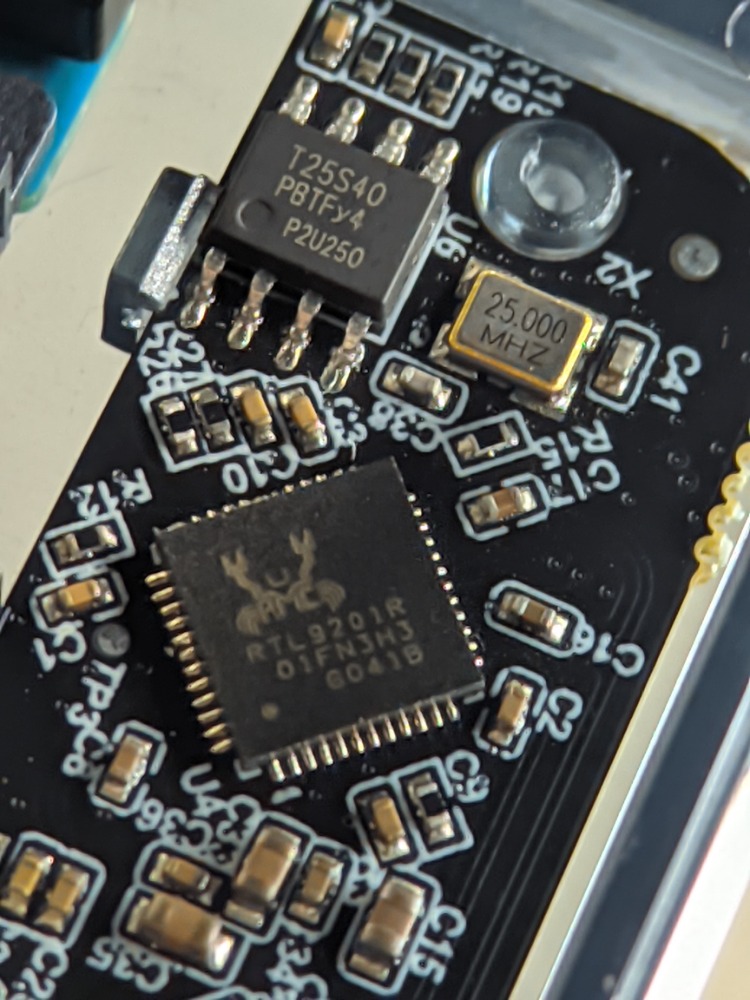

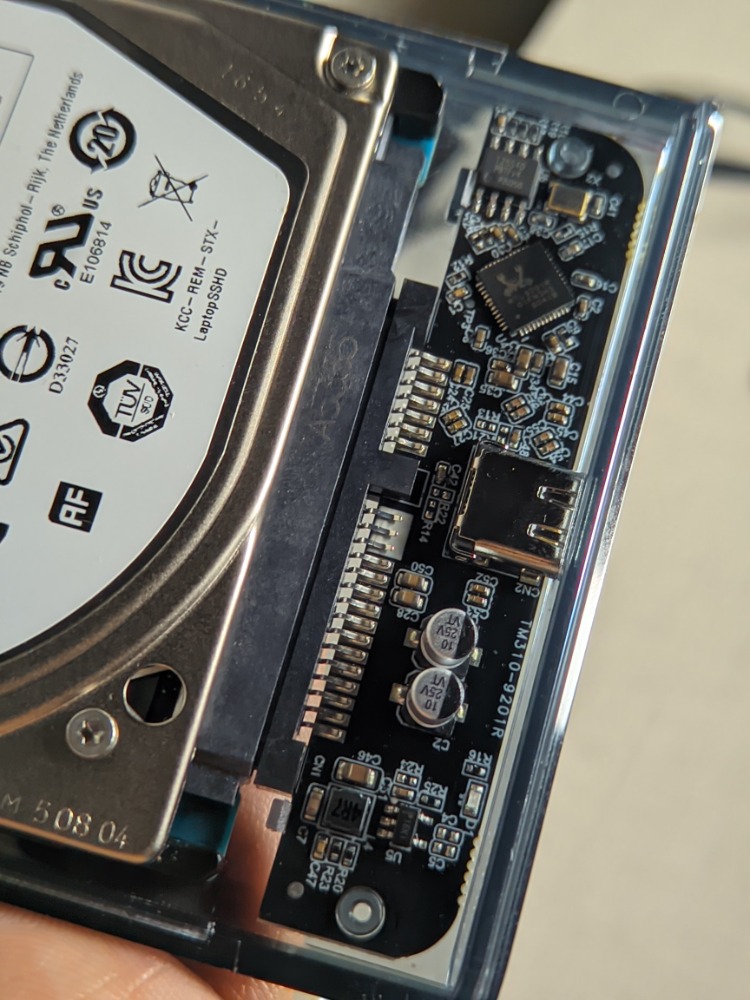

Recently, I bought an USB C Sata Enclosure. Brand is eaget. Chipset seems to be Realtek's RTL9201R. My problem with it, is that after a while... possibly between 1 and 5 minutes, the HDD is sleeping. Changes all the Windows settings related to power saving configs and had no success on it. Googling around, I found station-drivers and saw a few posts with mptool. So I gave it a go and got a dump text for my enclosure. Can you guys help me finding out how to disable this sleep timer?
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x9201
MANUFACTURE : "Realtek"
PRODUCT : "RTL9201"
SERIAL : "012345678999"
SCSI_PRODUCT : "n/a"
SCSI_VENDOR : "n/a"
USB_SELF_PWR : n/a
DISK_HOTPLUG : 0x03
LED : 0x03
PINMUX1 : n/a
PINMUX2 : n/a
U2_MAXPWR : n/a
U3_MAXPWR : n/a
ASPMDIS : n/a
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x03
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 08 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : 0x01
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x64
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/aBoot Mode : Flash
FW Ver : 1.32.7
FW Build Date : 2022.11.25
IC Pkg Type : SATA
UUID:n/aDisconn_ForceUSB2 : false

Thanks!
