ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

  • TiX
  • TiX 的個人頭像 离线
  • Poster
  • Poster
    Enregistré
  • 文章： 5
  • Thanks: 0

Replied by TiX on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 年 3 個月 前 #1181

" Using a MSI katana gf66 notebook the mainboard is "msi MS-1584" "

If your box is well connected in USB 3.2, try to see if your disk, what model is it?
Otherwise you can try to update but I don't know if that solves your problem, to see
[img



Samsung mz-vl45120
I don't expect 5Gbs but at least 1Gbs
[img
Last Edit:1 年 3 個月 前 來自 TiX
Last edit: 1 年 3 個月 前 by TiX.

Please 登錄 或 新增帳號 to join the conversation.

  • admin
  • admin 的個人頭像 离开 Topic Author
  • Admin
  • Admin
    Administrateur
  • 文章： 675
  • Thanks: 348

Replied by admin on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 年 3 個月 前 #1182
No Alien Invader explains that to take advantage of the 1Gbps transfer rate for the SSD, you must connect the box to a 10Gbps port
Example of USB 3.2 port speed
USB 3.2 1x1 = 5Gbps = 500Mbps SSD transfer rate (Read/Write)
USB 3.2 2X1 =10Gbps = 1000Mbps SSD transfer rate( Read/Write)
USB 3.2 2x2 = 20Gbps = 2000Mbps = 2000Mbps SSD transfer rate (Read/Write)

Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Last Edit:1 年 3 個月 前 來自 admin
Last edit: 1 年 3 個月 前 by admin.
The following user(s) said Thank You: Alien Invader

Please 登錄 或 新增帳號 to join the conversation.

Replied by Alien Invader on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 年 3 個月 前 #1203
Anyone has a clue if the NVME-TO-USB adapters like the 9210B can initialize the Host Memory Buffer feature of the newer NVME SSD's ?
來自 Alien Invader

Please 登錄 或 新增帳號 to join the conversation.

Replied by blackbile on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 年 3 個月 前 #1214

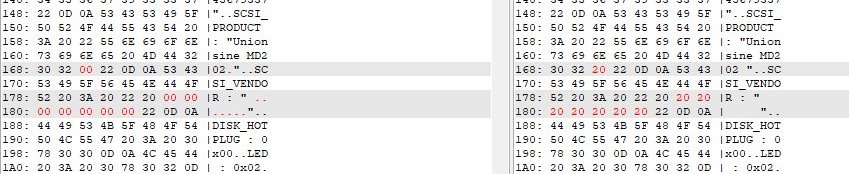

I have a Unionsine MD202, dumped the config, flashed the latest fw from this topic and it works, though it is strange that I could not write 00 - as there is 20 again dumping the flashed unit...

來自 blackbile
  • capture_001_18062023_091847.jpg

    • Please 登錄 或 新增帳號 to join the conversation.

    • admin
    • admin 的個人頭像 离开 Topic Author
    • Admin
    • Admin
      Administrateur
    • 文章： 675
    • Thanks: 348

    Replied by admin on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

    Posted 1 年 3 個月 前 #1215


    Procédure pour restaurer le firmware de secours

    www.station-drivers.com/index.php/en-us/...losures-usb-3-2-nvme

    Configuration
    Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

    來自 admin
  • recovery_nvme.jpg

    • Please 登錄 或 新增帳號 to join the conversation.
