ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

  • admin
  • admin 的個人頭像 Topic Author
  • 离开
  • Admin
  • Admin
    Administrateur
  • 文章: 781
  • Thanks: 383

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 年 5 個月 前 - 1 年 5 個月 前
#1245

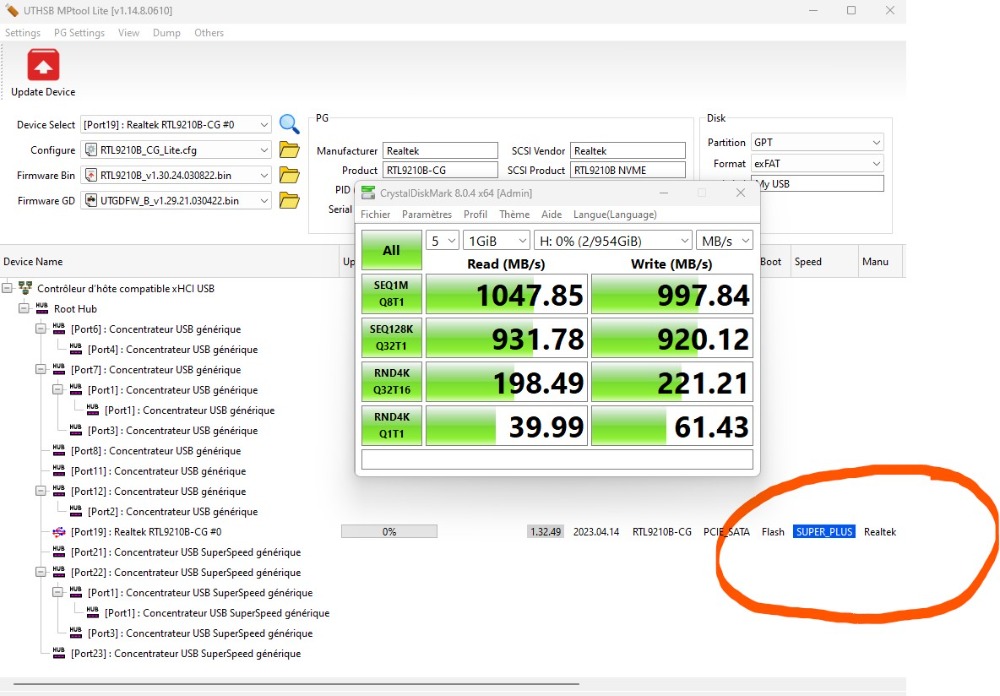

Hi JJ I think you are not on a USB 3.2 X1 port (10Gbps) check with the utility it displays as below



Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Last edit: 1 年 5 個月 前 by admin.
The following user(s) said Thank You: jj

Please 登錄新增帳號 to join the conversation.

  • jj
  • jj 的個人頭像
  • 离线
  • Newbie
  • Newbie
    Enregistré
  • 文章: 4
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 年 5 個月 前
#1249
Hi @spike_V_sky as I mentioned on the first line, issues were solved.
I had to flash the FW twice for it to work. Then I reconnected the enclosure, formatted the disk, and I guess I proceeded with my tests.
Then wrote this post after being really disappointed.
I disassembled the enclosure, removed SSD, put it together again and after connecting it, I managed to get 375 MB/s. Idk if others reach higher speeds than me, but for me this is more than enough.
Thank you for taking your time to answer!

Please 登錄新增帳號 to join the conversation.

  • jj
  • jj 的個人頭像
  • 离线
  • Newbie
  • Newbie
    Enregistré
  • 文章: 4
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 年 5 個月 前
#1250
Hi @admin,

yes, it only says SUPER.
According to MSI's specs, my Type C port is: USB3.2 Gen1
If I got it correctly, it should only support 5gbps, right?
Isn't 375 MB/s fast enough?
Please know that my laptop's SSDs might be throttling my newer external SSD.

Thank you for taking your time :)

Please 登錄新增帳號 to join the conversation.

  • admin
  • admin 的個人頭像 Topic Author
  • 离开
  • Admin
  • Admin
    Administrateur
  • 文章: 781
  • Thanks: 383

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 年 5 個月 前
#1251
Yes  if your port and in 5Gbps it will be 500Mbps you will only have this speed, from 10Gbps you can reach 1gbps, 20Gbps = 2Gbps approx, ......

Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Please 登錄新增帳號 to join the conversation.

  • jj
  • jj 的個人頭像
  • 离线
  • Newbie
  • Newbie
    Enregistré
  • 文章: 4
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 年 5 個月 前
#1252
Hi @wade7575, @all

I think I will not get much of a difference by changing FW versions. I got the latest version installed already, and as I mentioned, I got real work copy speed of 375 MB/s over a 12 GB file.
And I also have a USB 3.2 Gen 1 port.

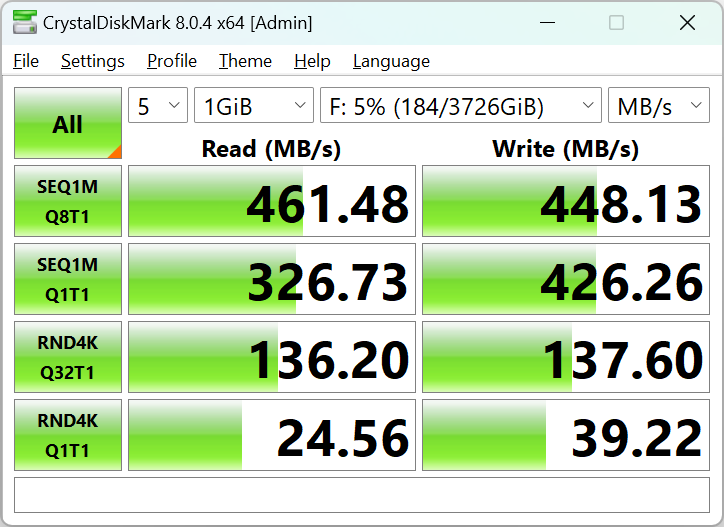

See also Crystal Mark below.

Thank you very much for your time :)



Please 登錄新增帳號 to join the conversation.
