NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
- waldyrdias@msn.com
- 离线
- Poster 2
-
Enregistré
- 文章: 6
- Thanks: 0
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 年 4 個月 前

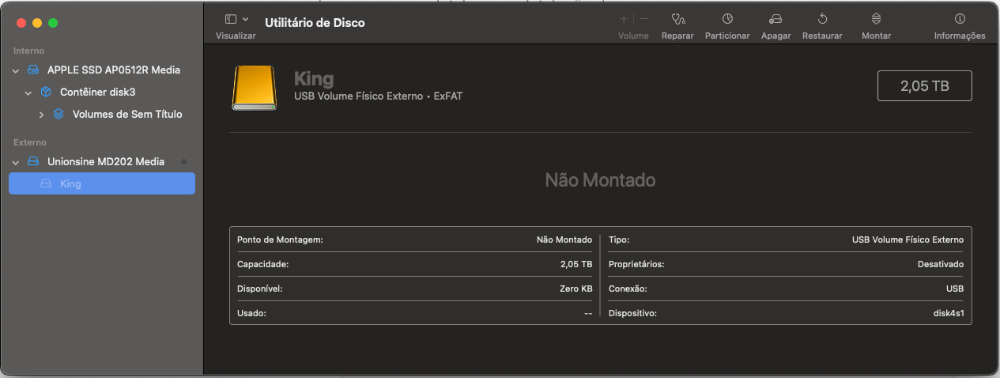

I updated my Unionsine MD202 with Realtek RTL9210B chipset firmware Version 1.32.49.140423, but macos won't mount the nvme drive. Could someone help me please.
The configuration is like this.
;Configure Start
;=================FW Configure=================
U2PHY = 02 f4 9b e0 e1
U3PHY = 02 d4 09 00 d5 00 80
VID = 0xbda
PID = 0x9210
MANUFACTURE = "Unionsine"
SCSI_VENDOR = " "
PRODUCT = "MD202"
SCSI_PRODUCT = "Unionsine MD202"
;"0123" for Dec, "0x0123" for Hex, max 12 digits
SERIAL = "N9D0AP042502"
DISK_HOTPLUG = 0x0
LED = 0x2
PINMUX1 = 0x0
PINMUX2 = 0x0
U2_MAXPWR = 0xfa
U3_MAXPWR = 0x0
ASPMDIS = 0x0
;10 minutes of idle time will disable disk power
DISK_IPS_THRES = false
;EN_UPS = n/a
;PD = n/a
HW_LED_CFG = false
CUSTOMIZED_LED is 15 bytes = 0x80000081
CUSTOMIZED_LED = 07 00
SUSPEND_LED_OFF = 0x0
FAN = false
DIS_SHOW_EMPTY_DISK = false
FORCE_SATA_NORMAL_DMA = false
UART_DBG_PIN = 0x5
FINGER_PRINT_EN = false
;=================Tool Configure=================
DISCONN_FORCE_USB2 = 0x0
FORMAT_DISK = n
INC_SERIAL = false
;PARTITION: GPT, MBR
PARTITION = "GPT"
;FORMAT: NTFS, exFAT
FORMAT = "exFAT"
;LABEL max allowed - characters
LABEL = "My USB"
The configuration is like this.
;Configure Start
;=================FW Configure=================
U2PHY = 02 f4 9b e0 e1
U3PHY = 02 d4 09 00 d5 00 80
VID = 0xbda
PID = 0x9210
MANUFACTURE = "Unionsine"
SCSI_VENDOR = " "
PRODUCT = "MD202"
SCSI_PRODUCT = "Unionsine MD202"
;"0123" for Dec, "0x0123" for Hex, max 12 digits
SERIAL = "N9D0AP042502"
DISK_HOTPLUG = 0x0
LED = 0x2
PINMUX1 = 0x0
PINMUX2 = 0x0
U2_MAXPWR = 0xfa
U3_MAXPWR = 0x0
ASPMDIS = 0x0
;10 minutes of idle time will disable disk power
DISK_IPS_THRES = false
;EN_UPS = n/a
;PD = n/a
HW_LED_CFG = false
CUSTOMIZED_LED is 15 bytes = 0x80000081
CUSTOMIZED_LED = 07 00
SUSPEND_LED_OFF = 0x0
FAN = false
DIS_SHOW_EMPTY_DISK = false
FORCE_SATA_NORMAL_DMA = false
UART_DBG_PIN = 0x5
FINGER_PRINT_EN = false
;=================Tool Configure=================
DISCONN_FORCE_USB2 = 0x0
FORMAT_DISK = n
INC_SERIAL = false
;PARTITION: GPT, MBR
PARTITION = "GPT"
;FORMAT: NTFS, exFAT
FORMAT = "exFAT"
;LABEL max allowed - characters
LABEL = "My USB"
Please 登錄 或 新增帳號 to join the conversation.
- admin
- Topic Author
- 离开
- Admin
-
Administrateur
- 文章: 781
- Thanks: 383
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 年 4 個月 前
did you try the default configuration with the realtek.....cfg file
Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060, Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
The following user(s) said Thank You: waldyrdias@msn.com
Please 登錄 或 新增帳號 to join the conversation.
- wade7575
- 离线
- Big Poster
-
Enregistré
- 文章: 45
- Thanks: 7
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 年 4 個月 前
What config file did you use,if you go to station drivers and type in RTL9210 and then start downloading every download for the RTL2910 chip you will that one has a massive amount of config files in it and then use file HIKSEMI_MD202.cfg to reflash your device.
I can't remember which download has it in it but one has a massive amount of those files in it,if you give me your email I don't mind emailing the file I have it save and it is the original file.
I can't remember which download has it in it but one has a massive amount of those files in it,if you give me your email I don't mind emailing the file I have it save and it is the original file.
The following user(s) said Thank You: admin, waldyrdias@msn.com
Please 登錄 或 新增帳號 to join the conversation.
