I have got the led working and flashed it with the correct CUSTOMIZED_LED = 33 00
it needs the latest MPtool_Lite to support my RTL9220-VC-CG (e.g. VC. Not VA or VB as the older builds dont recognise the VC revision)
it needs to RTL9220_LED_4AGB.bin to be flashed at the same time to use CUSTOMIZED_LED = 33 00 without a brick

I will post an updated package at some point later as alot of 9220's use CUSTOMIZED_LED = 33 00

Updated 9.34.74

Code:

**************************************************************
Device : [Port3] : Realtek RTL9220 #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x9220
MANUFACTURE : "Realtek"
PRODUCT : "RTL9220"
SERIAL : "012345678921"
SCSI_PRODUCT : "RTL9220         "
SCSI_VENDOR : "Realtek "
USB_SELF_PWR : n/a
DISK_HOTPLUG : n/a
LED : 0x01
PINMUX1 : n/a
PINMUX2 : n/a
U2_MAXPWR : n/a
U3_MAXPWR : n/a
ASPMDIS : n/a
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x0a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 33 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : 0x00
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : 0x00040000
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x64
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : 0x00000000
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : 0x07
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a
RW_MODE : n/a
FORCE_SATA_QUIRK : n/a

Boot Mode : Flash
FW Ver : 9.34.74
FW Build Date : 2025.09.11
IC Pkg Type : PCIE/SATA SD
UUID : n/a

Disconn_ForceUSB2 : false

Factory 1.33.89

Code:

**************************************************************
Device : [Port3] : Realtek RTL9220 #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x9220
MANUFACTURE : "Realtek"
PRODUCT : "RTL9220"
SERIAL : "012345678921"
SCSI_PRODUCT : "RTL9220         "
SCSI_VENDOR : "Realtek "
USB_SELF_PWR : n/a
DISK_HOTPLUG : n/a
LED : 0x01
PINMUX1 : n/a
PINMUX2 : n/a
U2_MAXPWR : n/a
U3_MAXPWR : n/a
ASPMDIS : n/a
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x0a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 33 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : 0x00
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : 0x00040000
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x64
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : 0x00000000
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : 0x07
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a
RW_MODE : n/a
FORCE_SATA_QUIRK : n/a

Boot Mode : Flash
FW Ver : 1.33.89
FW Build Date : 2024.07.26
IC Pkg Type : PCIE/SATA SD
UUID : n/a

Disconn_ForceUSB2 : false

Please 登錄 or 新增帳號 to join the conversation.

Shonk
Offline
The Best Poster
Enregistré
文章： 164
Thanks: 72

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

2 天 5 小時前 - 2 天 5 小時前

Alot of Enclosures come with this PCB
I ordered the ITGZ 2280 RTL9220 enclosure and fitted it into an iRhasta 2242 enclosure the pcb also fits into the iRhasta 2230 enclosures
they are all made in the same factory I fitted the RTL9210B from the iRhasta 2242 into the ITGZ 2280 Enclosure you can also get them with JMS583's and such all PCB's can be exchanged
as they are all the same layout

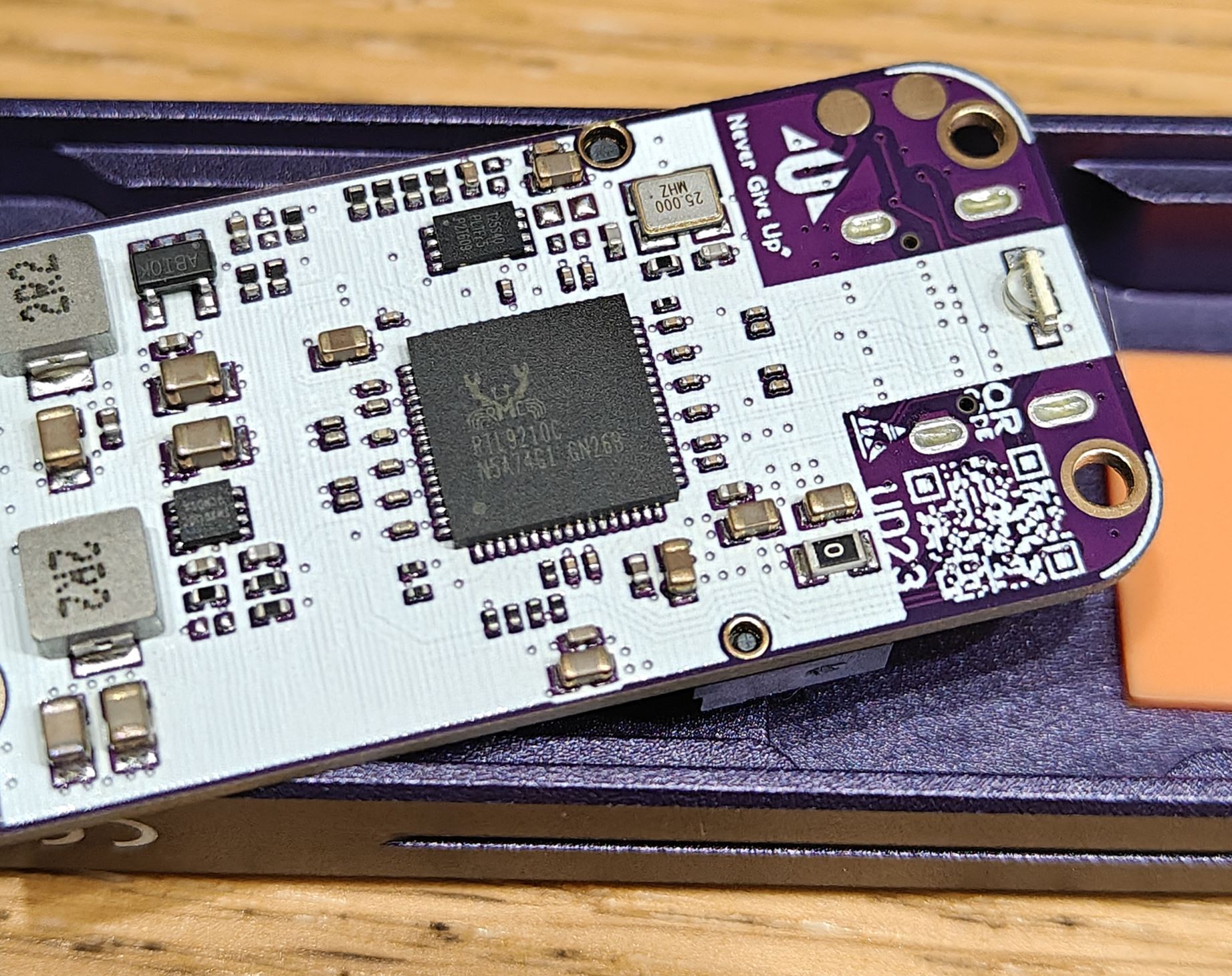

anyway here's images of the pcb and a complete updater for the RTL9220 Variant including working LED's

If you do not flash the LED.bin when updating it results in a brick due to CUSTOMIZED_LED = 33 00 pointing to the LED bin

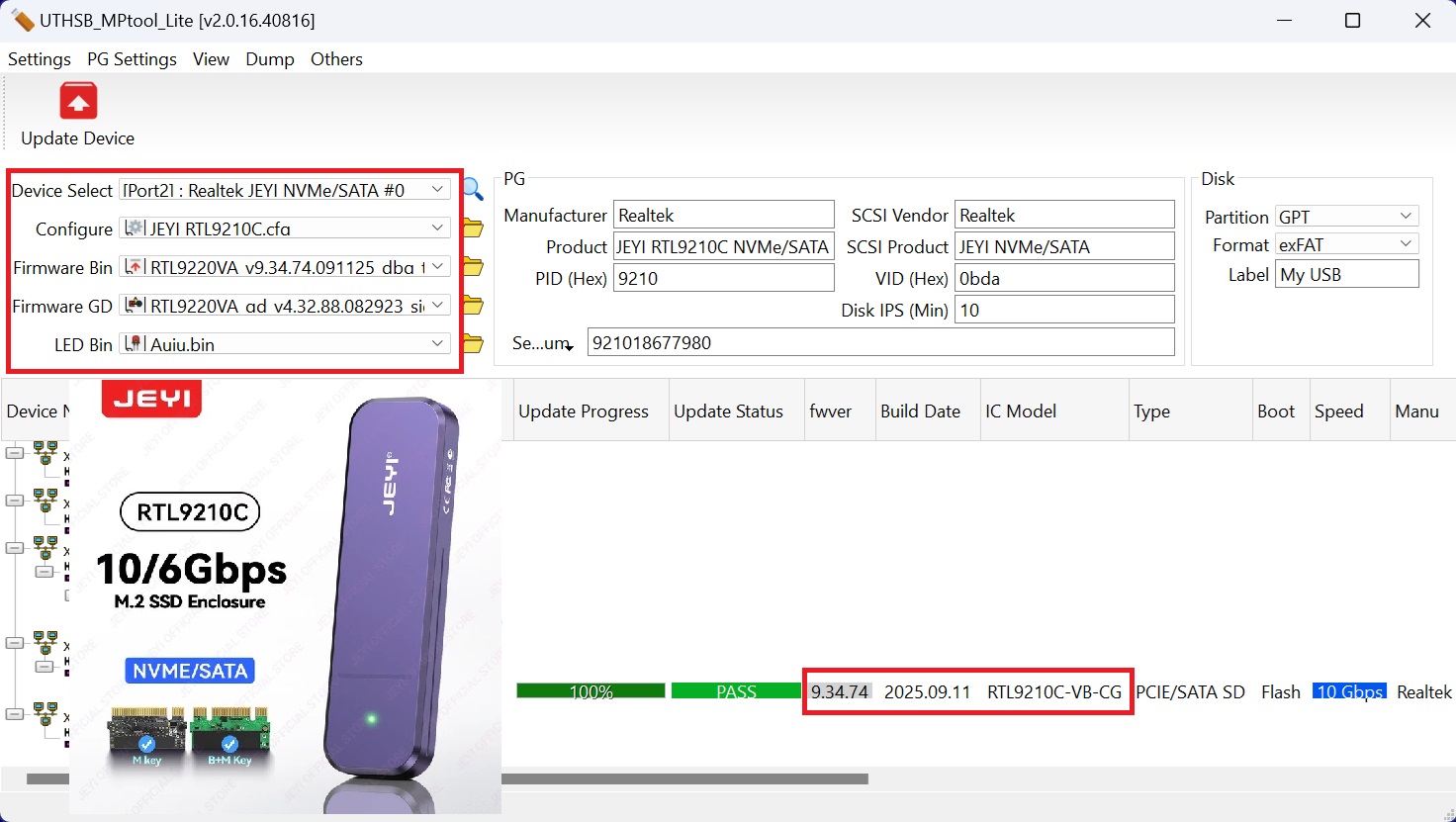

Take note of the 3 Green Dots in the image below and make sure they are ticked

Dont cry at me if you forget to do it and have to unbrick it with tweezers
I short Pin 1 + 2 instead of 1 + 8 as at a surface level it seems safer for the SPI

SUSPEND_DISK_OFF = 0x7 seems to stop the drive fully sleeping after 10 mins
e.g. the light doesnt go blue after 10mins so i may experiment to see if there are any issues
with that flag not inserted into the config at some point

The LED goes blue if you manually eject it in Windows

mega.nz/file/QmYxADoZ#cfHynZVZ2sfw9l25GM...2x7kyvG1eFDMVf-kbGXk

Last edit: 2 天 5 小時前 by Shonk.

The following user(s) said Thank You: Stasiz

Please 登錄 or 新增帳號 to join the conversation.

Stasiz
Offline
poster 4
Enregistré
文章： 17
Thanks: 8

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 小時 8 分鐘前

Based on the fact that RTL9210C(NVMe/SATA)/RTL9210CN(NVMe) is a defective version of RTL9220 and working only on speed 10Gbps, I try flashing and confirm that the RTL9220 firmware is compatible with the RTL9210С(and most likely with RTL9210CN).
But with mandatory flashing of LED Bin.
