Jmicron JMS-586 NVMe/USB 3.2 Controller firmware Version 10.01.00.01









Download:
www.station-drivers.com/index.php/en/com...ntroller/lang,en-gb/

I have a bluendless sata/nvme JMS581 that looks like that with just one slot
dumped the firmware last year but havnt been able to find anything to flash it

anyway the flasher included with this flashes my dump fine
aslong as i dont try modifying the nvram

if i try modifying the nvram it fails

i managed to brick it after a about 8 good flashes
i think i forgot to flash the firmware back complete after a fail before unplugging it
cant remember

it comes up with a weird pid that isnt detected
i tried shorting pins 1+2 of the puya chip it came up with the right vid/pid
but the flasher doesnt see it

think im going to have to program it with a ch341 its a tssop8 though (i think)
i only have test clips for sop8

any idea's?

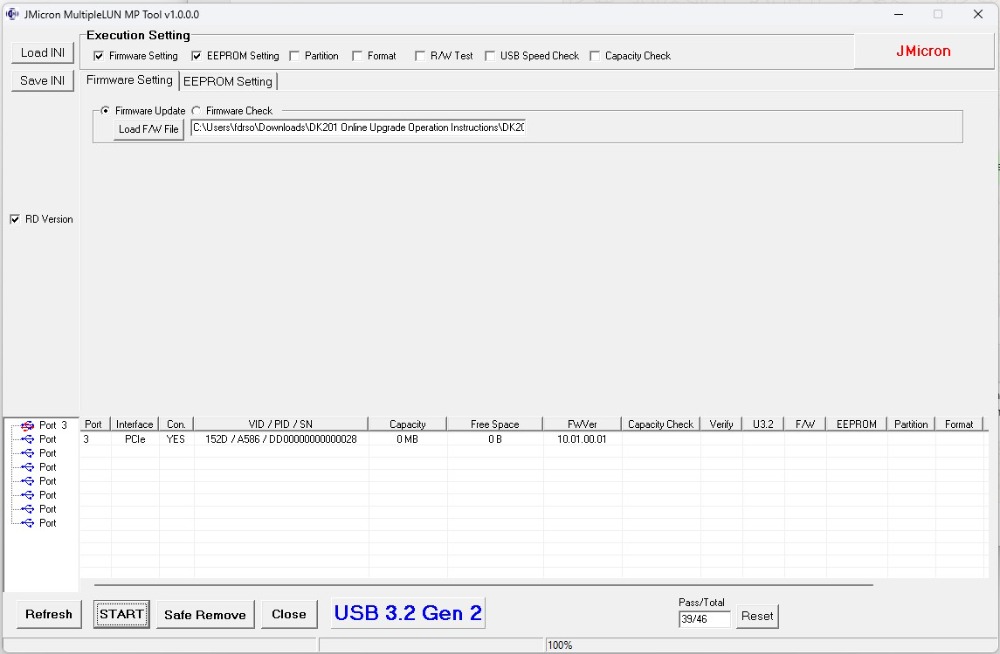

Had to untick all circled for a good flash
maybe due to my dump having the nvram in it?
and worked fine after unplugged and plugged back in

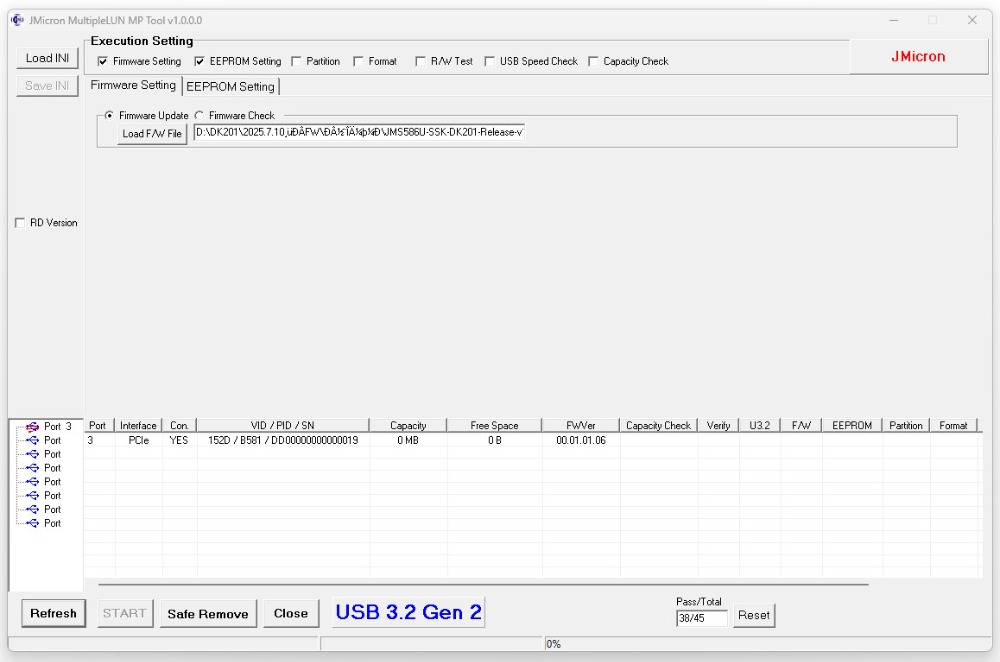

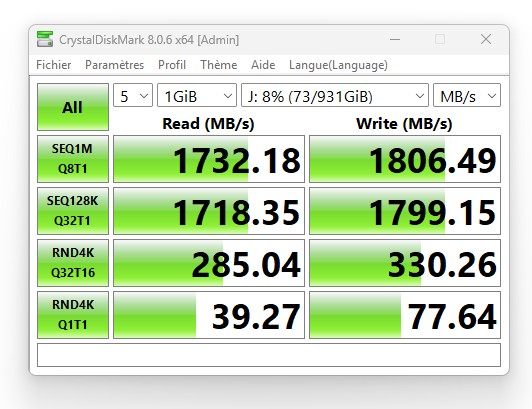

I noticed when updating the firmware, ID changed compared to the original one of the SSK but otherwise works perfectly
