ssd Realtek RTL9220(VA/VB) NVMe/USB 3.2 Controller firmware Version 9.34.55

  • programervn
  • programervn 的個人頭像
  • Offline
  • poster 3
  • poster 3
    Enregistré
  • 文章： 14
  • Thanks: 1

Re: Realtek RTL9220(VA/VB) NVMe/USB 3.2 Controller firmware Version 9.34.55

1 天 5 小時 前 - 1 天 5 小時 前
#5225

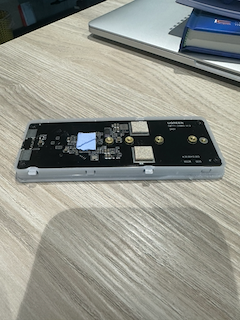

I unscrewed the upper case, remove SSD, and the shell as attachment.
Can you guide me more details how to disassemble to get the mainboard?
I tried using a flat screwdriver to pry it open, but I wasn’t successful.
I attached image link  (I cannot attact image in this post)

drive.google.com/file/d/17sJWV3XlyDdn6_Q-QSUfCBJTS2Rc0kCW/view
drive.google.com/file/d/15gOTMEV5PMkI0XLKDEhPRM8Yh9TvJRUg/view
admin 寫了道：:
Yes, it's easy. Normally, I took the opportunity to put thermal paste on the chipset so that it is in contact with the aluminum part.



Last edit: 1 天 5 小時 前 by programervn. 原因: update image

Please 登錄 or 新增帳號 to join the conversation.

  • admin
  • admin 的個人頭像 Topic Author
  • Offline
  • Admin
  • Admin
    Administrateur
  • 文章： 424
  • Thanks: 198

Re: Realtek RTL9220(VA/VB) NVMe/USB 3.2 Controller firmware Version 9.34.55

1 天 3 小時 前
#5226
The Sabret can be dismantled easily, but the Ugreen, yours, is clipped on, so I don't know.
Configuration
Gigabyte Z890 Master, Intel Cpu Core Ultra 7 265K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX4060,  Alimentation Gigabyte 850W, Samsung SSD 990 Pro, SSD9100 Pro, Clavier Razer Black Window , Souris Razer, Boitier NZXT H6, HP Steelserie, Free Fibre Ultra (8Go/8Go), Lan 10Gb, Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
The following user(s) said Thank You: programervn

Please 登錄 or 新增帳號 to join the conversation.

  • sdefrwggerg
  • sdefrwggerg 的個人頭像
  • Offline
  • regular poster
  • regular poster
    Enregistré
  • 文章： 38
  • Thanks: 21

Re: Realtek RTL9220(VA/VB) NVMe/USB 3.2 Controller firmware Version 9.34.55

4 小時 25 分鐘 前
#5233
admin 寫了道：:


I will try the update directly with the MPTool mini utility because it does not require a configuration file and I think it does not overwrite the configuration of the LED lights, I will confirm this afternoon upon receipt of a new Sabret RTL9220 RGB box


I confirm, it does not erase the configuration of the original firmware but it fails on the update, too bad


If the update fails, note the difference between A/B firmware.
