Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 year 5 months ago
#1158
The usb port is Type-C 3.2 Gen1
[IMG

Please Log in or Create an account to join the conversation.

  • Alien Invader
  • Alien Invader's Avatar
  • Offline
  • Poster
  • Poster
    Enregistré
  • Posts: 7
  • Thanks: 3

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 year 5 months ago - 1 year 5 months ago
#1159
3.2 Gen1 is 5Gbit, some mainboard makers go cheap and wire Type-C ports to 5Gbit for cost cutting. A nice example are those cheap A620 Chipsets which have the option for 10Gbit both from CPU and Chipset.
I recently got a M2 SATA cheap 512GB SSD to test my Unionsine MD202 case cause I had only trouble getting my SM2263XT drive to work with it. For some reason that Intenso NVME SSD ain't playing well with anything. The MD202 works just fine with the other NVME I have around (RTS5765).
Last edit: 1 year 5 months ago by Alien Invader.
The following user(s) said Thank You: admin

Please Log in or Create an account to join the conversation.

  • admin
  • admin's Avatar Topic Author
  • Offline
  • Admin
  • Admin
    Administrateur
  • Posts: 755
  • Thanks: 379

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 year 5 months ago - 1 year 5 months ago
#1160

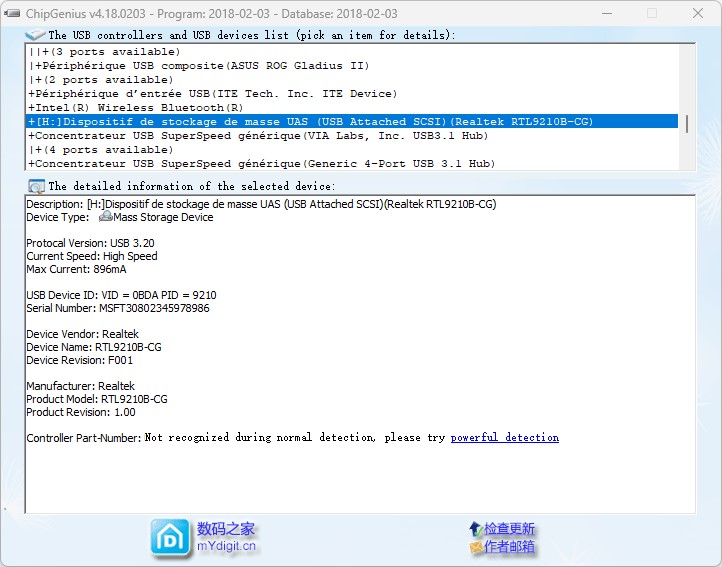

to be sure to be in USB 3.2, check with the Chipgenius utility below

the 500 Mbps instead of 1000Mbps and a speed problem due to the port or the cable as said by Alien Invader
The firmware can also but already check the port then the cable (USB-C port)


This attachment is hidden for guests.
Please log in or register to see it.

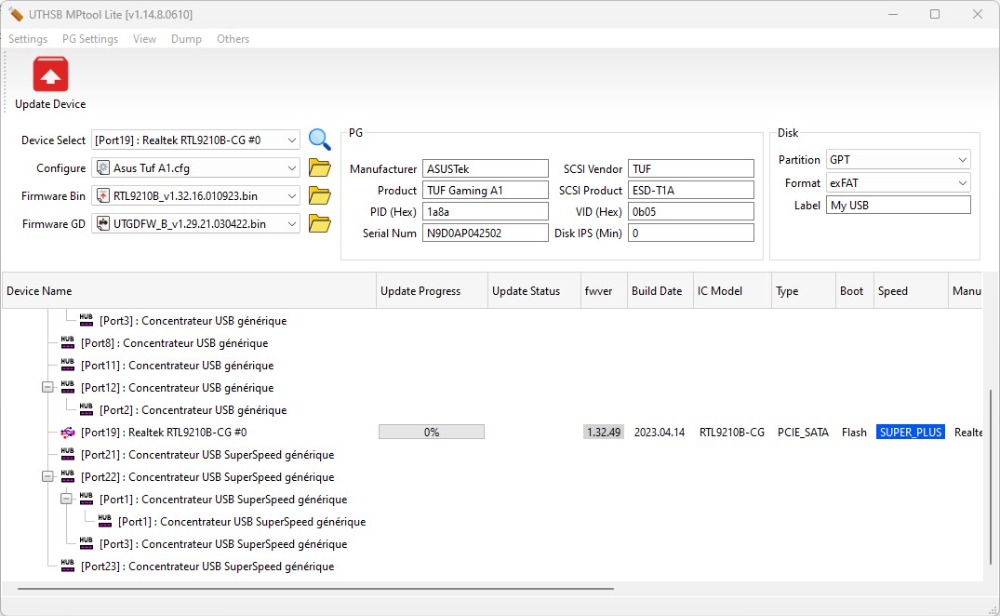

or via the update utility (Super plus)





Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Attachments:

Last edit: 1 year 5 months ago by admin.

Please Log in or Create an account to join the conversation.

  • TiX
  • TiX's Avatar
  • Offline
  • Poster
  • Poster
    Enregistré
  • Posts: 5
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 year 5 months ago
#1163

Please Log in or Create an account to join the conversation.

  • sdefrwggerg
  • sdefrwggerg's Avatar
  • Offline
  • Best Poster
  • Best Poster
    Enregistré
  • Posts: 31
  • Thanks: 20

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 year 5 months ago
#1164
try to set Windows Power saving settings to High
