ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

  • Alien Invader
  • Alien Invader's Avatar
  • Offline
  • Poster
  • Poster
    Enregistré
  • Posts: 7
  • Thanks: 3

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 year 5 months ago - 1 year 5 months ago
#1174
MSI GF66 spec says 1x Type-C USB3.2 Gen1 which means 5Gbit port. There is no USB 10Gbit support on your laptop.

3.2 Gen1 -> 5Gbit (Same as 3.0 / 3.1 Gen1)
3.2 Gen2 -> 10Gbit
3.2 Gen2x2 -> 20Gbit
Last edit: 1 year 5 months ago by Alien Invader.
The following user(s) said Thank You: admin, dmitry

Please Log in or Create an account to join the conversation.

  • admin
  • admin's Avatar Topic Author
  • Offline
  • Admin
  • Admin
    Administrateur
  • Posts: 755
  • Thanks: 379

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 year 5 months ago - 1 year 5 months ago
#1175
Alien Invader it can work but on the USB-C port but not sure it works in 10Gbps

in USB 3.2. Gen1 this is a bit tricky because not clear on the sites

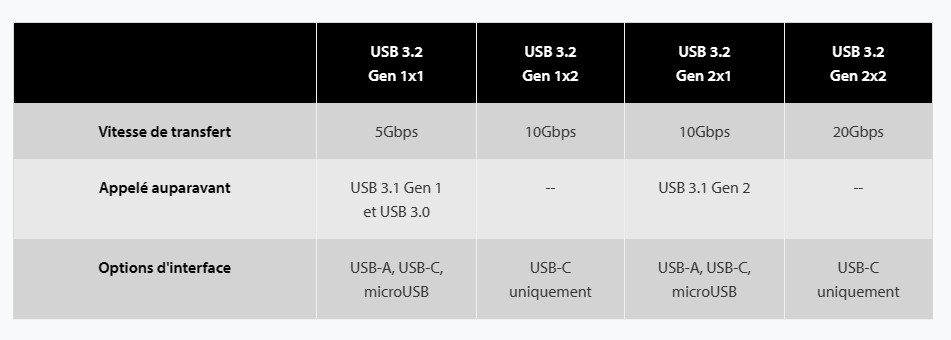

Quelle est la différence entre USB 3.1 Gen 1, Gen 2 et USB 3.2 ? - Kingston Technology

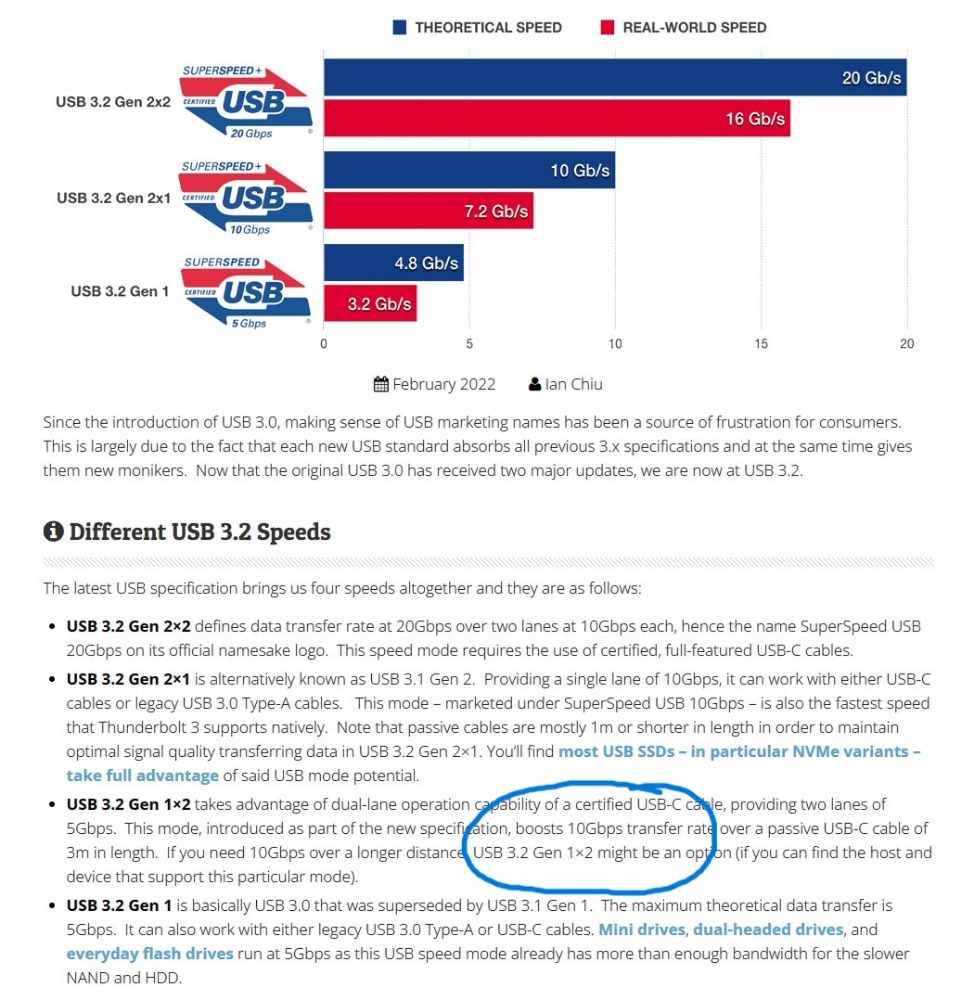

USB 3.2 Speed Comparison & Real-world Performance (everythingusb.com)






Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Last edit: 1 year 5 months ago by admin.

Please Log in or Create an account to join the conversation.

  • admin
  • admin's Avatar Topic Author
  • Offline
  • Admin
  • Admin
    Administrateur
  • Posts: 755
  • Thanks: 379

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 year 5 months ago
#1176
Alien Invader Not easy to know exactly the possibilities of the 3.2 chipset (Gen 1 or Gen 1x1)?

Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Please Log in or Create an account to join the conversation.

  • Alien Invader
  • Alien Invader's Avatar
  • Offline
  • Poster
  • Poster
    Enregistré
  • Posts: 7
  • Thanks: 3

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 year 5 months ago
#1177
If one thing is certain thats the crappy naming of USB after 3.0, they made it even worst now with USB4 just go ahead and check. As for the speed issue I think MSI on their website ( MSI GF66)
says it clearly that the laptop has only 5Gbit USB ports.

Please Log in or Create an account to join the conversation.

  • admin
  • admin's Avatar Topic Author
  • Offline
  • Admin
  • Admin
    Administrateur
  • Posts: 755
  • Thanks: 379

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 year 5 months ago
#1178
Alien Invader thank you for the info but it's to tear your hair out with it's USB 3.2 standard. xxxxxxxxxx bullshit

Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Please Log in or Create an account to join the conversation.
