ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

  • djmaniac44
  • djmaniac44's Avatar
  • Offline
  • Newbie
  • Newbie
    Enregistré
  • Posts: 3
  • Thanks: 3

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 year 2 weeks ago - 1 year 2 weeks ago
#1979
Thanks for your information and documentation.

In the meantime I found some interesting documentation on chinese "AirChip" page (google trans) - Including some recomendation for 3 usecases (mobile data storage, WinToGo, NAS)
www-airchip-org-cn.translate.goog/index....hl=de&_x_tr_pto=wapp
(Original: www.airchip.org.cn/index.php/2022/04/18/9210abfw1298/ )

And a usefull but heated discussion about value ASPMDIS (aka "Active State Power Management Disable" ?)
forums.anandtech.com/threads/stable-nvme...572973/page-18#posts


Last edit: 1 year 2 weeks ago by djmaniac44.
The following user(s) said Thank You: xiaomantou, aktaş

Please Log in or Create an account to join the conversation.

  • aktaş
  • aktaş's Avatar
  • Offline
  • Newbie
  • Newbie
    Enregistré
  • Posts: 1
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 year 2 weeks ago
#1982
Hello dear members. Below my message, I shared the internet address link of the external SSD box I use. The product is made OEM in China by a local company in my country. The chipset is seen as rtl9210b-cg. The product includes an adata legend 800 lite 1 tb ssd with exfat file system. The product provides full USB 3.2 gen 2 port speed. I have no problems using it on a computer or Android phones such as Xiaomi. By the way, my phone is Samsung S23 Ultra. When I connect the product to my phone and try to copy files, the connection is disconnected after almost 700 MB. Even without reformatting the product on a computer or another Android phone, it does not connect to my own phone. I tried all the firmwires posted on the forum. but I didn't get any results. What can I do?

bix.com.tr/bix-bx05hd-type-c-3-1-gen2-to...m-2-ssd-disk-kutusu/

Please Log in or Create an account to join the conversation.

  • forum2k
  • forum2k's Avatar
  • Offline
  • Newbie
  • Newbie
    Enregistré
  • Posts: 1
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 year 1 week ago - 1 year 1 week ago
#1996
after updating to the latest firmware all ssd are not writeable, any idea how to fix this ?
I used the attached .cfg files...when flashing to higher firmware....

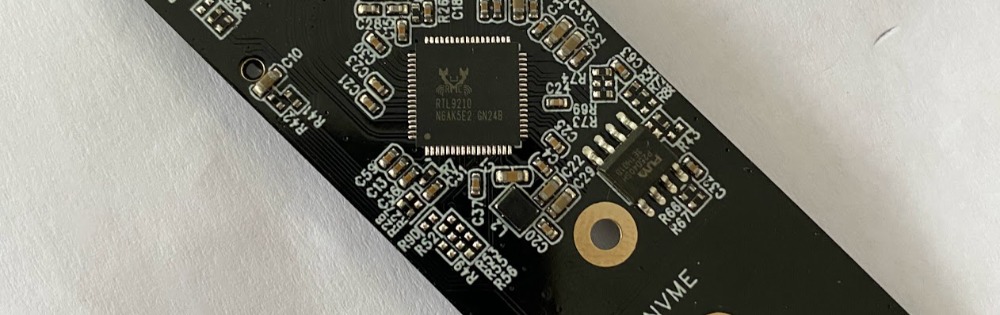

Chipset pic attached, seems to be:

RTL9210 N6AK5E2 GN24B



Nick
RTL9210.cfg:

VID = 0xbda
PID = 0x9210
MANUFACTURE = "Realtek"
SCSI_VENDOR = "Realtek"
PRODUCT = "RTL9210"
SCSI_PRODUCT = "RTL9210"
SERIAL = "802345978984"
DISK_IPS_THRES = 30
LED = 0x1
CUSTOMIZED_LED = 00 00
SUSPEND_DISK_OFF = 0x7
SCSI_WP_PIN = 0xc
UART_DBG_PIN = 5
PERIPH_API = 1
UART_BAUD_RATE = 57600

Attachments:

Last edit: 1 year 1 week ago by forum2k.

Please Log in or Create an account to join the conversation.

  • sdefrwggerg
  • sdefrwggerg's Avatar
  • Offline
  • Best Poster
  • Best Poster
    Enregistré
  • Posts: 31
  • Thanks: 20

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 year 1 week ago - 1 year 1 week ago
#2000
write protection switch present 0xa, 0xc
SCSI_WP_PIN = 0x0
SD_MMC_TYPE = 0x0
Last edit: 1 year 1 week ago by sdefrwggerg.

Please Log in or Create an account to join the conversation.

  • TheGiolly
  • TheGiolly's Avatar
  • Offline
  • Poster
  • Poster
    Enregistré
  • Posts: 10
  • Thanks: 2

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 year 6 days ago
#2007
Good afternoon,
I have an external enclousure with a Realtek RTL9210B-CG.
I downloaded firmware 1.32.87 but, when I open UTHSB_MPtool_Lite, the "Configure" option is blank and if I select "configure\RTL9210B_CG.cfg" the option stays blank.
If I click on the "Update Device" button, I get a message saying "No configure file".
How can I solve this problem?
Thank you in advance

[img

Code:
************************************************************** Device : [Port20] : Realtek RTL9210B-CG #0 ************************************************************** U2PHY : 02 f4 9b e0 e1  U3PHY : 02 d4 09 00 d5 00 80  VID : 0x0bda PID : 0x9210 MANUFACTURE : "Realtek" PRODUCT : "RTL9210B-CG" SERIAL : "012345678906" SCSI_PRODUCT : "RTL9210B-CG     " SCSI_VENDOR : "Realtek " USB_SELF_PWR : n/a DISK_HOTPLUG : 0x00 LED : 0x02 PINMUX1 : 0x00000000 PINMUX2 : 0x00000000 U2_MAXPWR : 0xfa U3_MAXPWR : 0x70 ASPMDIS : 0x00 PCIE_REFCLK : n/a DISK_IPS_THRES : n/a SWR_1_2V : n/a EN_UPS : n/a PD : n/a CUSTOMIZED_LED : 01 01 00 00 00 00 00 00 00 00 00 00 00 00 00  SUSPEND_LED_OFF : n/a FORCE_USB_SPEED : n/a FORCE_PCIE_SPEED : n/a EN_U1U2 : n/a FORCE_USB_QUIRK : n/a FORCE_PCIE_QUIRK : n/a FAN : n/a DIS_SHOW_EMPTY_DISK : n/a FORCE_SATA_NORMAL_DMA : n/a UART_DBG_PIN : 0x05 FINGER_PRINT_EN : n/a RM_INTERNAL_RD : n/a HS_AUTO_SWITCH : n/a UART_BAUD_RATE : n/a CUSTOMIZED_DISK_IDENTIFY : n/a HW_LED_CFG : n/a CDROM_CFG : n/a SUPPORT_HID : n/a LATE_INIT_DISK : n/a SCSI_WP_PIN : n/a SD_MMC_TYPE : n/a FORCE_PORT_TYPE : n/a BCDDEVICE : n/a SUSPEND_DISK_OFF : n/a SCSI_WB_PIN : n/a CUSTOMIZED_FEATURE : n/a PERIPH_API : n/a RAID_CFG : n/a Boot Mode : Flash FW Ver : 1.29.12 FW Build Date : 2022.01.11 IC Pkg Type : PCIE UUID : n/a Disconn_ForceUSB2 : false

Please Log in or Create an account to join the conversation.
