ssd Question NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Replied by Laroldski on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 month 2 weeks ago #2716
@sdefrwggerg I was wondering if you can look at post 2962 in the link because I haven't made a configure file for the TRL9210 or RTL9220 and I want to make one I want to make sure I don't mess anything up.

www.station-drivers.com/index.php/en/for...rsion-1-xx?start=355



Please Log in or Create an account to join the conversation.

Replied by Laroldski on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 month 1 week ago #2757
I'm having a strange problem with these enclosures that I have never had with any enclosure before,they use an RTL9210 controller.

www.aliexpress.com/item/1005004963769541...n.317.5d431802r7vavP

The problem I'm having is after I flashed one enclosure with firmware v1.32.90 and was successful with updated one enclosures firmware the next one failed no matter how many times I tried and no matter what firmware I used.
I looked at the dump file for each enclosure only to find one thing different and that was the serial numbers,the enclosure that flashed and updated fine serial number is 012345678914 and the one that failed was 012345678915.

The 4 at the end of the serial number changed to a 5 and for some reason it also changed the serial number on the configure file on it's own,I use configure file RTL9210_Lite_10.cfg for both enclosures.

I was able to get the enclosure that failed to flash to update successfully but only after I changed the last digit in the serial number from a 5 to a 4,I should also note that it also has changed from 4 to 6 after I tried flashing it different times to see what was going on with it.

This is the Dump information from the enclosure that flash fine every time.**************************************************************Device : [Port8] : Realtek RTL9210B NVME #0**************************************************************U2PHY : 02 f4 9b e0 e1U3PHY : 02 d4 09 00 d5 00 80VID : 0x0bdaPID : 0x9210MANUFACTURE : "Realtek"PRODUCT : "RTL9210B NVME"SERIAL : "012345678914"SCSI_PRODUCT : "RTL9210B NVME "SCSI_VENDOR : "Realtek "DISK_HOTPLUG : n/aLED : 0x01PINMUX1 : 0x00070000PINMUX2 : 0x00000000U2_MAXPWR : 0xfaU3_MAXPWR : 0x70ASPMDIS : 0x00PCIE_REFCLK : n/aDISK_IPS_THRES : n/aSWR_1_2V : n/aEN_UPS : n/aPD : n/aCUSTOMIZED_LED : n/aSUSPEND_LED_OFF : n/aFORCE_USB_SPEED : n/aFORCE_PCIE_SPEED : n/aEN_U1U2 : n/aFORCE_USB_QUIRK : n/aFORCE_PCIE_QUIRK : n/aFAN : n/aDIS_SHOW_EMPTY_DISK : n/aFORCE_SATA_NORMAL_DMA : n/aUART_DBG_PIN : n/aFINGER_PRINT_EN : n/aRM_INTERNAL_RD : n/aHS_AUTO_SWITCH : n/aFP_UART_BAUD_RATE : n/aCUSTOMIZED_DISK_IDENTIFY : n/aHW_LED_CFG : n/aCDROM_CFG : n/aSUPPORT_HID : n/aLATE_INIT_DISK : n/aSCSI_WP_PIN : n/aSD_MMC_TYPE : n/aEFUSE :00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
 Boot Mode : FlashFW Ver : 1.32.901FW Build Date : 2022.12.07IC Pkg Type : PCIEUUID : n/a Disconn_ForceUSB2 : 0x00



This is the Dump information from the enclosure that gives me problems.
 **************************************************************Device : [Port8] : Realtek RTL9210B NVME #0**************************************************************U2PHY : 02 f4 9b e0 e1U3PHY : 02 d4 09 00 d5 00 80VID : 0x0bdaPID : 0x9210MANUFACTURE : "Realtek"PRODUCT : "RTL9210B NVME"SERIAL : "012345678916"SCSI_PRODUCT : "RTL9210B NVME "SCSI_VENDOR : "Realtek "DISK_HOTPLUG : n/aLED : 0x01PINMUX1 : 0x00070000PINMUX2 : 0x00000000U2_MAXPWR : 0xfaU3_MAXPWR : 0x70ASPMDIS : 0x00PCIE_REFCLK : n/aDISK_IPS_THRES : n/aSWR_1_2V : n/aEN_UPS : n/aPD : n/aCUSTOMIZED_LED : n/aSUSPEND_LED_OFF : n/aFORCE_USB_SPEED : n/aFORCE_PCIE_SPEED : n/aEN_U1U2 : n/aFORCE_USB_QUIRK : n/aFORCE_PCIE_QUIRK : n/aFAN : n/aDIS_SHOW_EMPTY_DISK : n/aFORCE_SATA_NORMAL_DMA : n/aUART_DBG_PIN : n/aFINGER_PRINT_EN : n/aRM_INTERNAL_RD : n/aHS_AUTO_SWITCH : n/aFP_UART_BAUD_RATE : n/aCUSTOMIZED_DISK_IDENTIFY : n/aHW_LED_CFG : n/aCDROM_CFG : n/aSUPPORT_HID : n/aLATE_INIT_DISK : n/aSCSI_WP_PIN : n/aSD_MMC_TYPE : n/aEFUSE :00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
 Boot Mode : FlashFW Ver : 1.32.901FW Build Date : 2022.12.07IC Pkg Type : PCIEUUID : n/a Disconn_ForceUSB2 : 0x00


Last Edit:1 month 1 week ago by Laroldski
Last edit: 1 month 1 week ago by Laroldski.

Please Log in or Create an account to join the conversation.

Replied by blackbile on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 month 1 week ago #2773
This message contains secure information

Please Log in or Create an account to join the conversation.

  • admin
  • admin's Avatar Offline Topic Author
  • Admin
  • Admin
    Administrateur
  • Posts: 556
  • Thanks: 252

Replied by admin on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 2 weeks 3 days ago #2865

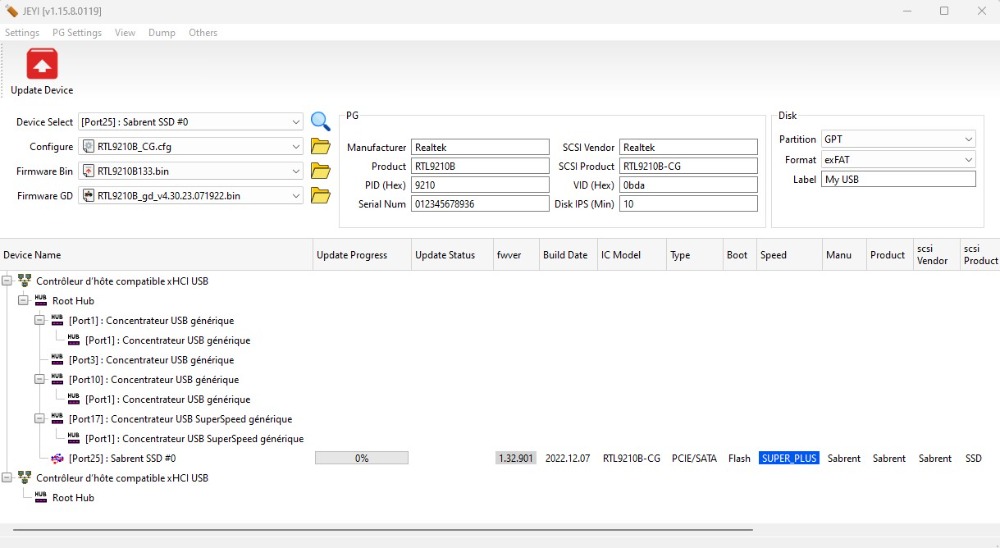

    Realtek RTL92xx(B) NVMe/USB 3.1 Controller firmware Version 1.33.7.191023





Donwload

NVMe/USB 3.1 (station-drivers.com)


Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Last Edit:2 weeks 3 days ago by admin
Last edit: 2 weeks 3 days ago by admin.
The following user(s) said Thank You: 4ekavo

Please Log in or Create an account to join the conversation.

Replied by Laroldski on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 2 weeks 3 days ago #2867
@admin I tried downloading the newest RTL9210 firmware that you just posted but I keep getting an error message and I'm getting the same error message for anything else I try and download.

www.station-drivers.com/index.php/en/com...7.191023/lang,en-gb/

Please Log in or Create an account to join the conversation.
