Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 year 1 month ago
#1883
p33994451 wrote:
I'd like to ask if anyone has purchased a similar version that comes with a fan?

www.lazada.com.ph/products/m2-nvme-ngff-...XajTE.364bnXajnXajTE

[img




Next time just buy one with a metal heatsink case, tiny fans are dubious and unreliable, at best used in conjunction with a heatsink themselves.

Please Connexion or Create an account to join the conversation.

  • sabamacx
  • sabamacx's Avatar
  • Offline
  • Newbie
  • Newbie
    Enregistré
  • Posts: 1
  • Thanks: 1

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 year 1 month ago
#1903
SmallRig SD-01

M.2 SSD Enclosure SD-01 3479
www.smallrig.com/SmallRig-M-2-SSD-Enclosure-SD-01-3479.html

Out of the box worked perfectly in Windows, didn't work at all in Linux.
Shipped configuration:
Code:
************************************************************** Device : [Port4] : SmallRig SD-01 #0 ************************************************************** U2PHY : 02 f4 9b e0 e1  U3PHY : 02 d4 09 00 d5 00 80  VID : 0x0bda PID : 0x9210 MANUFACTURE : "SmallRig" PRODUCT : "SD-01" SERIAL : "202205040467" SCSI_PRODUCT : "SD-01           " SCSI_VENDOR : "SmallRig" USB_SELF_PWR : n/a DISK_HOTPLUG : 0x00 LED : 0x02 PINMUX1 : 0x00000000 PINMUX2 : 0x00000700 U2_MAXPWR : 0xfa U3_MAXPWR : 0x00 ASPMDIS : 0x00 PCIE_REFCLK : n/a DISK_IPS_THRES : 0x0a SWR_1_2V : n/a EN_UPS : n/a PD : n/a CUSTOMIZED_LED : n/a SUSPEND_LED_OFF : n/a FORCE_USB_SPEED : n/a FORCE_PCIE_SPEED : n/a EN_U1U2 : n/a FORCE_USB_QUIRK : n/a FORCE_PCIE_QUIRK : n/a FAN : n/a DIS_SHOW_EMPTY_DISK : n/a FORCE_SATA_NORMAL_DMA : n/a UART_DBG_PIN : 0x05 FINGER_PRINT_EN : n/a RM_INTERNAL_RD : n/a HS_AUTO_SWITCH : n/a UART_BAUD_RATE : n/a CUSTOMIZED_DISK_IDENTIFY : n/a HW_LED_CFG : n/a CDROM_CFG : n/a SUPPORT_HID : n/a LATE_INIT_DISK : n/a SCSI_WP_PIN : n/a SD_MMC_TYPE : n/a FORCE_PORT_TYPE : n/a BCDDEVICE : n/a SUSPEND_DISK_OFF : n/a SCSI_WB_PIN : n/a CUSTOMIZED_FEATURE : n/a PERIPH_API : n/a RAID_CFG : n/a Boot Mode : Flash FW Ver : 1.29.12 FW Build Date : 2022.01.11 IC Pkg Type : PCIE/SATA UUID : n/a Disconn_ForceUSB2 : false

Successful flash to 1.32.87.082923, works correctly now in Linux. Configuration after flash:
Code:
************************************************************** Device : SmallRig RTL9210 ************************************************************** U2PHY : 02 f4 9b e0 e1  U3PHY : 02 d4 09 00 d5 00 80  VID : 0x0bda PID : 0x9210 MANUFACTURE : "SmallRig" PRODUCT : "SD-01" SERIAL : "202205040468" SCSI_PRODUCT : "n/a" SCSI_VENDOR : "SmallRig" USB_SELF_PWR : n/a DISK_HOTPLUG : 0x00 LED : 0x02 PINMUX1 : 0x00000000 PINMUX2 : 0x00000700 U2_MAXPWR : 0xfa U3_MAXPWR : 0x00 ASPMDIS : 0x00 PCIE_REFCLK : n/a DISK_IPS_THRES : 0x0a SWR_1_2V : n/a EN_UPS : n/a PD : n/a CUSTOMIZED_LED : n/a SUSPEND_LED_OFF : n/a FORCE_USB_SPEED : n/a FORCE_PCIE_SPEED : n/a EN_U1U2 : n/a FORCE_USB_QUIRK : n/a FORCE_PCIE_QUIRK : n/a FAN : n/a DIS_SHOW_EMPTY_DISK : n/a FORCE_SATA_NORMAL_DMA : n/a UART_DBG_PIN : 0x05 FINGER_PRINT_EN : n/a RM_INTERNAL_RD : n/a HS_AUTO_SWITCH : n/a UART_BAUD_RATE : n/a CUSTOMIZED_DISK_IDENTIFY : n/a HW_LED_CFG : n/a CDROM_CFG : n/a SUPPORT_HID : n/a LATE_INIT_DISK : n/a SCSI_WP_PIN : n/a SD_MMC_TYPE : n/a FORCE_PORT_TYPE : n/a BCDDEVICE : n/a SUSPEND_DISK_OFF : n/a SCSI_WB_PIN : n/a CUSTOMIZED_FEATURE : n/a PERIPH_API : n/a RAID_CFG : n/a Boot Mode : Flash FW Ver : 1.32.87 FW Build Date : 2023.08.29 IC Pkg Type : PCIE/SATA UUID : n/a Disconn_ForceUSB2 : false
The following user(s) said Thank You: admin

Please Connexion or Create an account to join the conversation.

  • YuriKun
  • YuriKun's Avatar
  • Offline
  • Newbie
  • Newbie
    Enregistré
  • Posts: 1
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 year 3 weeks ago - 1 year 3 weeks ago
#1945
I use device RTL9210B-CG first day.
Install good NVME SSD.
The speed was only 37Mb/s in USB 3.1 port.
After Update the FW to
- RTL9210B_v1.32.87.082923_signed.bin
- RTL9210B_gd_v4.30.23.071922.bin
my device work only in USB2.0 port and not work in USB3.x ports.
Please, help me.**************************************************************
Device : [Port10] : Realtek RTL9210B-CG #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "Realtek"
PRODUCT : "RTL9210B-CG"
SERIAL : "012345678914"
SCSI_PRODUCT : "RTL9210B-CG "
SCSI_VENDOR : "Realtek "
DISK_HOTPLUG : 0x00
LED : 0x01
PINMUX1 : 0x00000000
PINMUX2 : 0x00000000
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x70
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : n/a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : n/a
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
FP_UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
EFUSE :
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
Boot Mode : Flash
FW Ver : 1.32.87
FW Build Date : 2023.08.29
IC Pkg Type : PCIE_SATA
UUID : n/a
Disconn_ForceUSB2 : 0x00
Last edit: 1 year 3 weeks ago by YuriKun.

Please Connexion or Create an account to join the conversation.

  • admin
  • admin's Avatar Topic Author
  • Offline
  • Admin
  • Admin
    Administrateur
  • Posts: 755
  • Thanks: 379

Re: NVME USB drives Realtek RTL9210B / RTL9210A Firmware only for B v1.29.12

1 year 3 weeks ago - 1 year 3 weeks ago
#1953

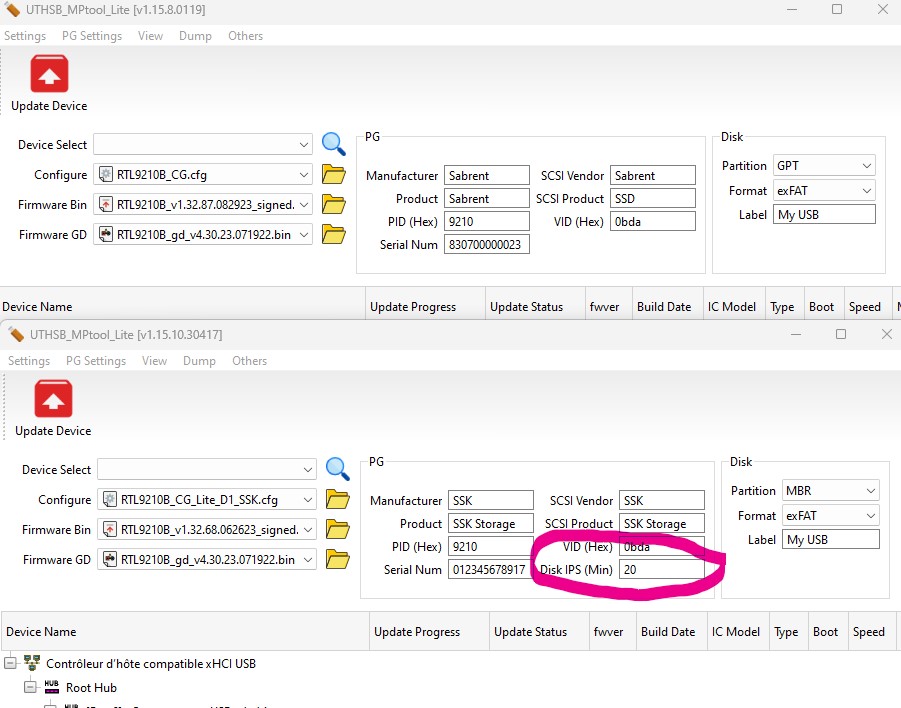

with the new MPTOOL you can set the sleep time of your SSD

the choice is before the day before and 1 or 10 or 20 or 30 ect and 0 for never



www.station-drivers.com/index.php/en-us/...8.062623/lang,en-us/



Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Last edit: 1 year 3 weeks ago by admin.
The following user(s) said Thank You: sdefrwggerg

Please Connexion or Create an account to join the conversation.

  • sdefrwggerg
  • sdefrwggerg's Avatar
  • Offline
  • Best Poster
  • Best Poster
    Enregistré
  • Posts: 31
  • Thanks: 20

Re: NVME USB drives Realtek RTL9210B / RTL9210A Firmware only for B v1.29.12

1 year 2 weeks ago - 1 year 2 weeks ago
#1967

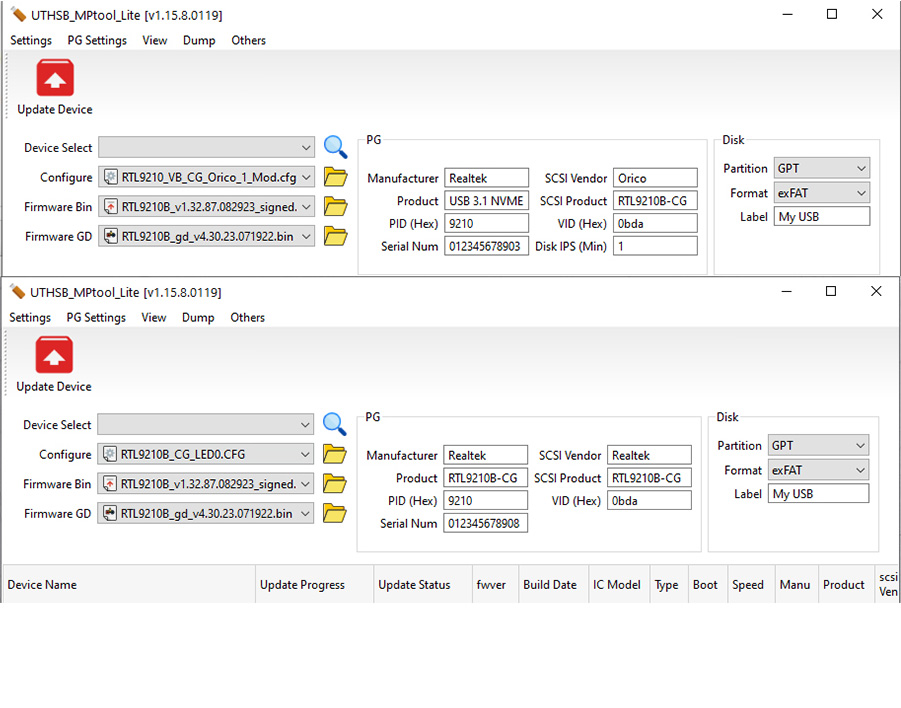

That's not entirely true you need to remove PCIE_PWRCUT_THRES = 0xa and replace it in config file with:

;10 minutes of idle time will disable disk power
DISK_IPS_THRES = 1

www.station-drivers.com/index.php/en-us/...29-12?start=110#1046
Last edit: 1 year 2 weeks ago by sdefrwggerg.
The following user(s) said Thank You: admin, Stasiz
