NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Blast Beat
Çevrim dışı
Poster
Enregistré
İletiler: 7
Thanks: 1

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 gün 17 saat önce

#3892

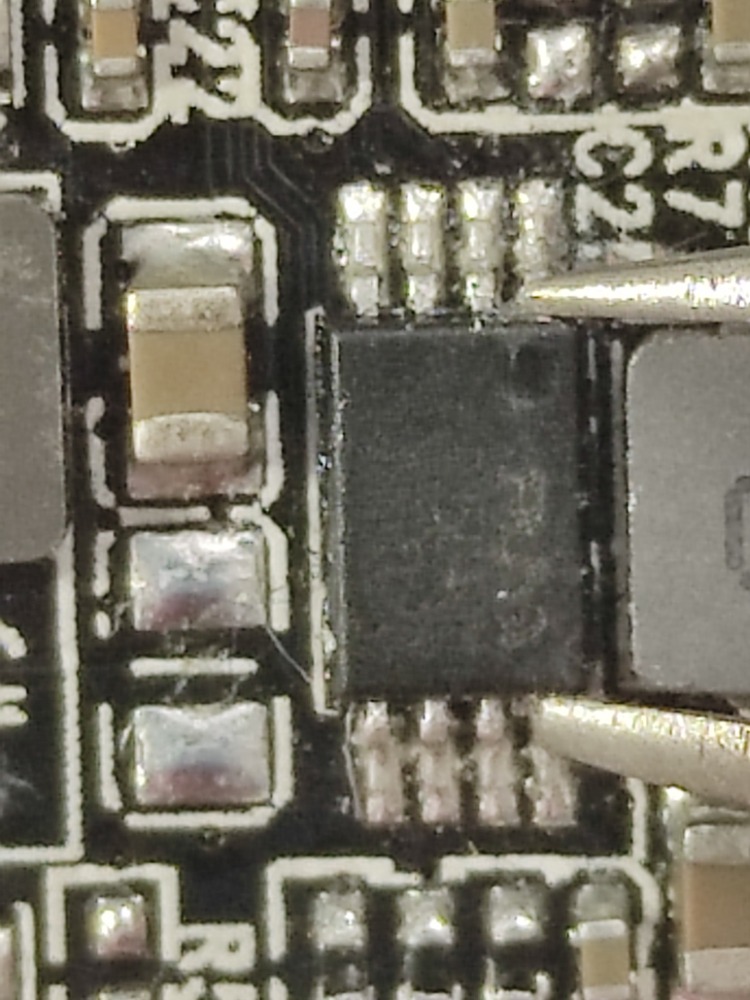

last attempt made with the electrician's tweezers and the smartphone as a microscope, still no result.

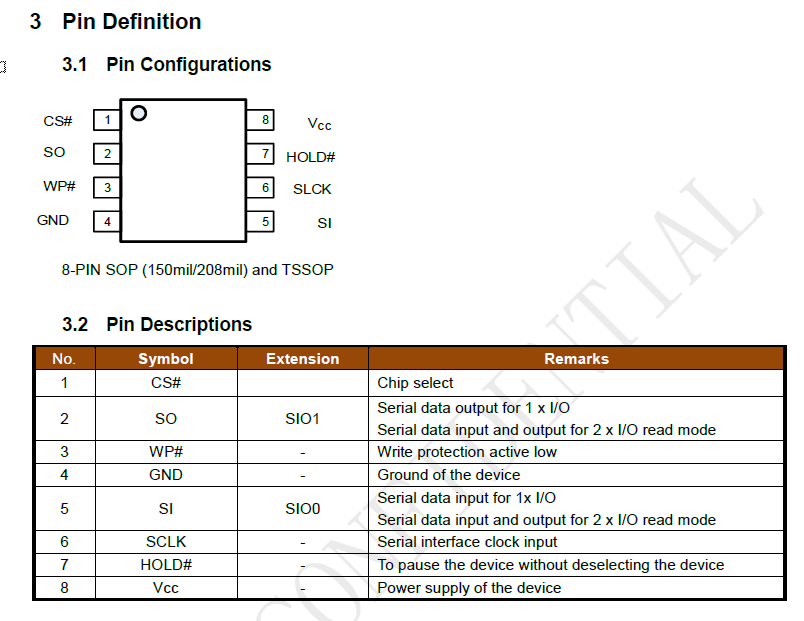

The rom is a Puya P25D40H

Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.

JimmieDamn
Çevrim dışı
Newbie
Enregistré
İletiler: 2
Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 gün 16 saat önce - 1 gün 15 saat önce

#3893

@sdefrwggerg

Could you please reupload the configs files folder? I desperately need the AM8180 config file.

If someone else has it, please share it!

Here is the dump (it's a "Lemorele" enclosure)

**************************************************************
Device : [Port3] : AMicro AM8180 NVME #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x1de1
PID : 0xe101
MANUFACTURE : "AMicro"
PRODUCT : "AM8180"
SERIAL : "012345681564"
SCSI_PRODUCT : "AM8180 NVME "
SCSI_VENDOR : "AMicro "
USB_SELF_PWR : n/a
DISK_HOTPLUG : 0x00
LED : 0x01
PINMUX1 : 0x00000000
PINMUX2 : 0x00000070
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x70
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : n/a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : n/a
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : 0x01
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a

Boot Mode : Flash
FW Ver : 1.27.23
FW Build Date : 2021.09.06
IC Pkg Type : PCIE
UUID : n/a

Disconn_ForceUSB2 : false

Son düzenleme: 1 gün 15 saat önce Düzenleyen:JimmieDamn

Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.

Blast Beat
Çevrim dışı
Poster
Enregistré
İletiler: 7
Thanks: 1

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 gün 14 saat önce

#3894

Finally went good
Used the front port of another pc.
Not sure it was bricked because when i insert the usb cable on the second pc, windows recognise it soon.
My main pc need a format

Şu kullanıcı(lar) teşekkür etti: admin

Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.

Laroldski
Çevrim dışı
Best Poster
Enregistré
İletiler: 53
Thanks: 6

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 gün 5 saat önce

#3895

@JimmieDamn Here is the file your wanting download it from the link.

www.sendspace.com/file/eetjfv

Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.

JimmieDamn
Çevrim dışı
Newbie
Enregistré
İletiler: 2
Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

19 saat 19 dakika önce - 18 saat 6 dakika önce

#3900

@Laroldski
Ok thank you very much.

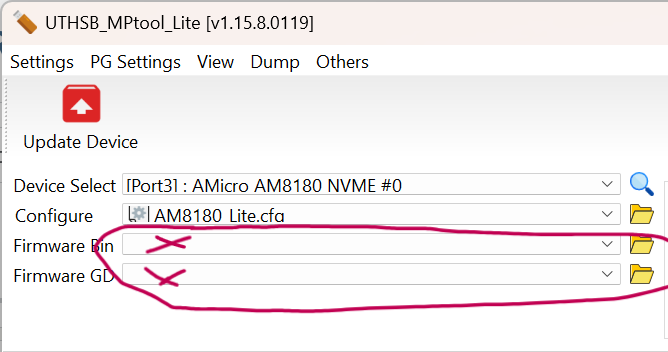

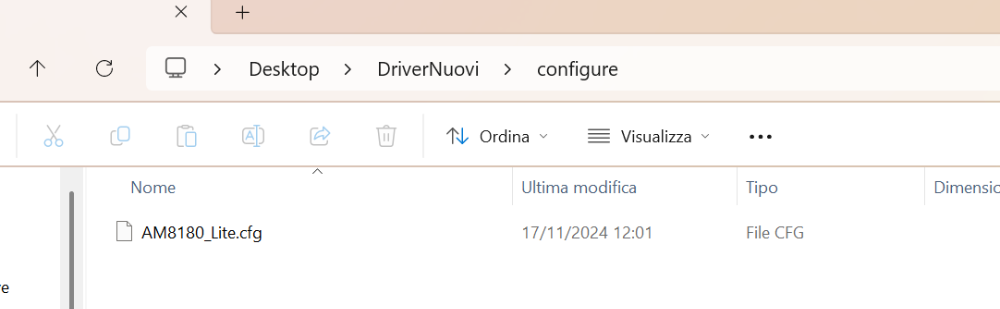

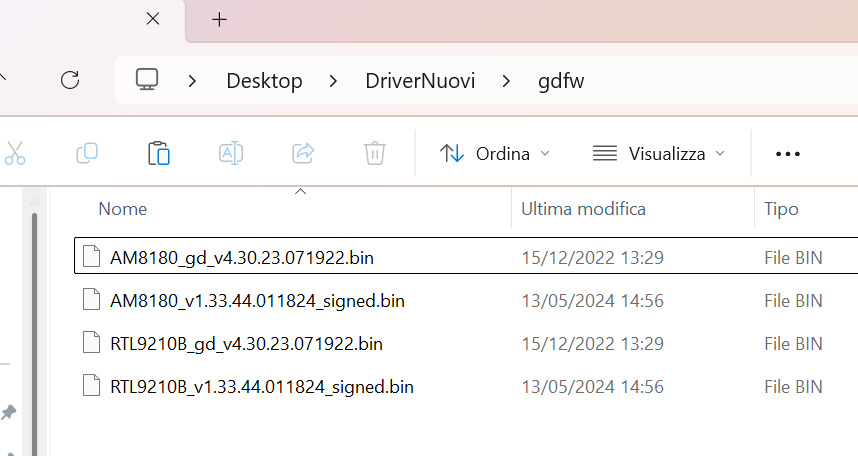

Now when I select that config file that you uploaded, the uthsb tool lite doesn't select the firmware bin and GD. I'm trying to flash the latest v1.33.44 driver, but it doesn't select the files when I try to flash to the Lemorele AM8180 enclosure. I've tried renaming the firmwares with "AM8180" but no luck. How should I modifiy the bin files so that I can select them?
