Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 個月 1 星期 前
#3872
Hello everyone,
i got an enclosure JEYI i9GTR-2280 bought on Aliexpress with a RTL9210 chip and a very old firmware v1.21.17.
The goal is to flash  v1.29.12.

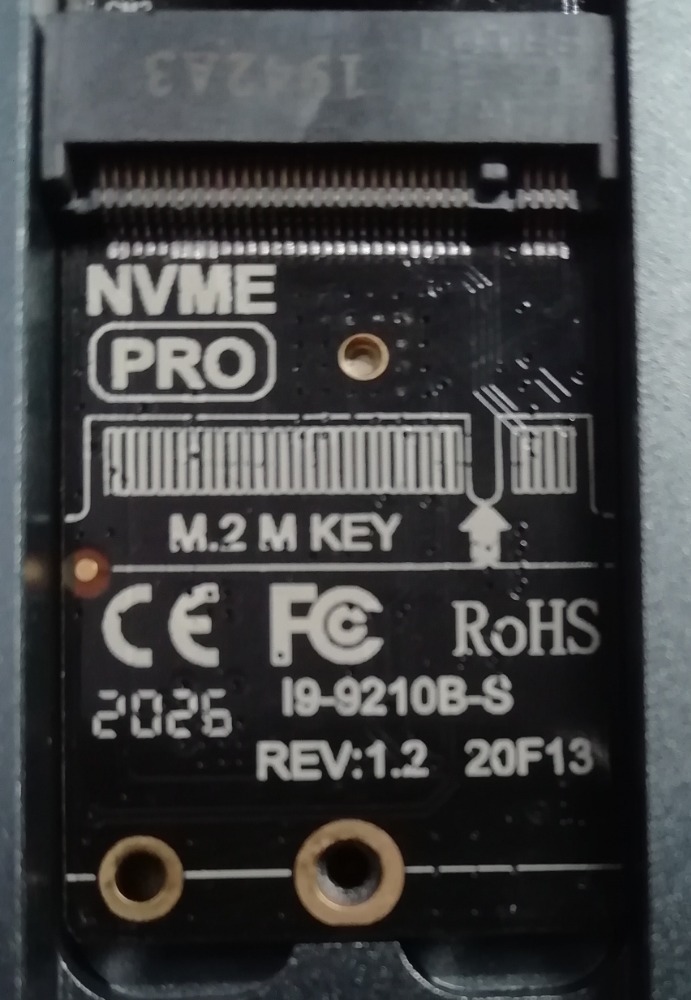

Windows see the enclosure as RTL9210 but on the pcb i can read 9210B.
This is my dump file, can you please edit it?
Code:
************************************************************** Device : [Port7] : Realtek RTL9210 NVME #0 ************************************************************** U2PHY : 02 f4 9b e0 e1  U3PHY : 02 d4 09 00 d5 00 80  VID : 0x0bda PID : 0x9210 MANUFACTURE : "Realtek" PRODUCT : "RTL9210" SERIAL : "012345679060" SCSI_PRODUCT : "RTL9210 NVME    " SCSI_VENDOR : "Realtek " DISK_HOTPLUG : 0x00 LED : 0x01 PINMUX1 : 0x00070000 PINMUX2 : 0x00000000 U2_MAXPWR : 0xfa U3_MAXPWR : 0x70 ASPMDIS : 0x00 PCIE_REFCLK : n/a DISK_IPS_THRES : n/a SWR_1_2V : n/a EN_UPS : n/a PD : n/a CUSTOMIZED_LED : n/a SUSPEND_LED_OFF : n/a FORCE_USB_SPEED : n/a FORCE_PCIE_SPEED : n/a EN_U1U2 : n/a FORCE_USB_QUIRK : n/a FORCE_PCIE_QUIRK : n/a FAN : n/a DIS_SHOW_EMPTY_DISK : n/a FORCE_SATA_NORMAL_DMA : n/a UART_DBG_PIN : n/a FINGER_PRINT_EN : n/a RM_INTERNAL_RD : n/a HS_AUTO_SWITCH : n/a FP_UART_BAUD_RATE : n/a CUSTOMIZED_DISK_IDENTIFY : n/a HW_LED_CFG : n/a CDROM_CFG : n/a SUPPORT_HID : n/a LATE_INIT_DISK : n/a SCSI_WP_PIN : n/a SD_MMC_TYPE : n/a EFUSE :         00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F        ------------------------------------------------- Boot Mode : Flash FW Ver : 1.21.17 FW Build Date : 2020.04.14 IC Pkg Type : PCIE UUID : n/a Disconn_ForceUSB2 : 0x00

附件:

Please 登錄新增帳號 to join the conversation.

  • admin
  • admin 的個人頭像 Topic Author
  • 离线
  • Admin
  • Admin
    Administrateur
  • 文章: 777
  • Thanks: 383

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 個月 1 星期 前
#3873

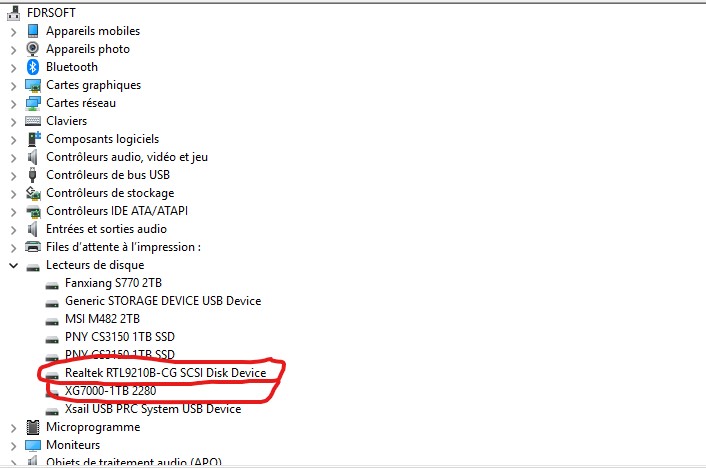

Hi ,on the definition that Windows detects it does not matter whether it is a RTL9210 or 9210B because you can name it whatever you want as mine is an Asus TUF A1



Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
The following user(s) said Thank You: Blast Beat

Please 登錄新增帳號 to join the conversation.

  • Blast Beat
  • Blast Beat 的個人頭像
  • 离线
  • Poster
  • Poster
    Enregistré
  • 文章: 7
  • Thanks: 1

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 個月 1 星期 前
#3874
OK so to go forward can i use the text below as config file named RTL9210B_CG_Lite.cfg ?

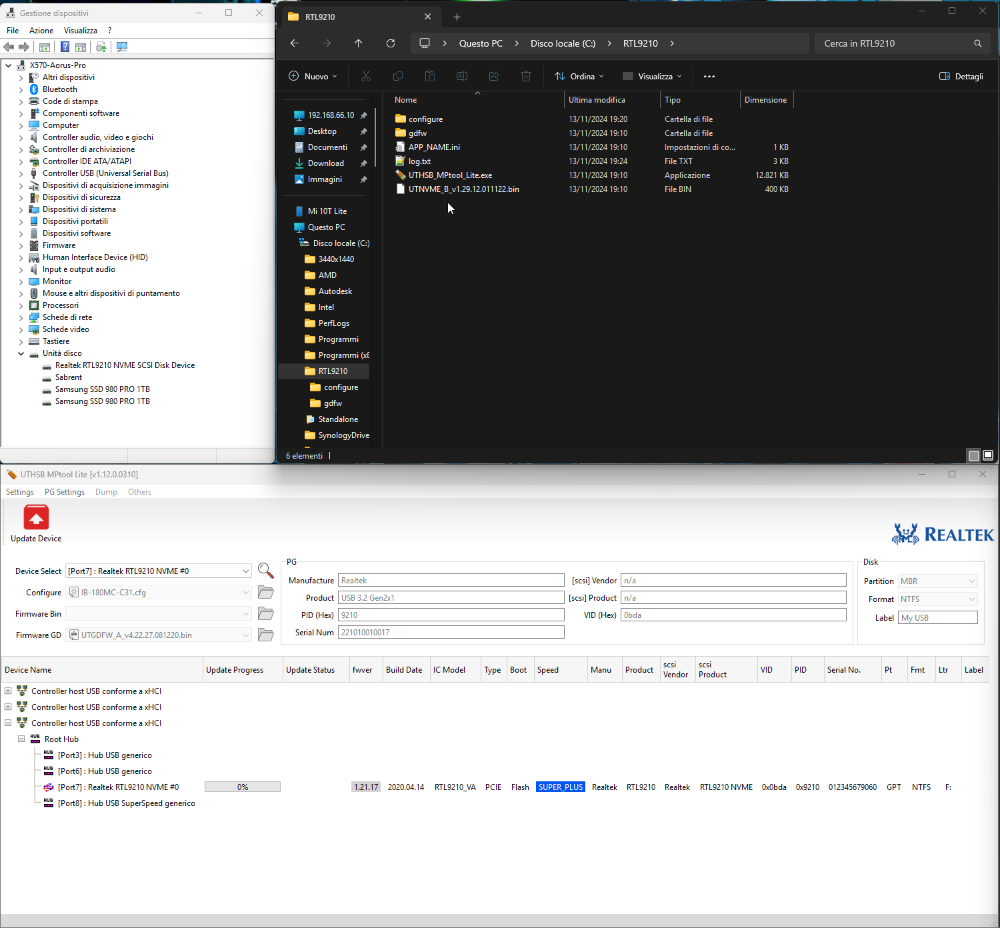

I am asking because MpTool v1.12 in the zip file leave almost everything locked
Code:
;Configure Start ;=================FW Configure================= ************************************************************** Device : [Port7] : Realtek RTL9210 NVME #0 ************************************************************** U2PHY : 02 f4 9b e0 e1  U3PHY : 02 d4 09 00 d5 00 80  VID : 0x0bda PID : 0x9210 MANUFACTURE : "Realtek" PRODUCT : "RTL9210" SERIAL : "012345679060" SCSI_PRODUCT : "RTL9210 NVME    " SCSI_VENDOR : "Realtek " DISK_HOTPLUG : 0x00 LED : 0x01 PINMUX1 : 0x00070000 PINMUX2 : 0x00000000 U2_MAXPWR : 0xfa U3_MAXPWR : 0x70 ASPMDIS : 0x00 PCIE_REFCLK : n/a DISK_IPS_THRES : n/a SWR_1_2V : n/a EN_UPS : n/a PD : n/a CUSTOMIZED_LED : n/a SUSPEND_LED_OFF : n/a FORCE_USB_SPEED : n/a FORCE_PCIE_SPEED : n/a EN_U1U2 : n/a FORCE_USB_QUIRK : n/a FORCE_PCIE_QUIRK : n/a FAN : n/a DIS_SHOW_EMPTY_DISK : n/a FORCE_SATA_NORMAL_DMA : n/a UART_DBG_PIN : n/a FINGER_PRINT_EN : n/a RM_INTERNAL_RD : n/a HS_AUTO_SWITCH : n/a FP_UART_BAUD_RATE : n/a CUSTOMIZED_DISK_IDENTIFY : n/a HW_LED_CFG : n/a CDROM_CFG : n/a SUPPORT_HID : n/a LATE_INIT_DISK : n/a SCSI_WP_PIN : n/a SD_MMC_TYPE : n/a EFUSE :         00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F        ------------------------------------------------- Boot Mode : Flash FW Ver : 1.29.12 FW Build Date : 2022.11.01 IC Pkg Type : PCIE UUID : n/a Disconn_ForceUSB2 : 0x00 ;=================Tool Configure================= ;DISCONN_FORCE_USB2 = n FORMAT_DISK = n ;INC_SERIAL = y ;PARTITION: GPT, MBR PARTITION = "MBR" ;FORMAT: NTFS, exFAT FORMAT = "NTFS" ;LABEL max allowed - characters LABEL = "My USB"


Please 登錄新增帳號 to join the conversation.

  • Laroldski
  • Laroldski 的個人頭像
  • 离线
  • Best Poster
  • Best Poster
    Enregistré
  • 文章: 59
  • Thanks: 6

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 個月 1 星期 前 - 1 個月 1 星期 前
#3875
@Blast Beat download the file from this link it is the original file that you are looking,it is the configure file for the JEYI i9GTR  www.sendspace.com/file/uhxw85

Sorry for the double post I did not mean to do that.
Last edit: 1 個月 1 星期 前 by Laroldski.

Please 登錄新增帳號 to join the conversation.

  • Blast Beat
  • Blast Beat 的個人頭像
  • 离线
  • Poster
  • Poster
    Enregistré
  • 文章: 7
  • Thanks: 1

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 個月 1 星期 前
#3880
Thnks you  Laroldski

I download the latest file for the version "A" here
Realtek RTL9210(A-B) NVMe/USB 3.1 Controller firmware Version 1.30.21.070622

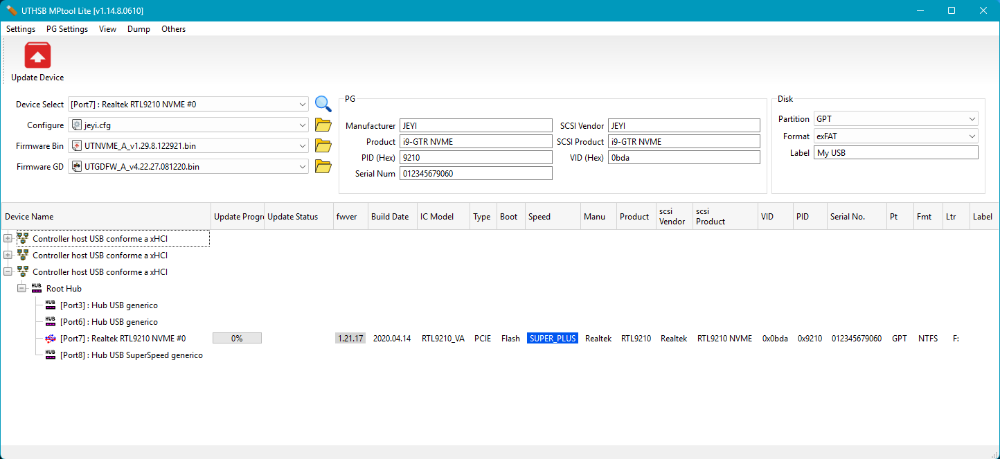

There was already in the configure folder a file named jeyi.cfg, i edit it just with my serial, than i used UTHSB MPtool Lite V1.14.8.0610 present in the main folder and full unlocked as you can see in the image attached.
From my point everything was right, i toke off the ssd, i switched off even the windows antivirus.
Few second after i started the update, i got an alert from the os (Win 11) of unknown device and few second later the flash procedure got error
I bricked my enclosure


附件:
