NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
- admin
- Topic Author
- 离线
- Admin
-
Administrateur
- 文章: 777
- Thanks: 383
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 個月 1 星期 前 - 1 個月 1 星期 前
no were you sure that it is version A otherwise here is the procedure for recovery
Check on the chipset if it is A or B
www.station-drivers.com/index.php/en/les...losures-usb-3-2-nvme
Check on the chipset if it is A or B
www.station-drivers.com/index.php/en/les...losures-usb-3-2-nvme
Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060, Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Last edit: 1 個月 1 星期 前 by admin.
Please 登錄 或 新增帳號 to join the conversation.
- Blast Beat
- 离线
- Poster
-
Enregistré
- 文章: 7
- Thanks: 1
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 個月 1 星期 前 - 1 個月 1 星期 前

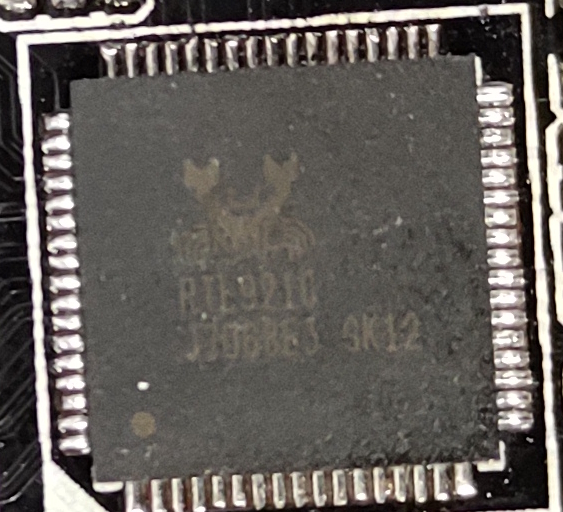

On the Chip for what i can read
RTL9210
JTU68EJ SK12
While i try the procedure for recovery can you tell me for the
UTNVME_A_v1.29.8.122921.bin
wich one is the right?
UTGDFW_A_v1.25.14.041521.bin
UTGDFW_A_v4.22.27.081220.bin
RTL9210
JTU68EJ SK12
While i try the procedure for recovery can you tell me for the
UTNVME_A_v1.29.8.122921.bin
wich one is the right?
UTGDFW_A_v1.25.14.041521.bin
UTGDFW_A_v4.22.27.081220.bin
Last edit: 1 個月 1 星期 前 by Blast Beat.
Please 登錄 或 新增帳號 to join the conversation.
- Blast Beat
- 离线
- Poster
-
Enregistré
- 文章: 7
- Thanks: 1
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 個月 1 星期 前
I wasted an entire day without success, unable to unbrick it
the chip is version A but looking for the what is written on the pcb i cam across this
www.amazon.it/wiianoxd-Adattatore-adatta...upport/dp/B0CG5JJPQH
Look like that the pcb even if it's made for the revision B got a chip revision A
Thanks anyway
the chip is version A but looking for the what is written on the pcb i cam across this
www.amazon.it/wiianoxd-Adattatore-adatta...upport/dp/B0CG5JJPQH
Look like that the pcb even if it's made for the revision B got a chip revision A
Thanks anyway
Please 登錄 或 新增帳號 to join the conversation.
- admin
- Topic Author
- 离线
- Admin
-
Administrateur
- 文章: 777
- Thanks: 383
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 個月 1 星期 前
Try one of the 2 files otherwise normally with the procedure below you can return to the default firmware to reflash it
Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060, Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Please 登錄 或 新增帳號 to join the conversation.
- Laroldski
- 离线
- Best Poster
-
Enregistré
- 文章: 59
- Thanks: 6
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 個月 1 星期 前
@Blast Beat Try touching the 2 pin's like whats shown in the picture,I think the chip say's PUA on it.
It can be tricky to do because the pins are so small get a friend or someone else to help while you try and connect the pin's,I had to use a magnifier to see what I was doing and if you hold the tweezers on the 2 pins for 7 to 10 seconds it should reset,I forget how you tell because I only had to do this twice but I think the Led starts to blink.
It can be tricky to do because the pins are so small get a friend or someone else to help while you try and connect the pin's,I had to use a magnifier to see what I was doing and if you hold the tweezers on the 2 pins for 7 to 10 seconds it should reset,I forget how you tell because I only had to do this twice but I think the Led starts to blink.
