New Firmware Realtek RTL92xx( NVMe/USB 3.1 Controller Version 1.33.44.011824

A big improvement to my Asus TUF A1 (RTL9210B) in terms of speed



I think the Writing-Performance at 1.33.7 was really bad.

Anyway  - for my opinion both values Reading/Writing are not good. Usually both should be nearly 1000 MB/s.

It depends on the nVMe disk

JustATester 写�：:

Laroldski 写�：:

JustATester 写�：:

I recently got a UnionSine NVME Enclosure, it's supposed to support USB 3.2 Gen 2x2 20Gbps (though I have no way of verifying this, as my PC supports a maximum of 10Gbps).
MPtool Lite shows it as having a RTL9220-VBB-CG, it's possible I missed it, but as of yet I haven't seen any other enclosures using this IC.



When connected to a 10Gbps USB port under Windows, it shows as SuperSpeed Plus (10Gbps) just fine (verified using both MPtool Lite and HWinfo)
Under Linux however it always shows as 5Gbps. Do you think it's possible this would be caused by firmware giving the wrong information?

I've dumped the config for anyone interested:

警告：��内容�

**************************************************************
Device : [Port8] :          UnionSine USB3.2 #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x9220
MANUFACTURE : " "
PRODUCT : "UnionSine USB3.2"
SERIAL : "012345679554"
SCSI_PRODUCT : "UnionSine USB3.2"
SCSI_VENDOR : "        "
USB_SELF_PWR : n/a
DISK_HOTPLUG : n/a
LED : 0x03
PINMUX1 : n/a
PINMUX2 : n/a
U2_MAXPWR : n/a
U3_MAXPWR : n/a
ASPMDIS : n/a
PCIE_REFCLK : n/a
DISK_IPS_THRES : n/a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x64
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : 0x00000000
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a

Boot Mode : Flash
FW Ver : 1.32.91
FW Build Date : 2023.09.05
IC Pkg Type : PCIE/SATA SD
UUID : n/a

Disconn_ForceUSB2 : false



Which Unionsine enclosure do you have,they sell 2 that look almost the same and the other is called Hiksemi and people get them mixed up,I own both that way I have 2 different looking enclosure's because I need a lot of portable storage space.

If you want the original configure file for the Unionsine and Hiksemi enclosure's linked I can email them to you if you want,I know they both have boards that are a bit different and they each use a different configure file,I know the Unionsine's that I got were still using the old version of the board with the last's ones I got and the led light won't work right if the wrong configure file isn't used.

I noticed as well that when I flashed my RTL9210 controllers with new firmware it would say Golden onetime and something else the next and still perform at the same speed,I have updated mine about 4 or 5 times as the newer firmware came out.

www.aliexpress.com/item/1005005057195255...arch%7Cquery_from%3A

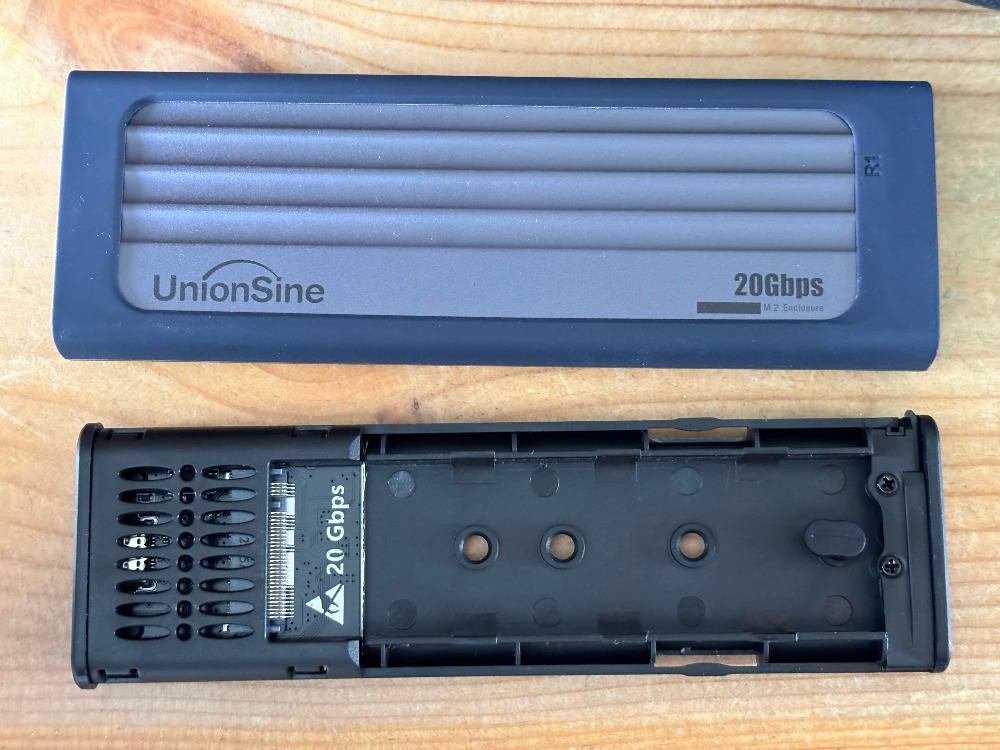

This one , the 20 Gbps option - it seems quite nice outside of the weird speed issue on Linux and is completely toolless, it doesn't mention in the description at all, but it came with a (manual says graphene, though I'm not sure it is) thermal pad too.

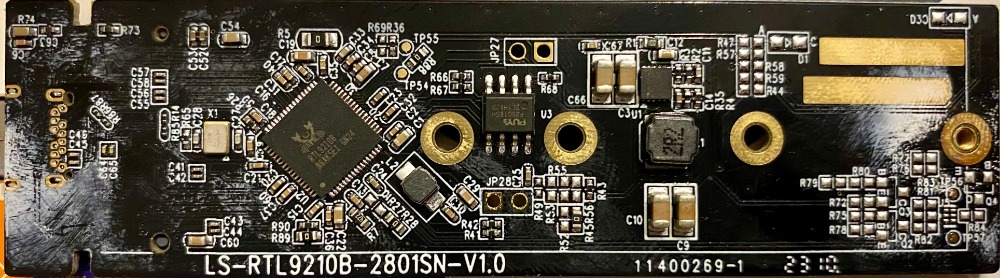

I realised the board was just held in with clips and easy to take out/put back in, so here's a picture of the side of the board with the Realtek chip too for anyone interested:

A few of the packages here had the firmware GD file for RTL9220 chips, but I've not been able to find any actual firmware bin files available for it.

Sorry, I can't reply at the topic before:

@JustATester:
Have you alreday found a firmware for this enclosure (RTL9220)?

Hi,
Maybe someone will be interested – Qoltec NV2270 Model: 52270M.2 STAT/NVMe enclosure

*NOTE: This white paste all around PCB isn’t just this exact unit issue, but local distributor confirmed that everything what they have on their warehouse looks like this.

Anyway, the most interesting is firmware:
FW Ver : 9.29.33
FW Build Date : 2022.04.21
All firmware available here are starting from 1.xx.xx, so I’m wondering how different is this 9.xx.xx one? Could be safely updated with 1.33.44.011824?

BTW: Full dump below:

**************************************************************
Device : [Port4] : Realtek RTL9210B-CG #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "Realtek"
PRODUCT : "RTL9210B-CG"
SERIAL : "012345678934"
SCSI_PRODUCT : "RTL9210B-CG     "
SCSI_VENDOR : "Realtek "
USB_SELF_PWR : n/a
DISK_HOTPLUG : 0x00
LED : 0x03
PINMUX1 : 0x00000000
PINMUX2 : 0x00000000
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x70
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x03
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 0c 01 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a

Boot Mode : Flash
FW Ver : 9.29.33
FW Build Date : 2022.04.21
IC Pkg Type : PCIE/SATA

UUID : n/aDisconn_ForceUSB2 : false
