Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

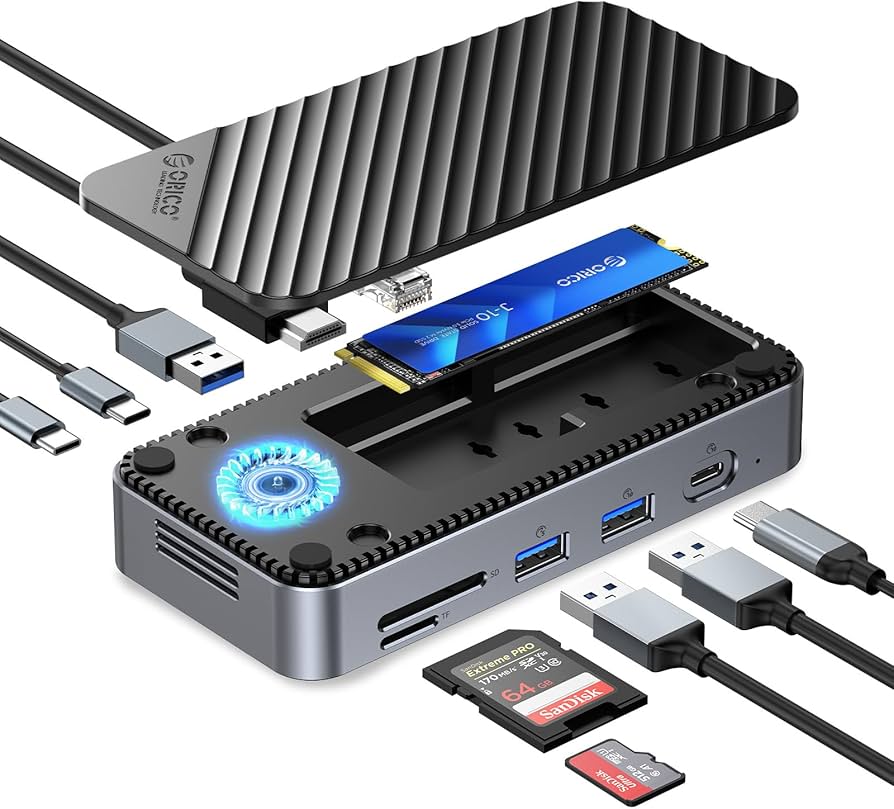

3 hours 14 minutes ago - 3 hours 7 minutes agoI have an ORICO-DPM2P9-V1 docking station. While updating the firmware, I forgot to back up the original configuration. Now the device gets very hot and the fan is constantly running at high speed. If anyone who owns this device could kindly provide the original configuration file, I would be extremely grateful.
Any help would be greatly appreciated!
Last edit: 3 hours 7 minutes ago by admin.
Please Log in or Create an account to join the conversation.
- admin
-
Topic Author
- Away
- Admin
-
Administrateur
- Posts: 331
- Thanks: 122
- Laroldski
-
- Offline
- Big Poster
-
Enregistré
- Posts: 54
- Thanks: 12
- Shonk
-
- Offline
- Big Poster
-
Enregistré
- Posts: 80
- Thanks: 32
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 hour 37 minutes ago
I picked up a BENFEI RTL9210B with super capacitor yesterday
here's the config for it just incase anyone ever needs it
here's the config for it just incase anyone ever needs it
Code:
**************************************************************
Device : [Port18] : Realtek RTL9210 NVME #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "Realtek"
PRODUCT : "RTL9210"
SERIAL : "012345678914"
SCSI_PRODUCT : "RTL9210 NVME "
SCSI_VENDOR : "Realtek "
USB_SELF_PWR : n/a
DISK_HOTPLUG : n/a
LED : 0x02
PINMUX1 : n/a
PINMUX2 : n/a
U2_MAXPWR : 0xfa
U3_MAXPWR : 0x70
ASPMDIS : 0x00
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x01
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 07 02 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : 0x01
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : 0x01
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : 0x01
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : 0x0000000000010000
PERIPH_API : n/a
RAID_CFG : n/a
Boot Mode : Flash
FW Ver : 1.33.81
FW Build Date : 2024.06.17
IC Pkg Type : PCIE
UUID : n/a
Disconn_ForceUSB2 : false
